27
Electrical
Electrical

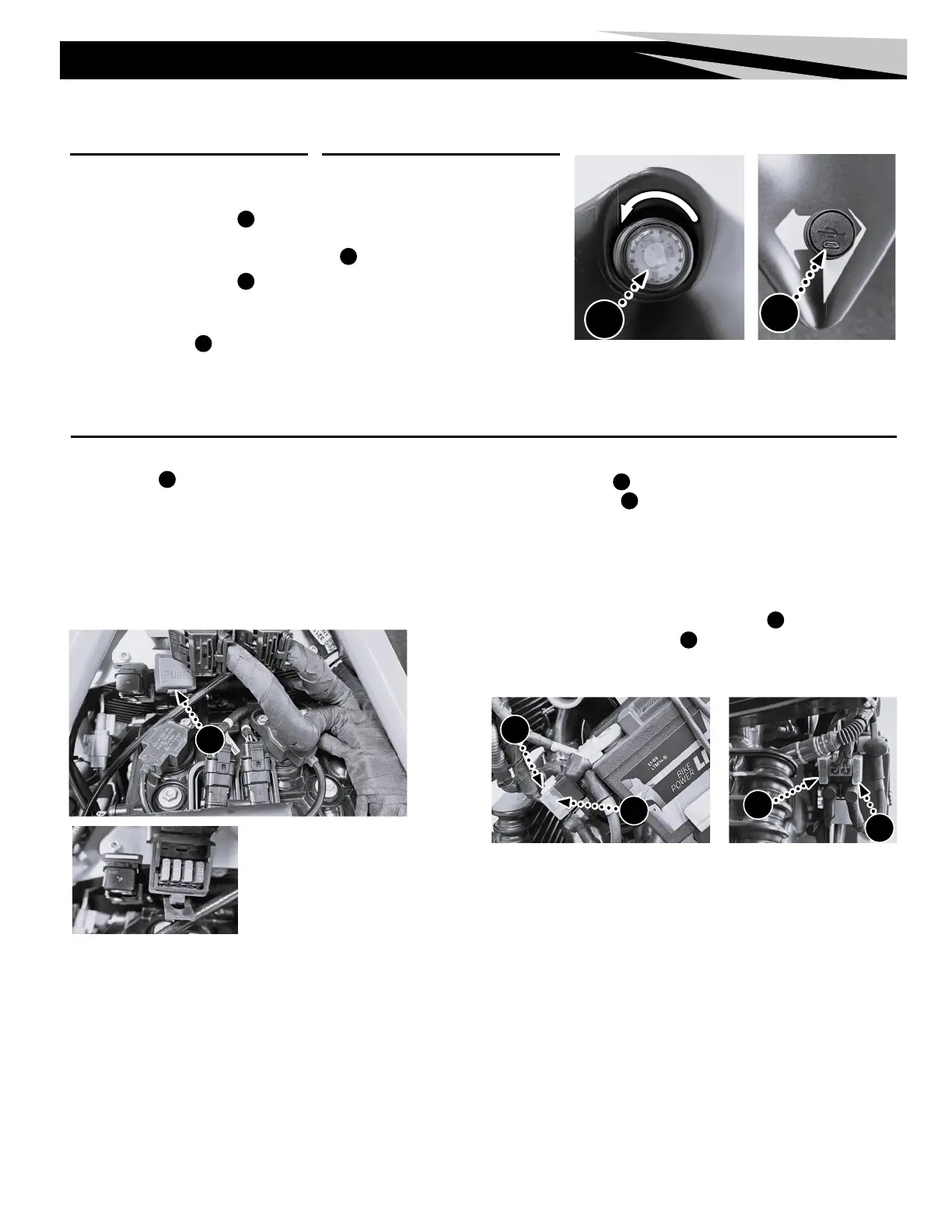

Tail light Operation
Switching On
1. Press and hold the tail light lens
A
to power
on.
Switching Off
2. Press and hold the tail light lens
A
until it
powers off.
Changing Modes
3. Press the tail light lens
A
brie y to select
one of the light modes— quick ashing, slow
ashing, and constant on.
Charging the Tail light
1. Rotate tail light bezel counterclockwise to
remove the tail light from the mount.
2. Plug a the mini-USB cable into the connector
B
to charge for a couple hours. Do not
overcharge.
3. Install by placing the tail light in position and
rotating it clockwise.
A
B
Fuses
• The Fuse Box
C
is located on the left side of the motorcycle, above the
battery. It contains one 10 A fuse, one 2 A fuse, two 5 A fuses plus space for
two spare fuses.
Fuse 1 - 5A DASH-ACQ
Fuse 2 - 5A Lambda
Fuse 3 - 2A Clamp 30 Bat.+
Fuse 4 - 10A ECU
• The 30 A main fuse
D
is located on the left side of the battery including a
30 A replacement fuse
E
.
Changing fuse
1. Turn off power/ignition switch.
2. Remove the left side fairing
[See pg. 15].
3. The main fuse is located under the front dust cap at
D
. A spare fuse is
located under the rear dust cap at
E
.
4. Replace faulty fuse, place dust caps in place, and reinstall the left side fairing.
Fuse Box with Cover open
Main and spare fuse
D
D
E
C
E
