Usage and Setup
Raising the Motorcycle on Lift Stands
NOTE: Park the motorcycle on a level, rm surface.
Lifting the rear (always raise rear rst)
1. The motorcycle is equipped with lifting spools
C
. Insert the lift stand
into the groove of the lifting spools.
2. Press down on the rear handle of the stand raising the rear of the
motorcycle.
Lifting the front
The motorcycle is equipped to lift the front with a two-pin stand
and also with a head-lift stand.
• Two-pin stand
1. Position the pins of the two-pin stand right under the fork legs. The
holding xtures
D
are placed in the middle between the pinch bolts
one each side. Make sure the pins t into their holding xtures before
lifting.
2. Press down on the front handle of the stand, raising the front of the
motorcycle.
• Head-lift stand
1. Position the pin of the lift stand into the hole on the lower triple clamp
E
of the front forks.
2. Press down on the front handle of the stand, raising the front of the
motorcycle.
Transporting / Loading
NOTE: Use wheel chock to stabilize front wheel.
Recommended Tie-Down Points
1. FRONT: Attach a soft-tie loop straps on the lower triple tree
(examplary shown in the pictures). Lead the loop forward out the lower
front fairing
A
attaching to the tie-down straps secured to a solid
mounting point in the transport vehicle.
• Use one on each side of the motorcycle.
• Tighten straps enough to tension the front forks partially, being
careful that the forks are not compressed completely.
2. REAR: Attach a tie-down strap around the rear swingarm
B
and
tighten the strap sideward.
CAUTION!
Don’t park the motorcycle in
direct sun.
The windshield can amplify the sun’s
radiant heat.
C
A
B
E
D
E
D

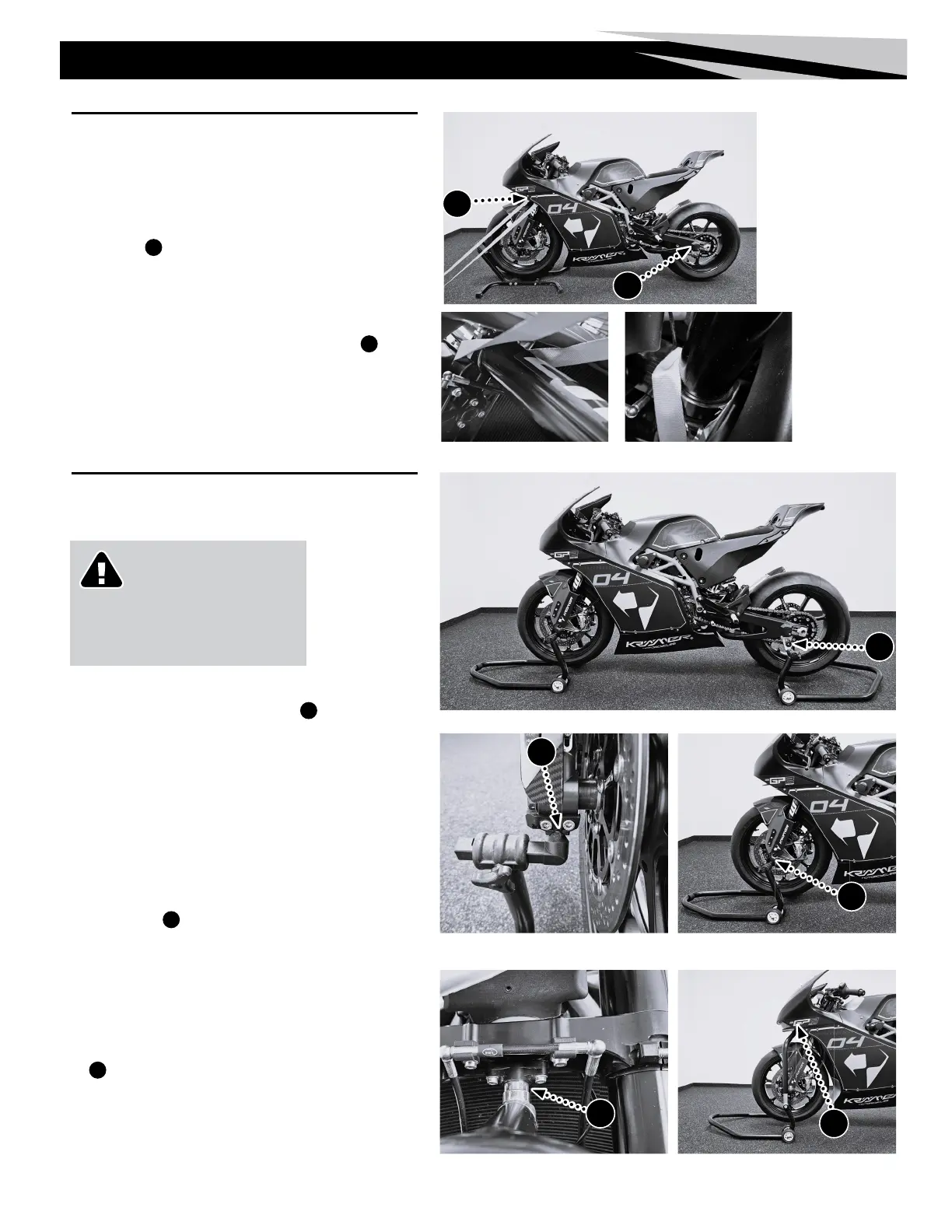

Positioning of two-pin Stand
Positioning of head-lift stand
