35
Dashboard
Counters
Management
Counters
GPS & Tracks
GPS & Tracks
MXS series dash logger receives data on the racetrack
from the AIM GPS09 Module. This module assists in the
calculation of Lap Time, Speed, and Predictive Lap Time. The
system needs to know the current racetrack’s start/nish
line coordinates. MX Strada series comes with a long list of
tracks, constantly updated and loaded to your PC when you
run Race Studio 3 software, and a connection to the Internet
is available.
Four user odometers are displayed.
User 1 – User 4, plus a non-resettable System Odometer. All
odometers are shown on the conguration software Race
Studio 3 too.
Each odometer can be activated/deactivated and/or reset. To
manage an odometer select it and press “CHANGE”.

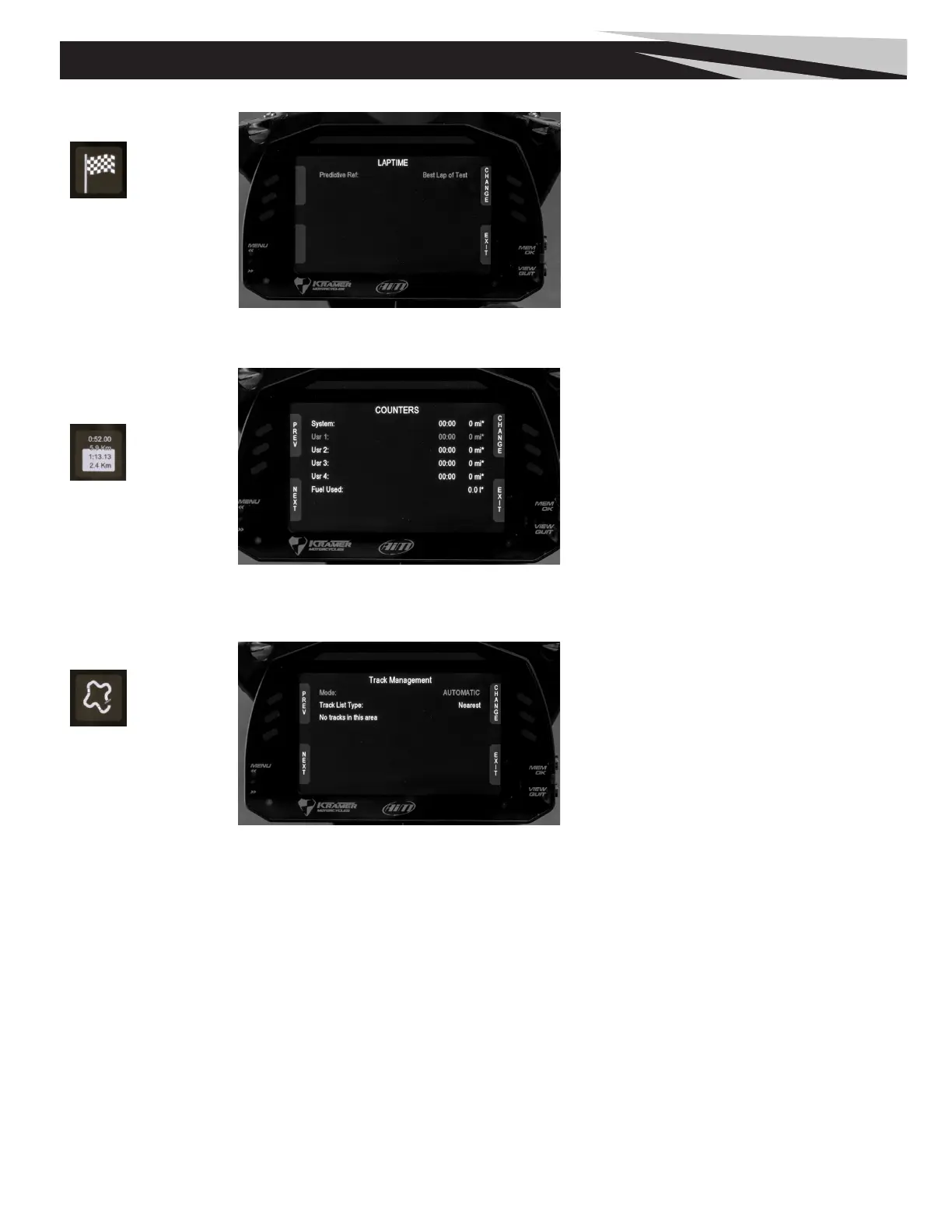

Lap Time Setup
Lap Time Setup
The Lap Time Predictive Reference is selected on this page.
• Best Lap of Test
• Best Lap of Today
• Previous Lap
The MXS 1.3 dash logger series provides two track selection
modes: automatic and manual.
Automatic:
The dash logger automatically recognizes the racetrack you
are riding on, loads the start/nish line and the possible
splits coordinates, and calculates lap and split times without
an optical/magnetic receiver. In most cases, this is the best
mode.
Manual:
Manually select the track from the internal database. This
mode is preferred when multiple track congurations are
available nearby. In this case, the dash logger recognizes the
racetrack but will need at least one complete track lap to
synchronize.
You can scroll the list of available racetracks choosing among
these options:
• Nearest: shows only tracks in a 10 km distance.
• All: shows all tracks stored in the system in alphabetical
order.
• Custom: shows only the tracks you have previously created.
