e. Click Add. The command is added to the Macro Commands sequence.
7. Click Save Macro.
8. If required, click Execute to test the Macro.
A Macro is saved to the Macro Name list.
Sending RS-232/IR commands
You can manually send single RS-232 or IR commands to specific decoder endpoints within
the system.
To send single RS-232 or IR commands:
1. In the Menu tabs, select Settings. The Group page appears.
2. Click RS232/IR. The RS232/IR page appears.

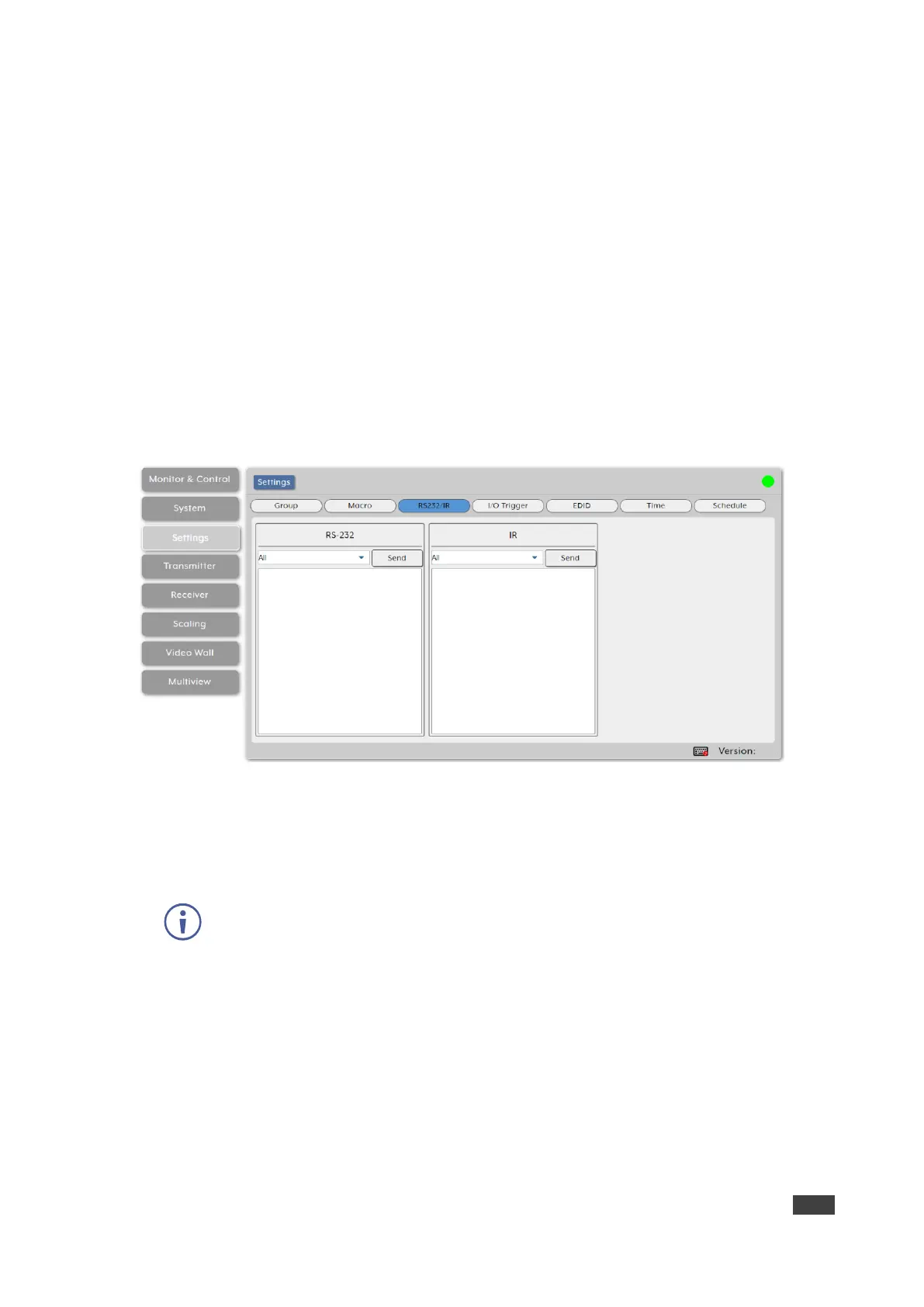

Figure 24: Settings Tab – RS232/IR Page
3. For RS-232:
a. Select the command target from the drop-down box.
b. Enter or copy the command to the empty area below RS-232.
To transmit hex data, each ASCII hex pair (octet) must be preceded by “\x”. For
example, a carriage return would be “\x0D”.
c. Click Send to send the command immediately.
4. For IR:
a. Select the command target from the drop-down box.
b. Enter or copy the command to the empty area below IR.
c. Click Send to send the command immediately.
RS-232/IR command is sent.
