SL-280 – Remote Operation via the Web Pages
15
Configuring I/O Ports
SL-280 web pages enable you to configure each of the I/O ports . The I/O ports control
devices such as sensors, door locks, audio volume and lighting control devices.
To configure an I/O port:
1. Click GPIO Ports Settings on the left side of the web page (Figure 5
).
The GPIO Ports Settings page appears.

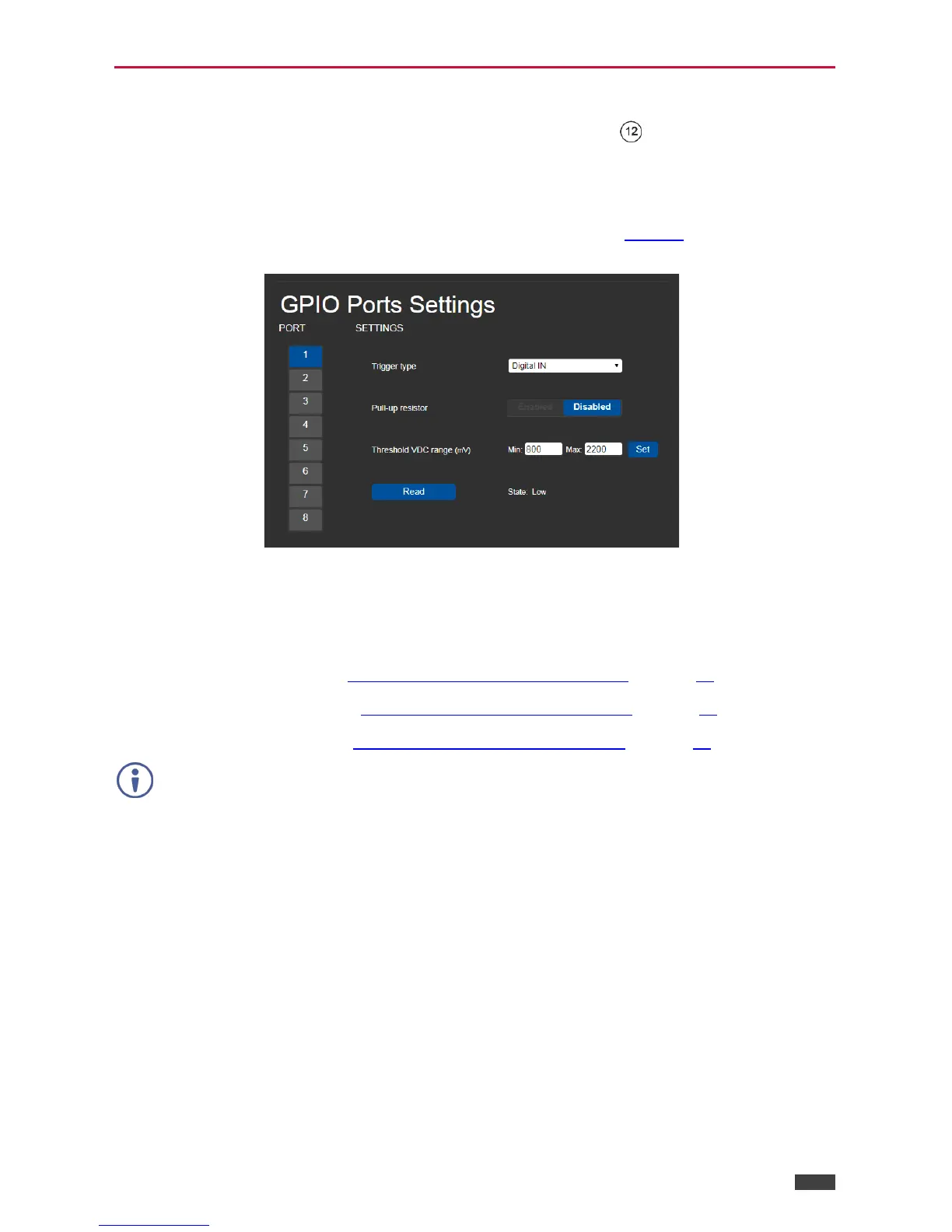

Figure 10: GPIO Ports Settings Page – Digital IN Trigger Type
2. In the Port area, click the number (1–8) of the port to be configured.
3. In the Settings area, select one of the following from the Trigger type option box:
• Digital Input (see Configuring a Digital Input Trigger Type on page 16
)
• Digital Output (see Configuring a Digital Out Trigger Type on page 17)
• Analog Input (see Configuring an Analog In Trigger Type on page 18)
The settings
available on the page, change depend on which trigger type is selected.
