Kramer VP-550X User Manual

Kramer Electronics Ltd.
VP-550X - Connecting VP-550X
8
Connecting the Output to a Balanced/Unbalanced
Stereo Audio Acceptor

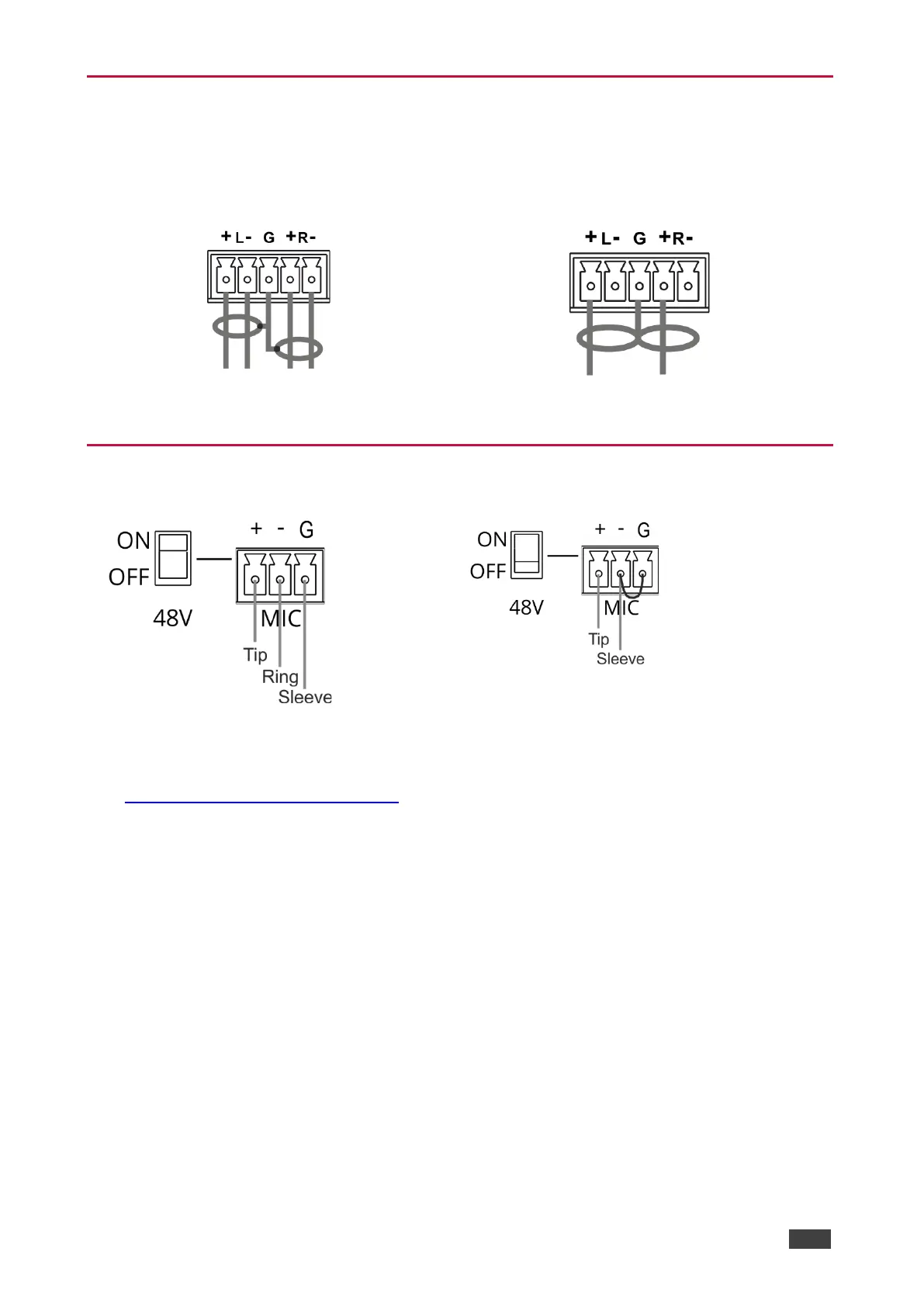

The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:
Figure 4: Connecting to a Balanced Stereo Audio
Acceptor
Figure 5: Connecting to an Unbalanced Stereo Audio
Acceptor
Microphone Setup
Condenser Microphone Pinout
Dynamic Microphone Pinout
Figure 6: Condenser Microphone Pinout
Figure 7: Dynamic Microphone Pinout
For optimum range and performance use the recommended Kramer cables available at
www.kramerav.com/product/VP-550X.
