Kramer VP-550X User Manual

Kramer Electronics Ltd.
VP-550X - Defining VP-550X 4K Presentation Switcher/Scaler
4
Defining VP-550X 4K
Presentation Switcher/Scaler
This section defines the VP-550X front and back panels.

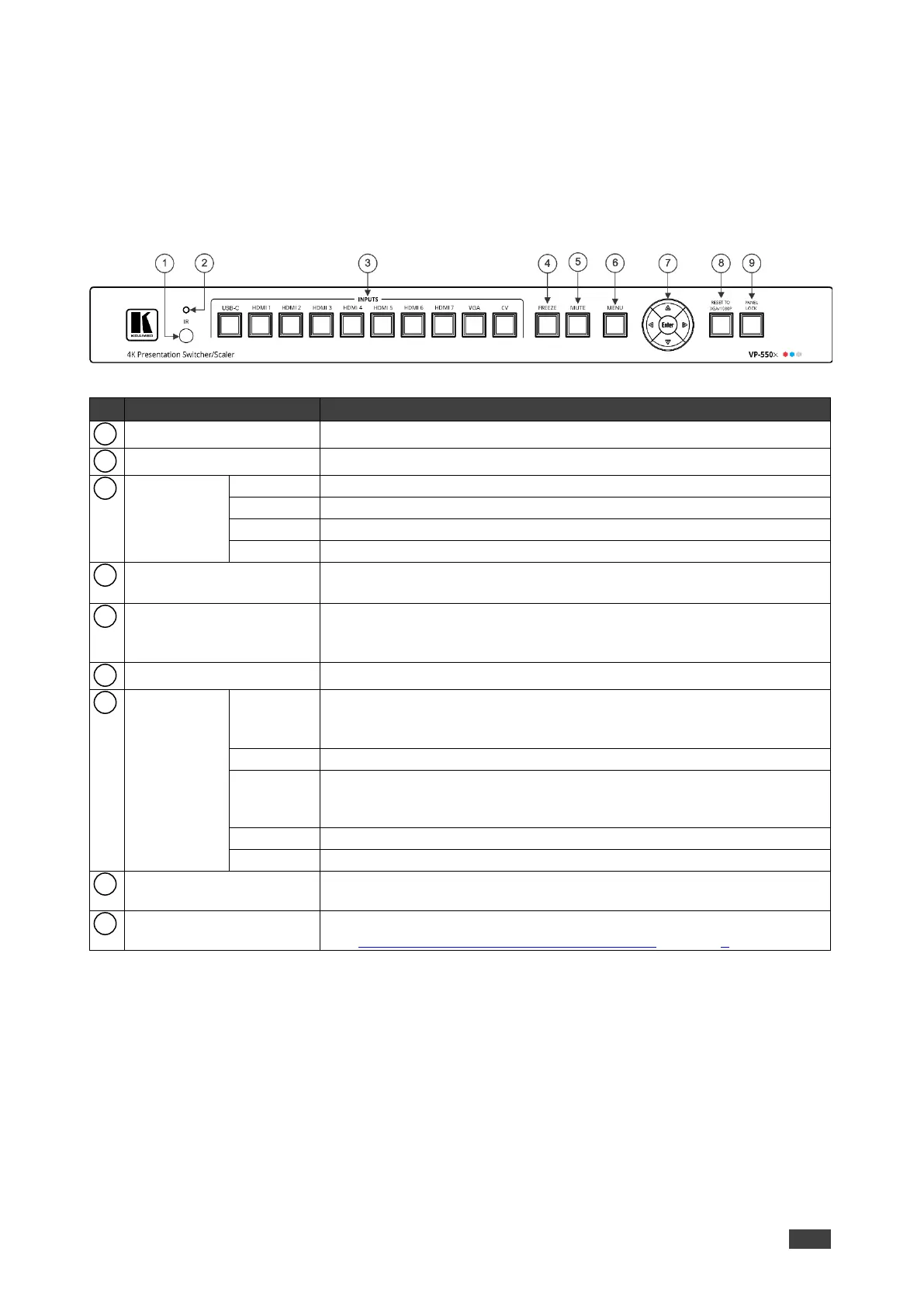

Figure 1: VP-550X 4K Presentation Switcher/Scaler Front Panel
#
Feature
Function
IR Receiver
Receives signals from the remote-control transmitter.
IR LED
Lights when the unit accepts IR remote commands.
Input Selector
Buttons
USB-C
Press to select a USB-C source.
HDMI
Press to select the HDMI input (from HDMI 1 to HDMI 7).
VGA
Press to select the computer graphics input.
CV
Press to select the composite video input.
FREEZE Button
Press to freeze/unfreeze the output video image.
Not applicable when in video bypass mode.
MUTE Button
Press to toggle between muting (blocking out the sound) and enabling
the audio output.
Muting the audio is not applicable when in audio bypass mode.
MENU Button
Press to enter/escape the on-screen display (OSD) menu.
Navigation
Buttons

Press to decrease numerical values or select from several definitions.
When not within the OSD menu mode, press to decrease the output
volume.

Press to move up the menu list.

Press to increase numerical values or select from several definitions.
When not within the OSD menu mode, press to increase the output
volume.

Press to move down the menu list.
ENTER
Press to accept changes and change the SETUP parameters.
RESET TO XGA/1080p
Button
Press and hold for about 5 seconds to toggle resetting the video
resolution to XGA or 1080p.
PANEL LOCK Button
Press and hold for about 3 seconds to lock/unlock the front panel buttons
(see Locking and Unlocking Front Panel Buttons on page 9).
1
2
3
4
5
6
7
8
9
