Always switch off the power to each device before connecting it to your VS-42H2. After
connecting your VS-42H2, connect its power and then switch on the power to each device.

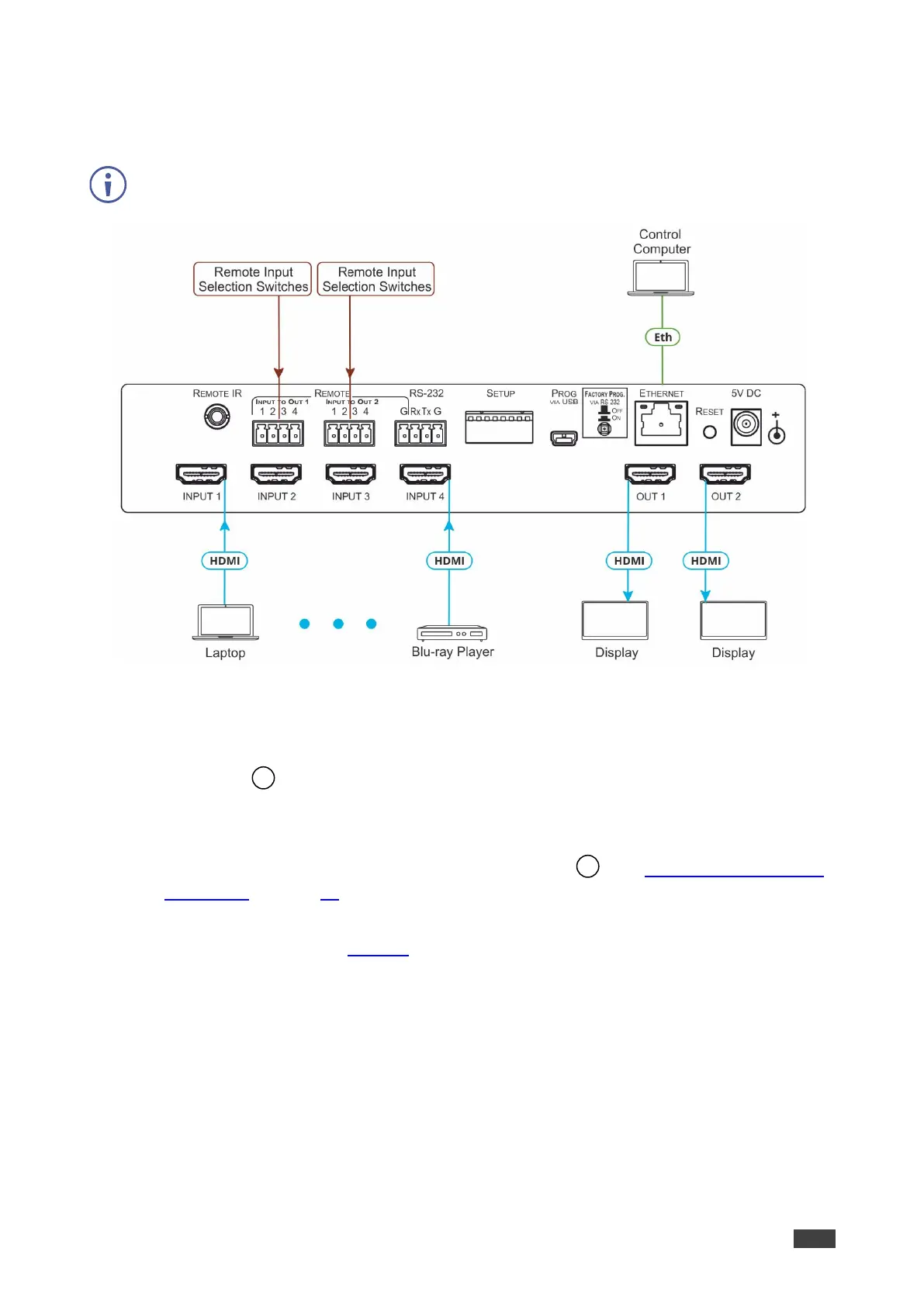

Figure 3: Connecting to the VS-42H2 Rear Panel
To connect the VS-42H2 as illustrated in the example in Figure 3:
1. Connect up to four HDMI sources, (for example, Blu-ray players) to the HDMI Input
connectors .
2. Connect the two OUT HDMI connectors to up to two HDMI acceptors, (for example, LCD
displays with built-in speakers).
3. If required, connect a PC/controller to the RS-232 port (see Connecting to VS-42H2
via RS-232 on page 10).
4. Connect the power adapter to the device and plug the power adapter into the mains
electricity (not shown in Figure 3).
5. If required, acquire the EDID.
