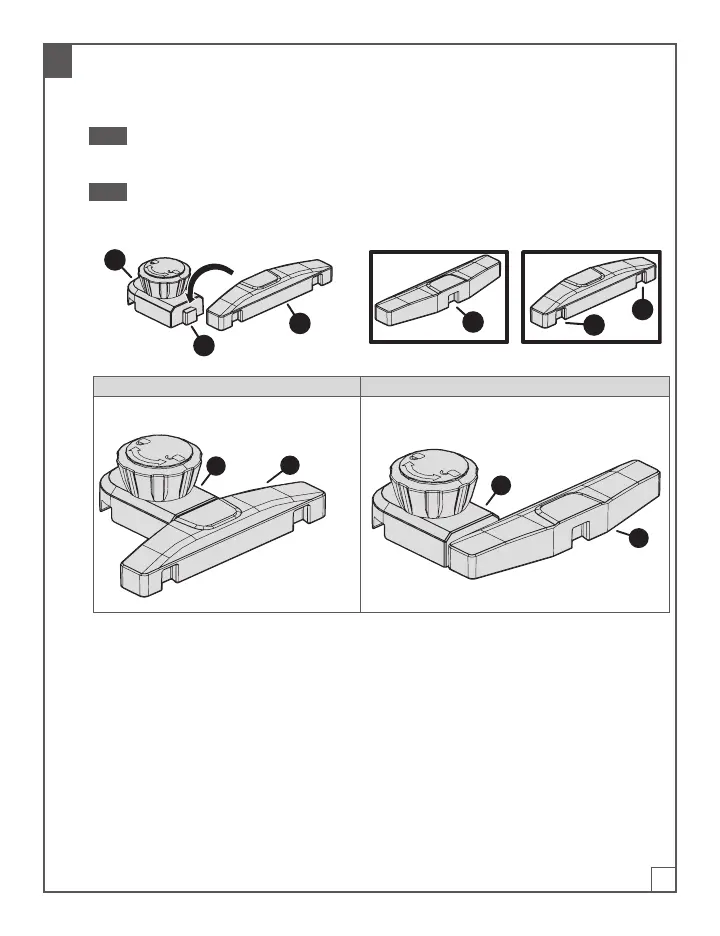

Attach the Adjustable Stop Arm to the Adjustable Stop Base
Slide a notch in the adjustable stop arm (F) down over the tab (1) on the adjustable stop
base (H) until the adjustable stop arm (F) is fully seated on the tab (1).
Note The adjustable stop arm (F) has three notches: a center notch (2) on one side and two
outer notches (3, 4) on the opposite side. Use the appropriate notch depending on how you
want to congure the adjustable stop.
Note To change the conguration of the adjustable stop, lift the adjustable stop arm (F) off
the adjustable stop base (H). Then slide a different notch of the adjustable stop arm (F) over
the tab (1) on the adjustable stop base (H).
1
F
H
2
3
4
Centered Conguration Side Conguration
Use the arm’s center notch(2)
F
H
F
H
Use either of the arm’s outer notches (3,4), so that the
arm (F) extends to one side of the base (H)
F
H
F
H
