Kreg KPHA750 - Assembly: Adjustable Stop; Assemble the Adjustable Stop Base

10
Assembly: Adjustable Stop
The docking station includes an adjustable stop that can be attached to either material support
wing. The adjustable stop makes it easy to achieve repeatable results when you have many pieces
that require the same pocket-hole spacing.
Note The adjustable stop has two parts: the adjustable stop base, which you will assemble
in step1; and the adjustable stop arm, which can be attached to the adjustable stop base in
different congurations (see step2).
1

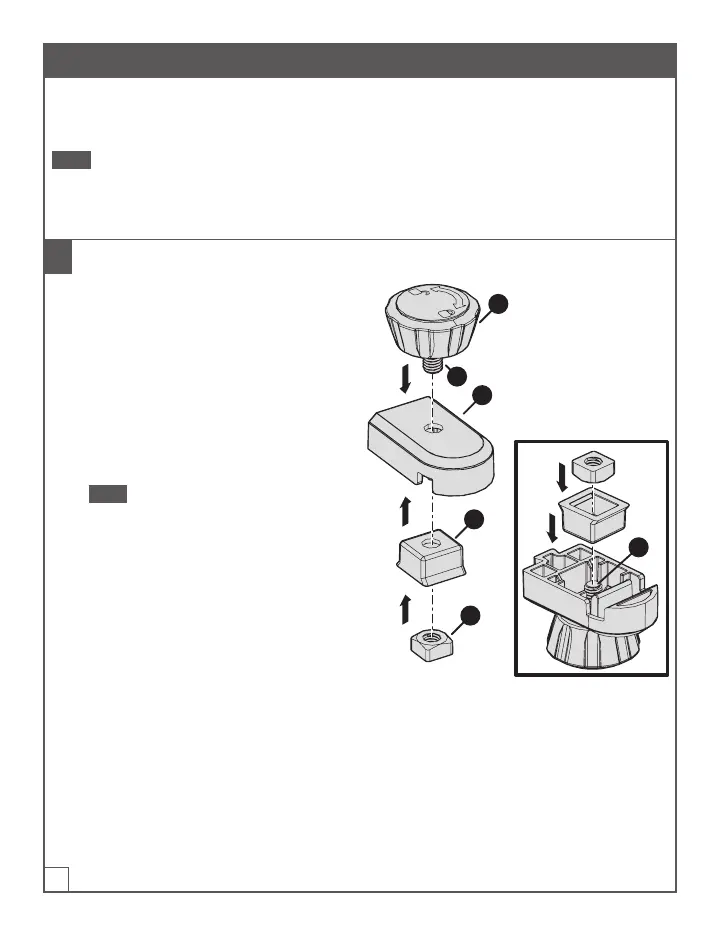

Assemble the Adjustable Stop Base
a. Insert the screw (1) of the adjustable
stop knob (G) into the hole on top of the
adjustable stop base (H).
b. Holding the adjustable stop knob (G) in
position, turn the adjustable stop base
(H) upside down so that the screw (1)
extends upward.
c. Drop the adjustable stop base wedge (I)
onto the screw (1) with the anged side
of the adjustable stop base wedge (I)
facing up.
Note The adjustable stop base wedge(I)
should sit ush with the adjustable stop
base (H). If it does not sit ush, rotate
the adjustable stop base wedge (I)
90degrees.
d. Place the adjustable stop square nut
(J) onto the screw (1); then rotate
the adjustable stop knob (G) until
the adjustable stop square nut (J) is
nger-tight.
G
H
1
I
1
J
