Operation - Using the Adjustable Stop
The adjustable stop enables you to drill pocket holes on similar workpieces at a faster pace.
Note The adjustable stop requires assembly. See Assembly: Adjustable Stop on page10.
1
Set Up the Adjustable Stop
If necessary, change the conguration of the adjustable stop to accommodate the size and
orientation of your workpiece in the jig:
■ Wide workpiece: If the workpiece is wide enough to extend onto the top of a material
support wing (E), use the adjustable stop (1) in its centered conguration.
■ Narrow workpiece: If the workpiece does not extend across the gap between the jig
and the material support wing (E), use the adjustable stop(1) in a side conguration.
Note For a side conguration, use whichever outer notch in the adjustable stop arm will be
farther from the jig after you place the adjustable stop (1) onto a material support wing (E).
Note For instructions on changing the conguration, seeAttach the Adjustable Stop Arm
to the Adjustable Stop Base on page11.
E
1
1
E

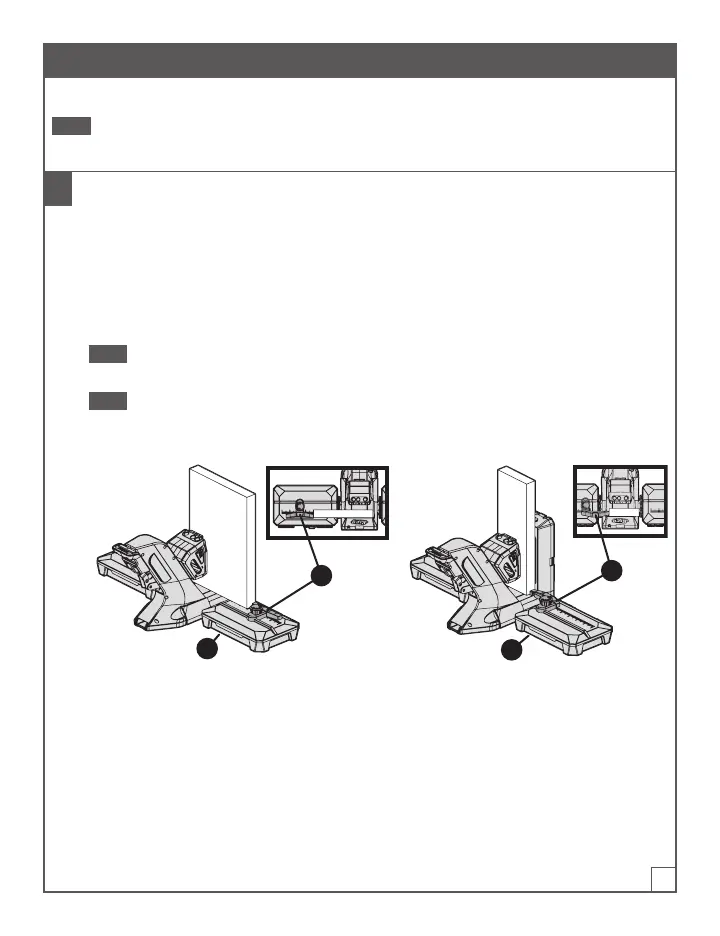

Adjustable stop (1) in centered conguration for
wide workpiece
Adjustable stop (1) in side conguration for
narrow workpiece
