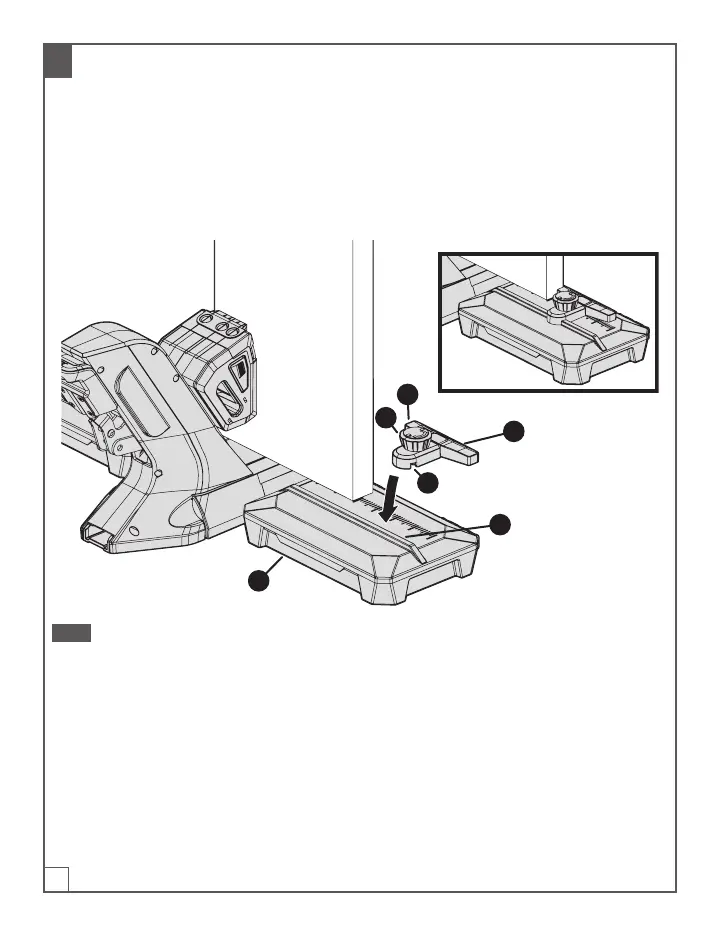

Place the Adjustable Stop in Position
a. With the adjustable stop (1) congured the way you want it, place the adjustable stop (1)
onto the lid of a material support wing (E) so that:
■ The edge of the adjustable stop arm (F) rests snugly against the workpiece.
■ The notch (2) on the underside of the adjustable stop base ts over the rail (3) that runs
across the lid of the material support wing (E).
b. Rotate the adjustable stop knob (G) clockwise until tight to secure the adjustable stop (1) in
position.
E
3
F
G
2
1
Note To reposition or remove the adjustable stop (1), rotate the adjustable stop knob (G)
counterclockwise to loosen it. Then slide the adjustable stop (1) to a new position along the rail (3)
or lift it off of the material support wing (E).
