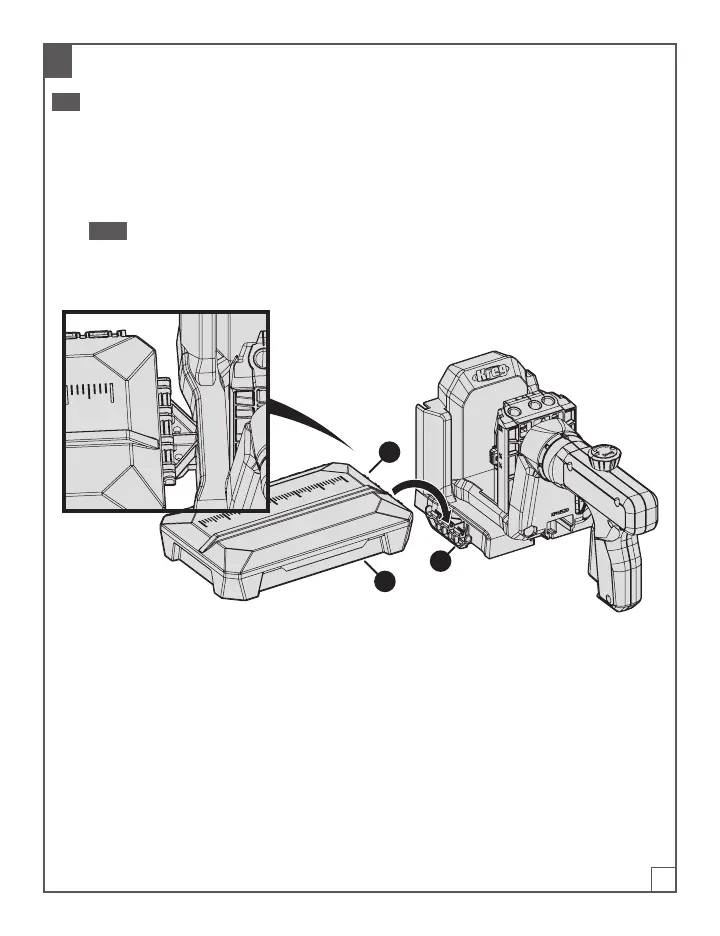

Connect the Material Support Wings to the Dock Base
Tip The material support wings also serve as storage boxes.
a. Hold a material support wing (E) right-side up (so that the lid of the storage box is facing up
and opens away from you).
b. Align the connector (1) on the side of the material support wing (E) with the connector (2) on
the side of the dock base; then press the material support wing (E) down rmly so that the
connectors snap together.
Note The bars on the material-support-wing connector (1) snap into the grooves on the
dock-base connector (2).
c. Repeat these steps to connect the other material support wing (E) to the connector (2) on the
opposite side of the dock base.
E
1
2
