8
2

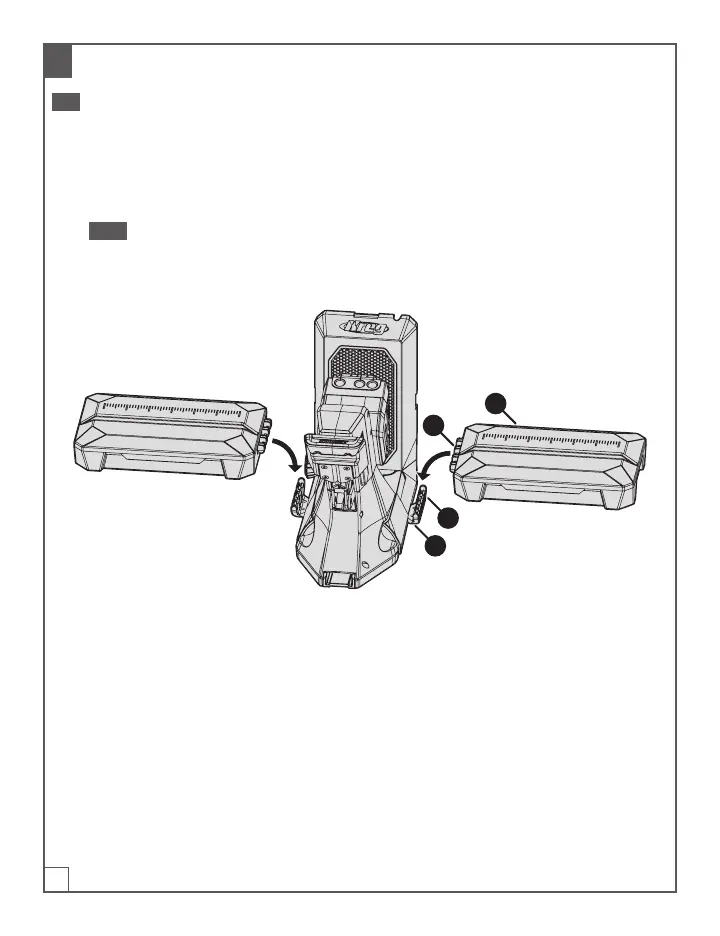

Connect the Material Support Wings to the Dock Adapters
Tip The material support wings also serve as storage boxes.
a. Hold a material support wing (E) right-side up (so that the lid of the storage box is facing up
and opens away from you).
b. Align the connector (1) on the side of the material support wing (E) with the connector (2) on
the dock adapter (D) that extends from the side of the jig; then press the material support
wing (E) down rmly so that the connectors snap together.
Note The bars on the material-support-wing connector (1) snap into the grooves on the
dock-adapter connector (2).
c. Repeat these steps to connect the other material support wing (E) to the dock adapter (D) on
the opposite side of the jig.
E
1
2
D
To Next Page
