Maintenance
86
Pos: 29.1 /Übersc hriften/Übersc hriften 2/A-E/Druc kspeicher @ 38\mod_1265 705629261_78. docx @ 34923 6@ @ 1
10.15 Accumulator (optional)
Pos: 29.2 /BA/Sich erheit/Hydra ulik/Gefahr Unter hohem Druc ks tehende Flüssi gkeiten. @ 38\ mod_126580 8735198_78.doc x@ 349461 @ @ 1
DANGER! – Liquids under high pressure.
Liquids penetrate the skin and cause serious injuries.
• Repair work on the hydraulic system may be performed by specialist workshops only.
Pos: 29.3 /BA/W artung/Druc kspeicher/GEFAHR! – Vorgespan nte Energiespeic her (Feder, Dru ckspeicher, H ydraulikzylinder). @ 38\mod_ 1265808828870 _78.docx @ 349 485 @ @ 1
DANGER! – Pretensioned energy stores (spring, accumulator, hydraulic cylinder).
Death or serious injuries.
Before working on the system, release the oil pressure.
Pos: 29.4 /BA/W artung/Druc kspeicher/Drucksp eicher Bild EC 2801 / EC 3201 @ 38\mod_1265 809544605_7 8.docx @ 3495 60@ 1 @ 1

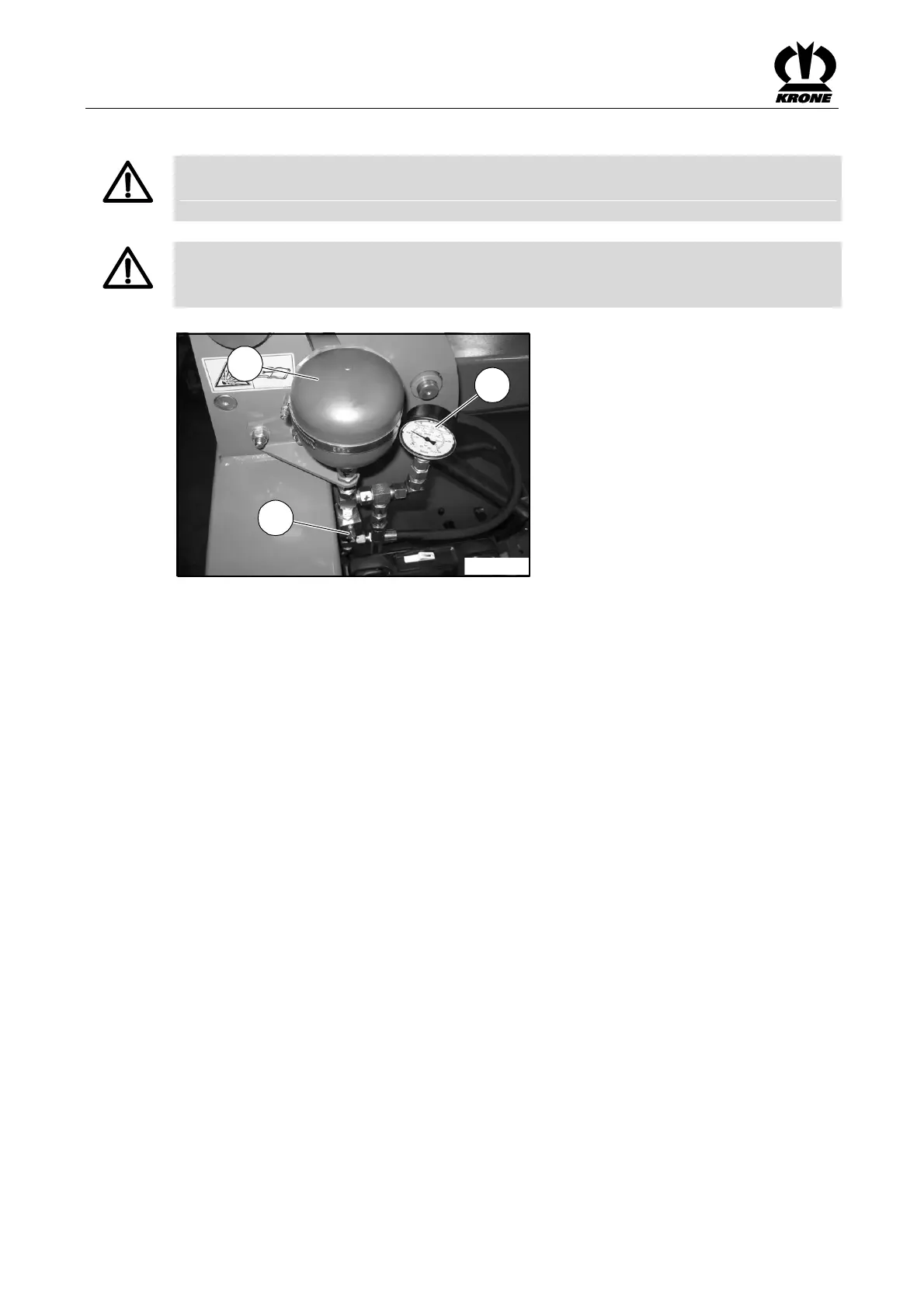

1
EC-309-0
2
3
Fig.55
Pos: 29.5 /BA/W artung/Druc kspeicher/keine mechanischen Bearbeitungen Sc hweiß- Lötarb eiten vornehm en@ 38\mod_12 65808920745 _78.docx @ 34 9509 @ 2 @ 1
Do not perform any welding or soldering work or any mechanical processing on the accumulator
(1). The accumulator (1) is filled with nitrogen.
Pos: 29.6 /BA/W artung/Druc kspeicher/Drucksp eicher Einführt ext @ 38\mod_1 265809824433_7 8.docx @ 34 9584 @ @ 1
The amount of pressure in the accumulator (1) specifies the time sequence for lifting of the
mowing unit and subsequent raising of the machine into the transport position. Therefore, a
certain pressure must be set depending on the machine type (see table below). The pressure
can be read off on the pressure gauge (2).
