8.7 Adjusting the Rear Swath Cloth (Swadro 907)
a
a
1
2
SW9070027_1

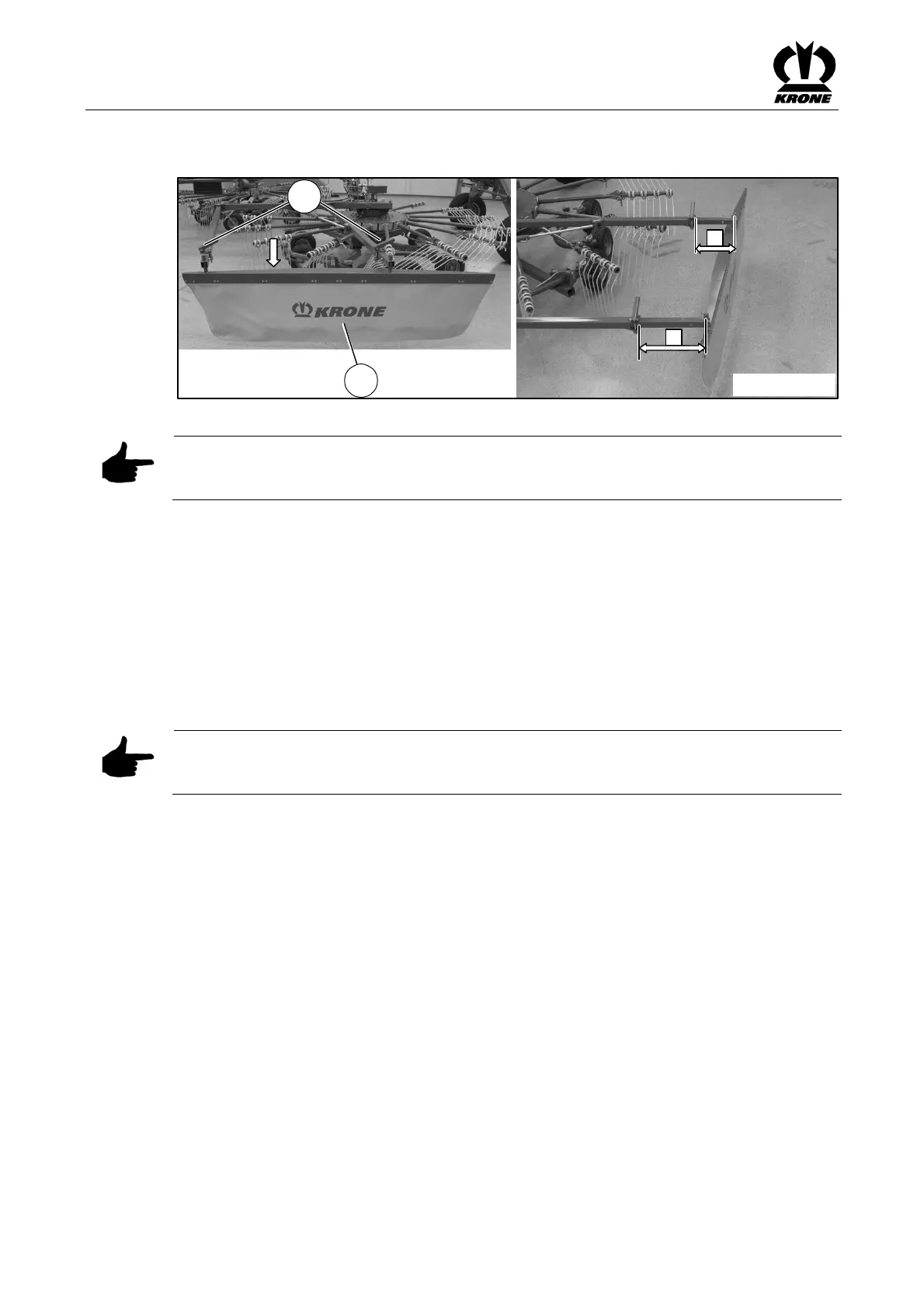

Fig. 18
Pos: 20.15.2 /B A/Bedienung /Sc hwader/Schwad tuch/Schwadfor mer/Schwadtuc h allgemein @ 2 \mod_1202830 085935_78.doc @ 61884
Note
The swath cloth must be set while the rotor arms are lowered.
The tractor engine must be turned off and the ignition key must be removed.
The distance from the swath former to the rotor can be adjusted for narrow or wide swathing or
to continuously adapt to the amount of forage. The distance from the swath former to the rotor
must be adjusted for the amount of forage.
High amount of forage = long distance
Small amount of forage = short distance
Pos: 20.15.3 /B A/Bedienung /Sc hwader/Schwad tuch/Schwadfor mer/Schwadtuc h einstellen Sw adro 907 @ 2\ mod_12028308 05701_78.doc @ 61981
• Loosen the lock (2)
• Pull out the swath cloth to the desired distance.
• Tighten the lock (2)
Pos: 20.15.4 /B A/Bedienung /Sc hwader/Schwad tuch/Schwadfor mer/Schwadtuc h(S chieberohre) gleich einstelle n SW 907 @ 1 6\mod_123476 5813053_78.d oc @ 182422
Note
Pull out the swath cloth so that dimension "a" is the same distance in the front and rear area of
the slide tubes.
