Servicing the Timeclock
Series 4000 Badge Timeclock User’s Guide 4-15
Attaching the Cover Assemby to the Timeclock

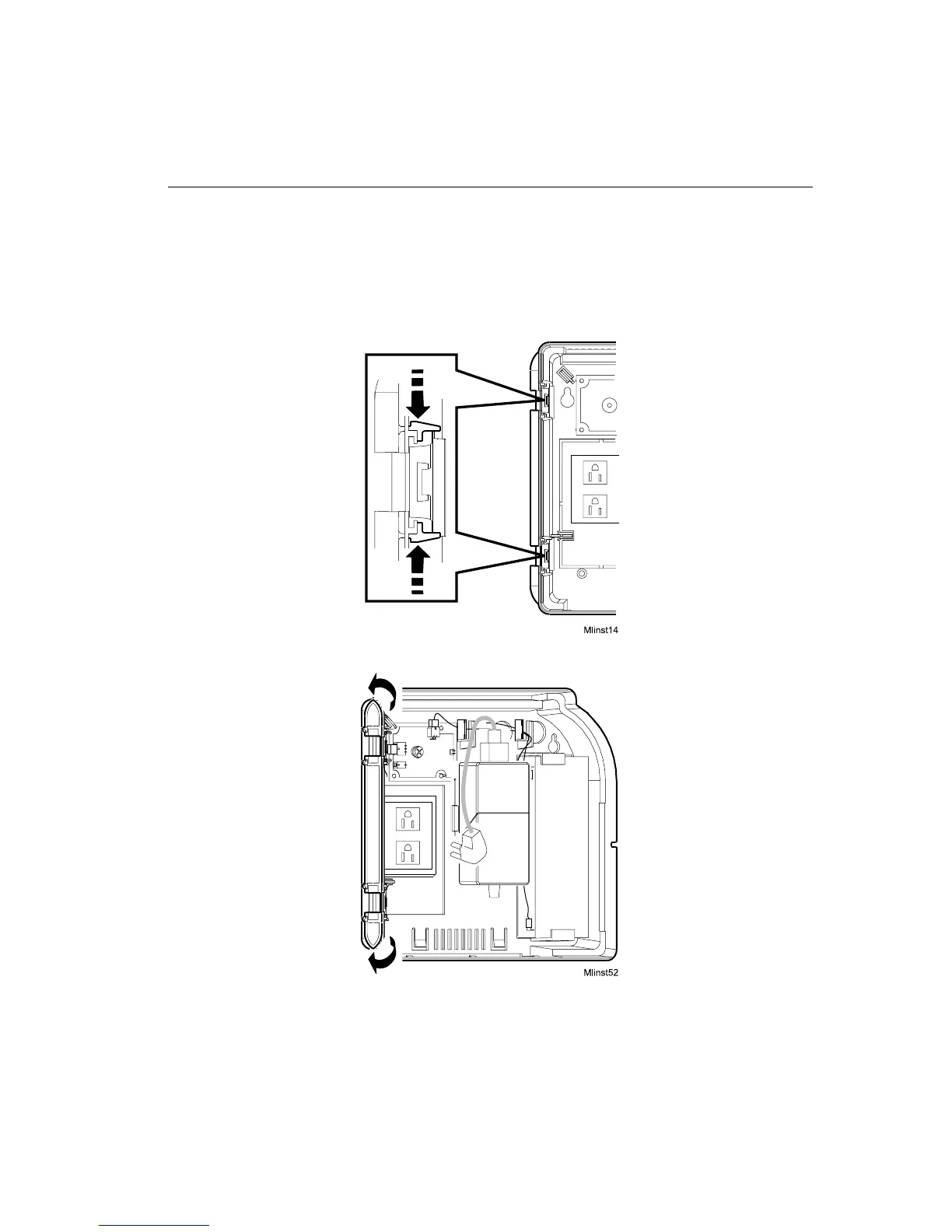

1. Release the plastic hinge clip by squeezing the retainers at each hinge
position. You can squeeze each retainer one at a time or simultaneously until
you feel the clip release.
2. Rotate the hinge clip to the left.
