Servicing the Timeclock
Series 4000 Badge Timeclock User’s Guide 4-25
b. Unplug the power cord from the transformer.
c. Disconnect the transformer cable from the timeclock’s main board.
d. Trace the wire back to the transformer, freeing it from the hooks molded
into the base of the timeclock.

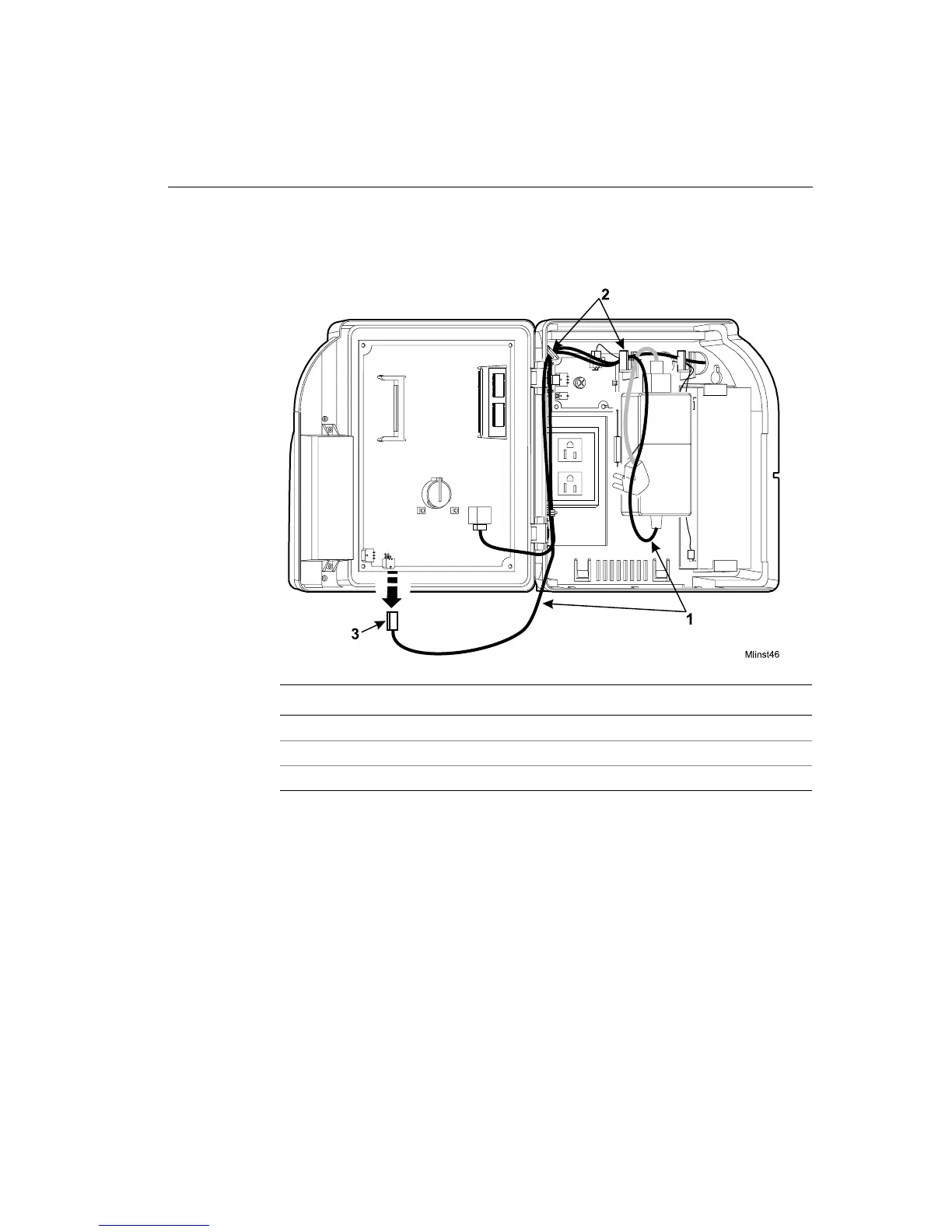

Number Description
1 Transformer cable
2 Hooks holding the cable in place
3 Transformer connection to the main board (DC power)
