Servicing the Timeclock
Series 4000 Badge Timeclock User’s Guide 4-41
5. Disconnect the transformer cable from the timeclock’s main board.
6. Trace the wire back to the transformer, freeing it from the hooks molded into
the base of the timeclock.

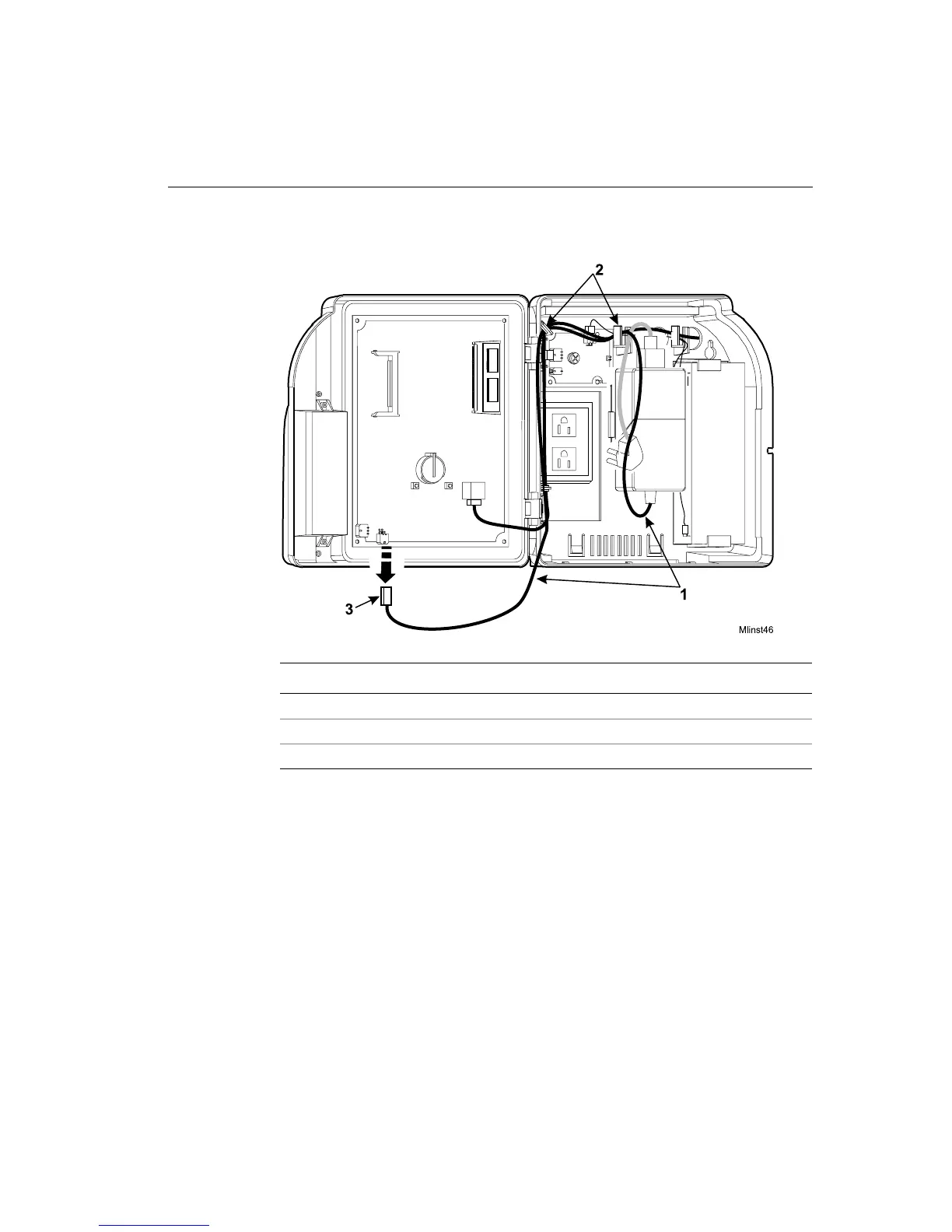

Number Description
1 Transformer cable
2 Hooks for routing the cable
3 Transformer connection to the main board (DC power)
