Using the optional syringe dosing unit page 13
KRÜSS GmbH | Borsteler Chaussee 85 | 22453 Hamburg | Germany | www.kruss.de

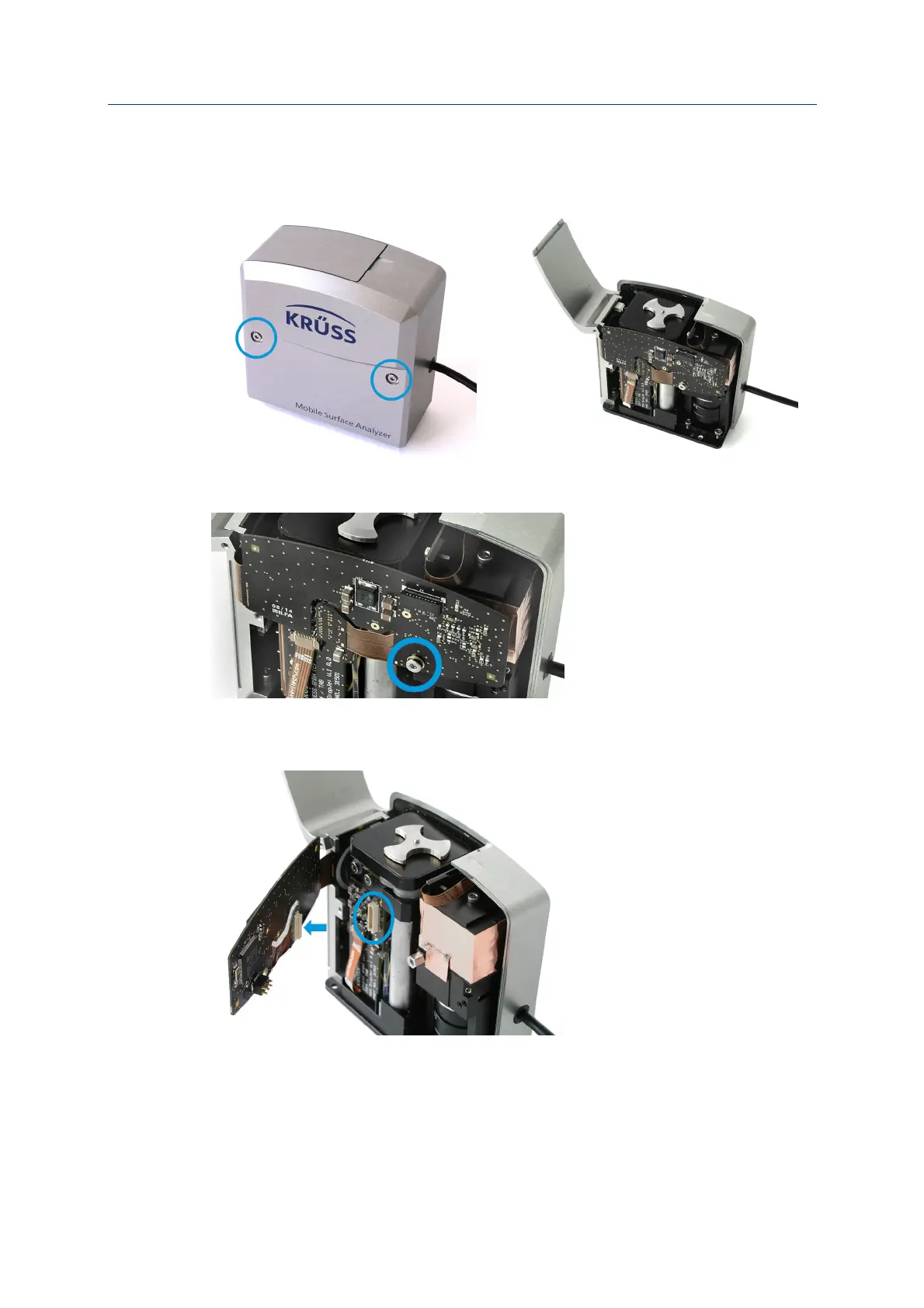

3. Remove the two screws on the side of the housing without the cable gland. Remove the
housing half shell. Open the cover.
4. Remove the screw on the printed circuit board marked in the illustration.
5. Carefully remove the printed circuit board. At the same time, remove the plug-in connection
between the board and the dosing unit.
