2.3.2 Cover

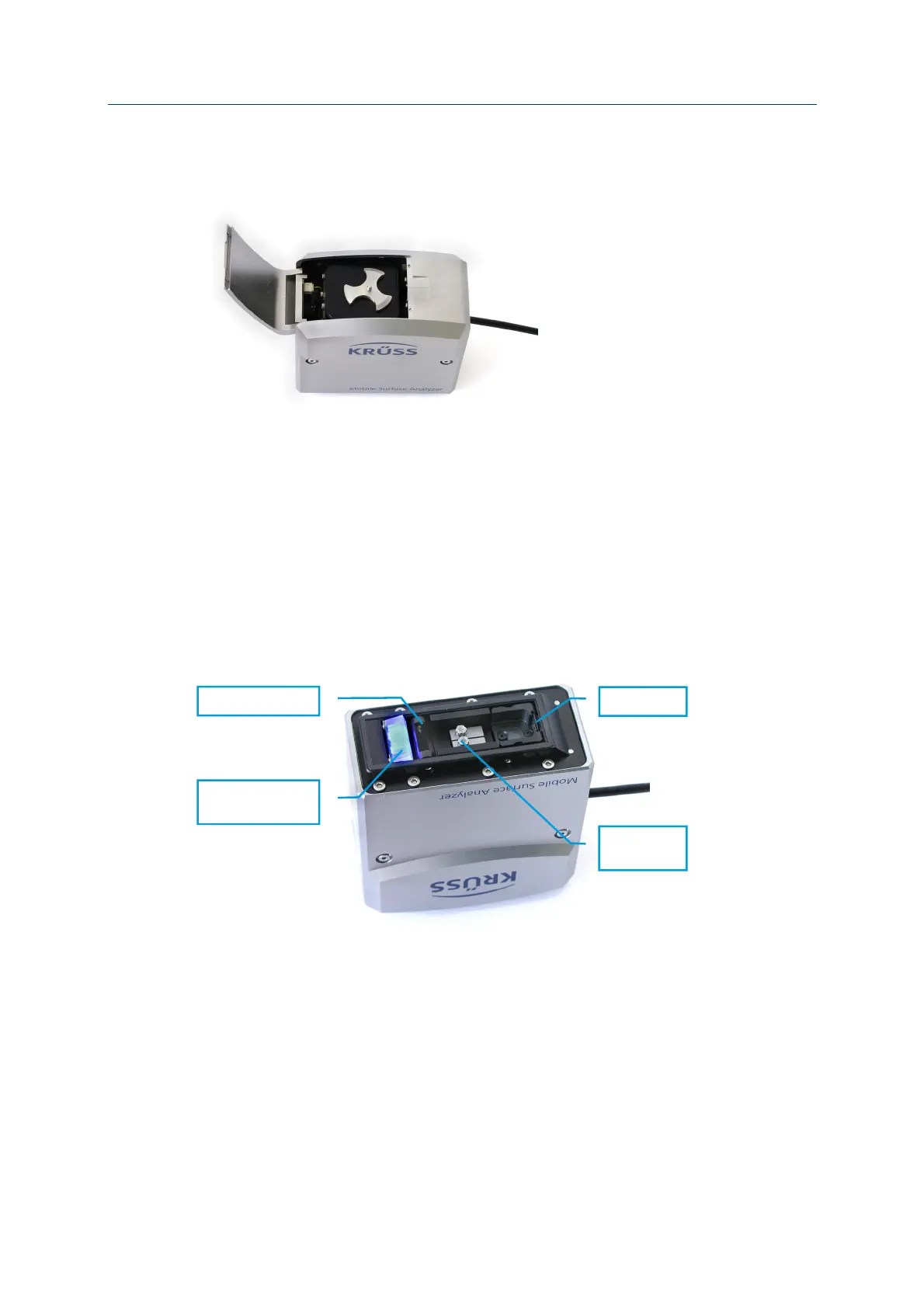

The cover is only opened for filling purposes. When the MSA is connected, the dosing unit is
prepared for filling by opening the cover:
 Pressurized dosing unit (standard): the pressure is released.
 Optional injection dosing unit: the plunger is moved to the top.
2.4 Components on the underside
2.4.1 Illumination
The illumination is divided into segments to enable two dispensed drops to be illuminated
separately. In the standard configuration, the illumination is optimized for two drops, each of
1 µL.
The illumination is switched on when the MSA is connected.
2.4.2 Prism
The prism deflects the light into the integral camera.
Prism
Illumination
(MSA connected)
Aperture
Dosing
outlet
