9.2 Closed-loop control mode
Terminal box
Option
Repair switch
Terminal box
Option:
Customer-spec. setpoint, 0 - 10 V or 2 - 10 V, 4 - 20 mA
Option:
Option
Option
Analog - input 2
Sensor

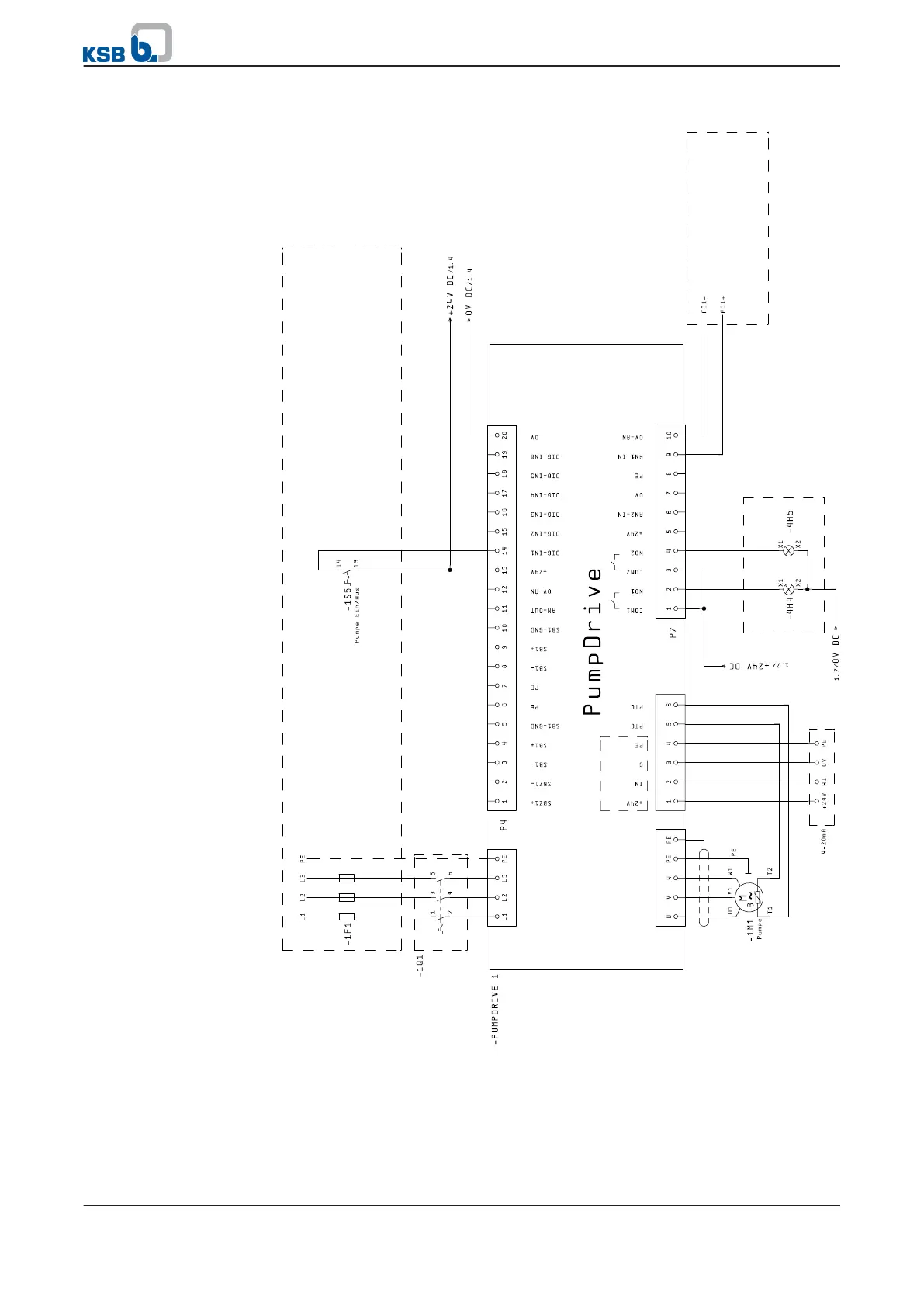

Fig. 50: Connection example for closed-loop control mode
