KSB PumpDrive - 6 Operation; 6.1 Standard control panel; 6.1.1 LED traffic light function

6 Operation
6.1 Standard control panel
1
2
3
4
5
MAX
MIN
DPM
MODE

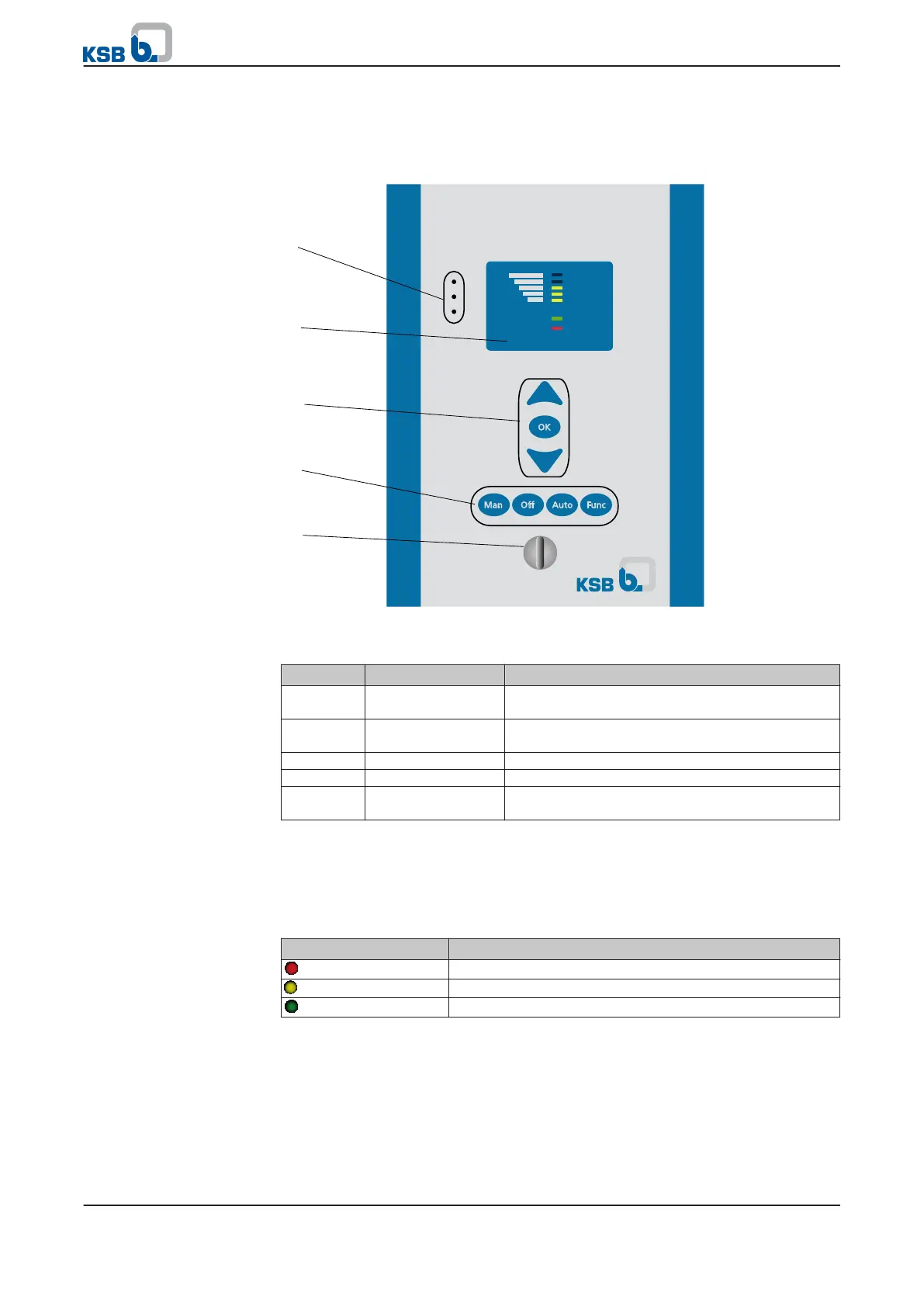

Fig. 20: Standard control panel
Table 22: Description of standard control panel
Item Designation Function
1 LED traffic light
function
The traffic light function provides information
about the system's operating status.
2 LED display Displays the operating status, motor speed,
setpoint and actual value via LEDs
3 Navigation keys Setpoint specification
4 Operating keys Toggling operating modes
5 Service interface PumpDrive configuration and parameterisation
via PC/notebook.
6.1.1 LED traffic light function
The LED traffic light function provides information about the current PumpDrive
operating status.
Table 23: LED description
LED Description
Red
One or more than one alert is active
Amber
One or more than one warning is active
Green
Trouble-free operation
Standard control panel
6 Operation
PumpDrive
37 of 162
