KSB PumpDrive - Dimensions and Weights; Mounting Options

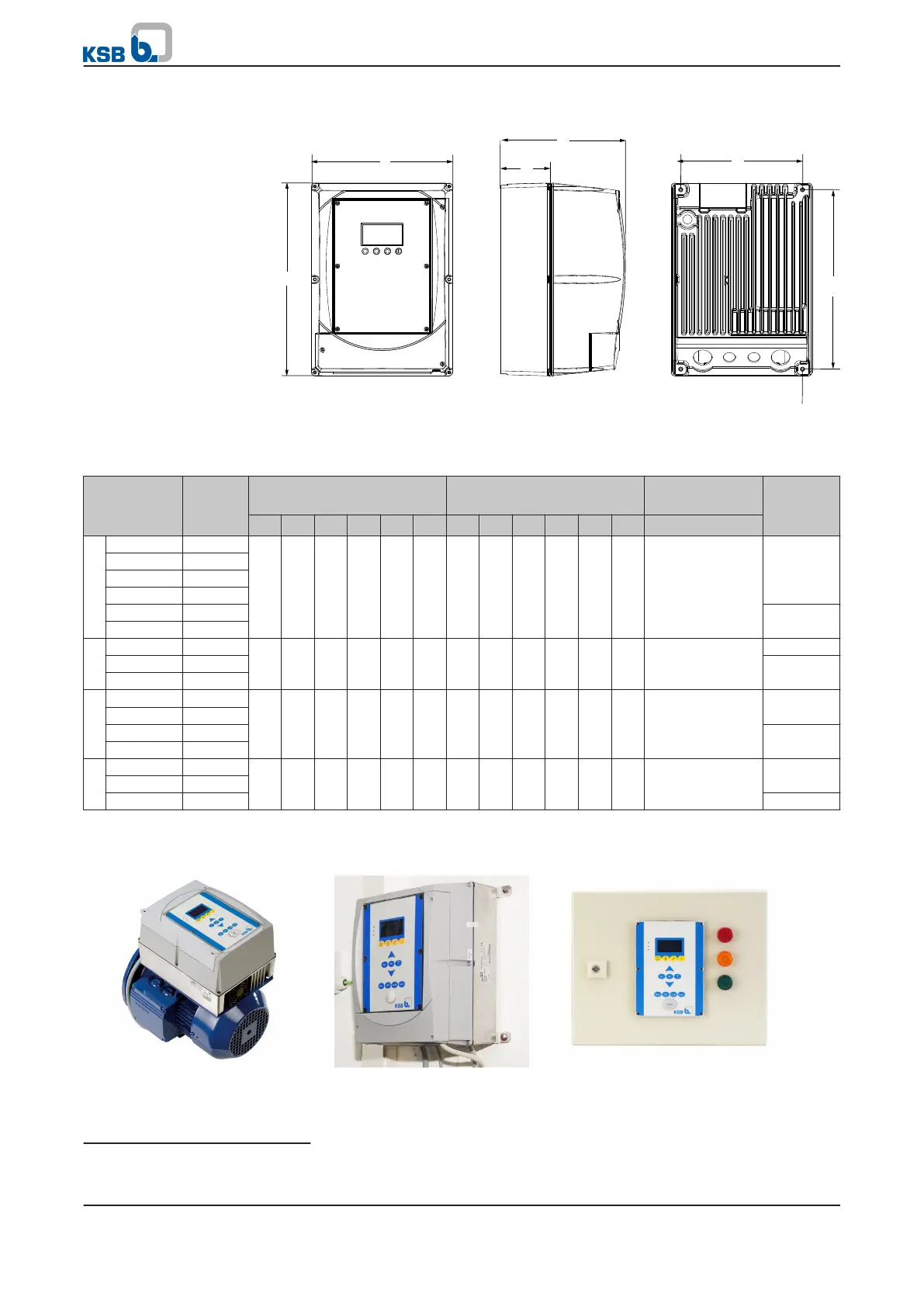

4.8 Dimensions and weights
a
b
c
d
e
f
G
Fig. 6: Dimensions
Table 11: Dimensions and weights
Size Power Motor-mounted model Wall-mounted/
Cabinet-mounted model
23)
Fastening
screws/bolts
Weight
[kg]
a b c d e f a b c d e f G
A ..000K55.. 0,55 260 190 158 65 164 242 312 190 168 65 164 292 M6x9
(4x)
7
..000K75.. 0,75
..001K10.. 1,1
..001K50.. 1,5
..002K20.. 2,2 9
..003K00.. 3
B ..004K00.. 4 325 250 170 65 224 307 377 250 180 65 224 357 M6x9
(4x)
10
..005K50.. 5,5 10,5
..007K50.. 7,5
C ..011K00.. 11 420 320 235 125 283 396 482 320 245 125 283 458 M8x9
(4x)
23
..015K00.. 15
..018K50.. 18,5 30
..022K00.. 22
D ..030K00.. 30 600 450 290 125 410 573 659 450 300 125 410 635 M10x9
(4x)
48
..037K00.. 37
..045K00.. 45 50
4.9 Mounting options
Motor mounting Wall mounting Control cabinet mounting
23)
The dimensions provided refer to PumpDrive, including the wall mounting brackets.
4 Description
18 of 162
PumpDrive
