WALL MOUNTING INSTRUCTIONS
MOUNTING NOTES
In order to correctly install the metal cabinet and the components inside it, please follow the instructions here below:
1. Fix the metal cabinet to the wall using Ø 0.32 inch screws (options)
In order to maintain the conformity with the listed norms at page 15, install a screw in correspondence to the tamper
2. Extract the support for power supply unit. (20)
3. Fix the power supply unit to its support using the provided M3 screws.
4. Place the support back.
5. Wire the cables as shown in picture.
6. Ensure the cables to the xing holes (21).
• Arrange outside the Panel an isolating device (es. Circuit Breaker Device 16A Curve C).
• The two power supplies have respectively two internal fuses (25W - T2AL / 50W - F3.15AL).
In case should fail, its replacement requires the opening of the power supply and must therefore be carried
out by authorized personnel.
• Wire the earth connection directly on the power supply unit.
• The power supply conductors must be 0,6 inch.² minimum section.

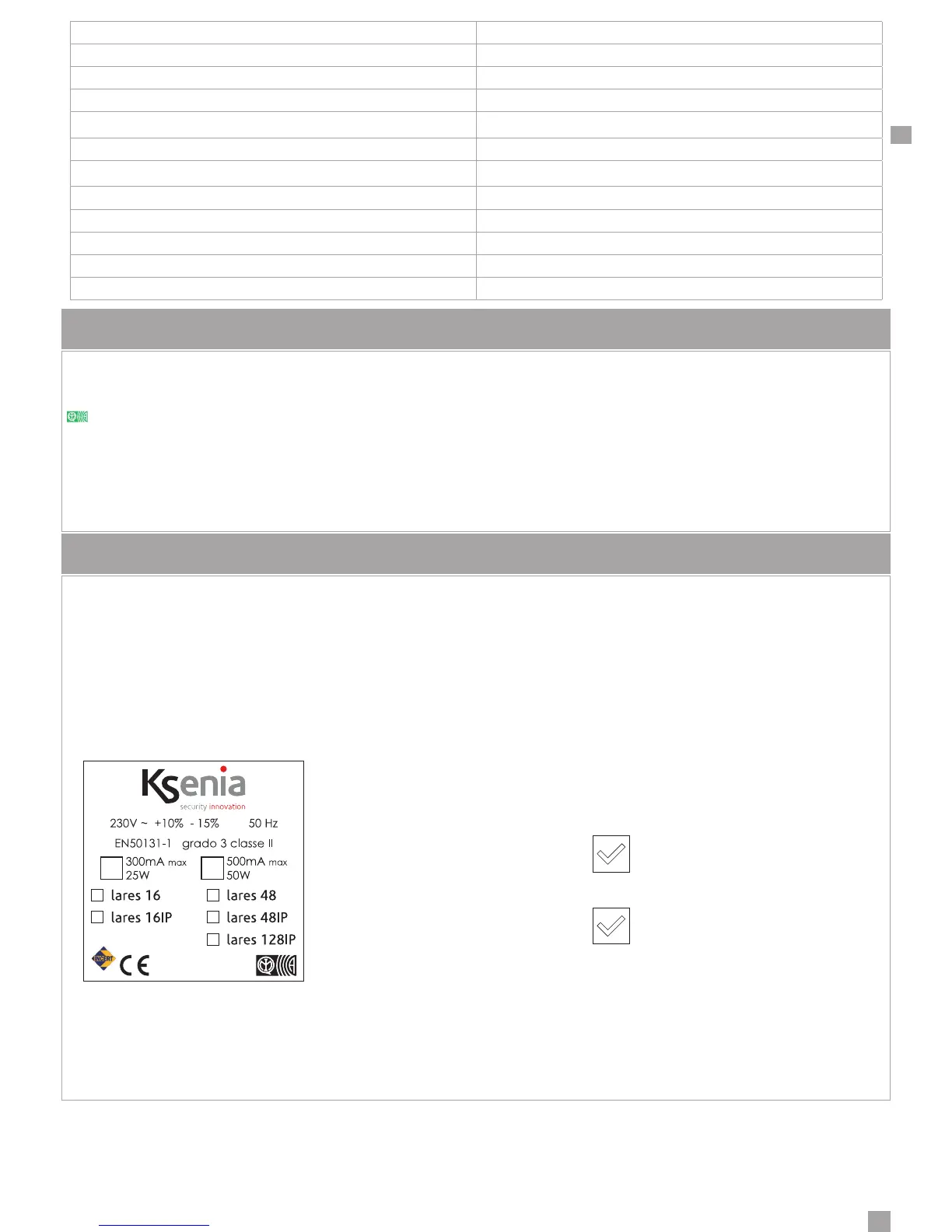

• Depending of the installed power supply unit and Control Panel, check
the relative box in the label using a petroleum solvent resistant pen,
outside the metal cabinet.
• Power supply unit RS25-15
Ksenia Code KSI7101217.000
• Power supply unit RS50-15
Ksenia Code KSI7101230.000
MADE IN ITALY
A-BBBB
1. Metal bottom 13. USB key (optional)
2. Large holes for passing cables 14. Power supply cable
3. Bottom securing holes 15. 12V battery
4. System’s board brackets 16. Switching power supply unit
5.
auxi PC board brackets
17. Battery terminals
6. Anti-tamper micro-switch 18. Power supply unit terminals
7. Micro-switch cable + connector
19.
gemino PC board brackets
8. Earth connections on threaded pin and nut 20. Support for power supply unit
9. Control panel board 21. Holes for cables xing
10. Control panel micro-controller 22. 2A Fuse
11. Interconnection terminals 23. ETHERNET connector lares 16-IP 48-IP 128-IP
12. Programming USB connector
200mA max
25W
500mA max
50W
