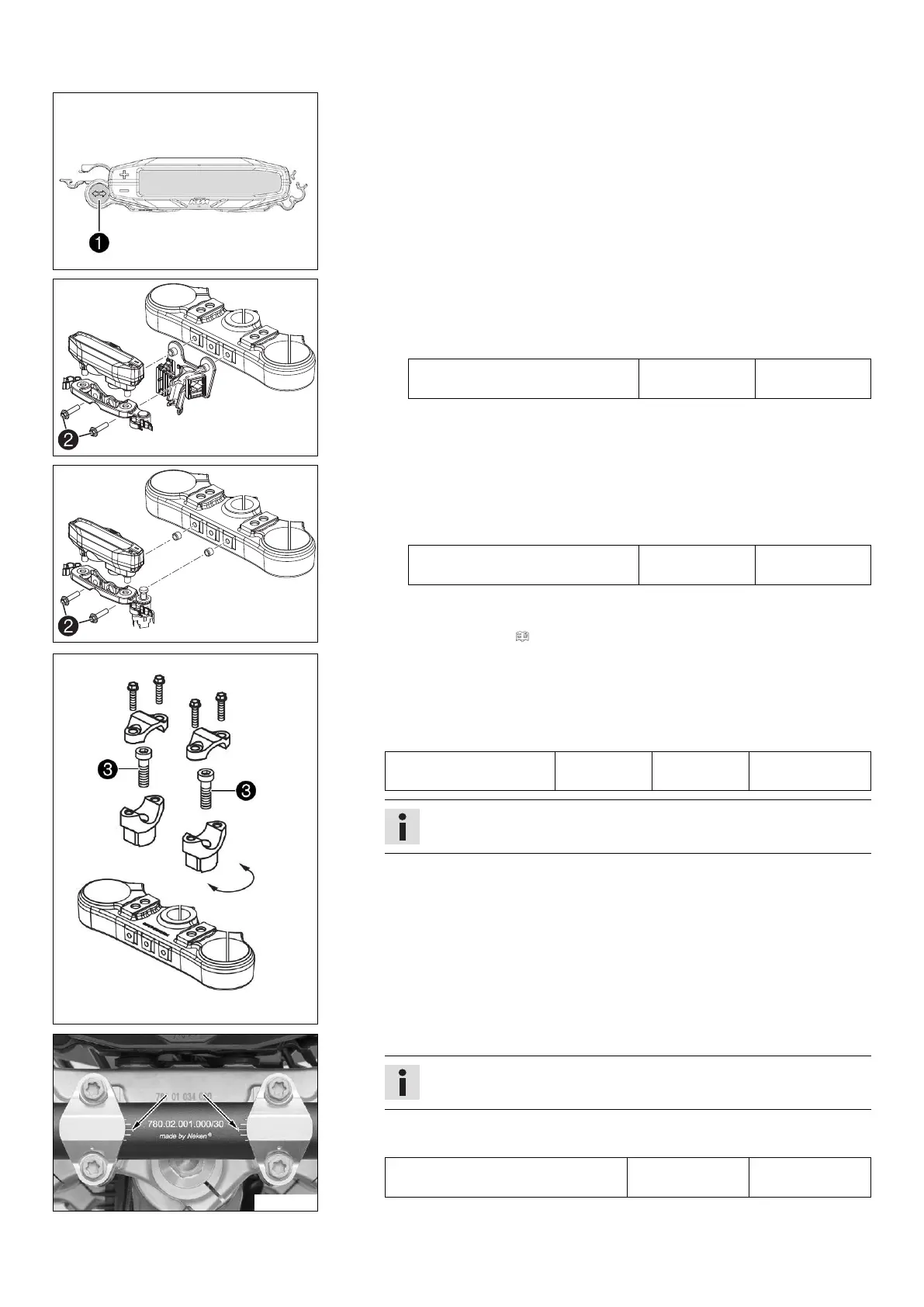

2 SETUP 4
H01768-10
(All EXC/EXC Six Days models)
–
Position the turn signal indicator lamp
in the speedometer bracket.
402736-10
(all EXC/EXC Six Days models, 125 XC‑W)
– Position the connector retainer and speedometer on the upper triple clamp.
–
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
402737-10
(XC‑W US, XC‑W Six Days US)
– Position the speedometer on the upper triple clamp.
–
Mount and tighten screws
with the collar bushings.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Route the clutch line with the clutch master cylinder toward the front between
the upper and lower triple clamps.
– Install the fork legs. ( p. 20)
S01414-10
(All standard EXC/XC-W models)
–
Remove screws
and take off handlebar supports.
– Move the handlebar supports to the desired position and mount and tighten
screws
.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
E00483-01
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
– Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
