2 SETUP 5
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
S01415-10
(All Six Days models)
–

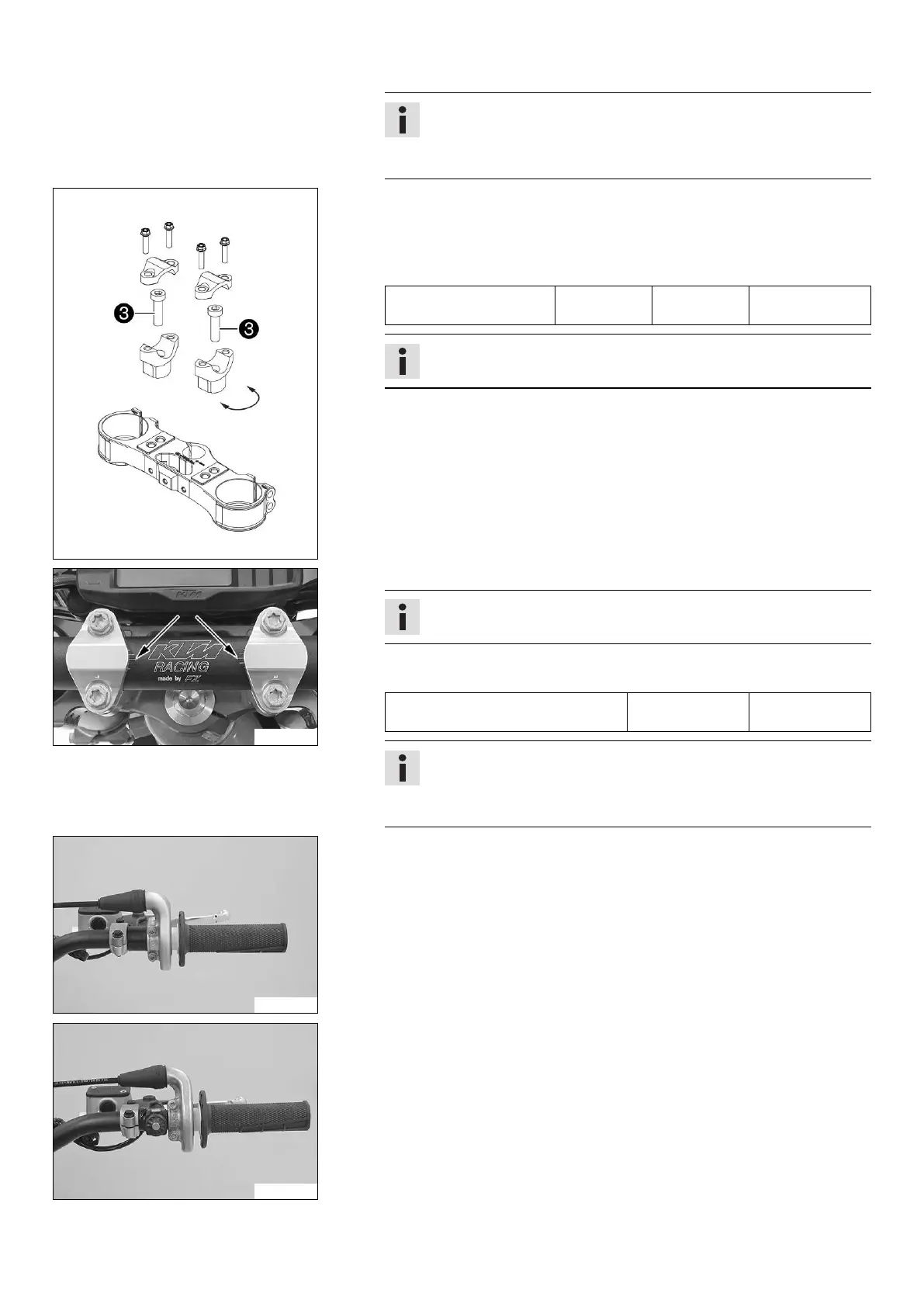

Remove screws

and take off handlebar supports.
– Move the handlebar supports to the desired position and mount and tighten
screws

.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
S01413-01
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
– Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
S01450-01
(125 XC‑W EU)
– Position the controls on the right half of the handlebar.
S01451-01
(All XC‑W/XC‑W Six Days models, EXC EU, EXC Six Days EU, 300 EXC BR)
– Position the controls on the right half of the handlebar.
