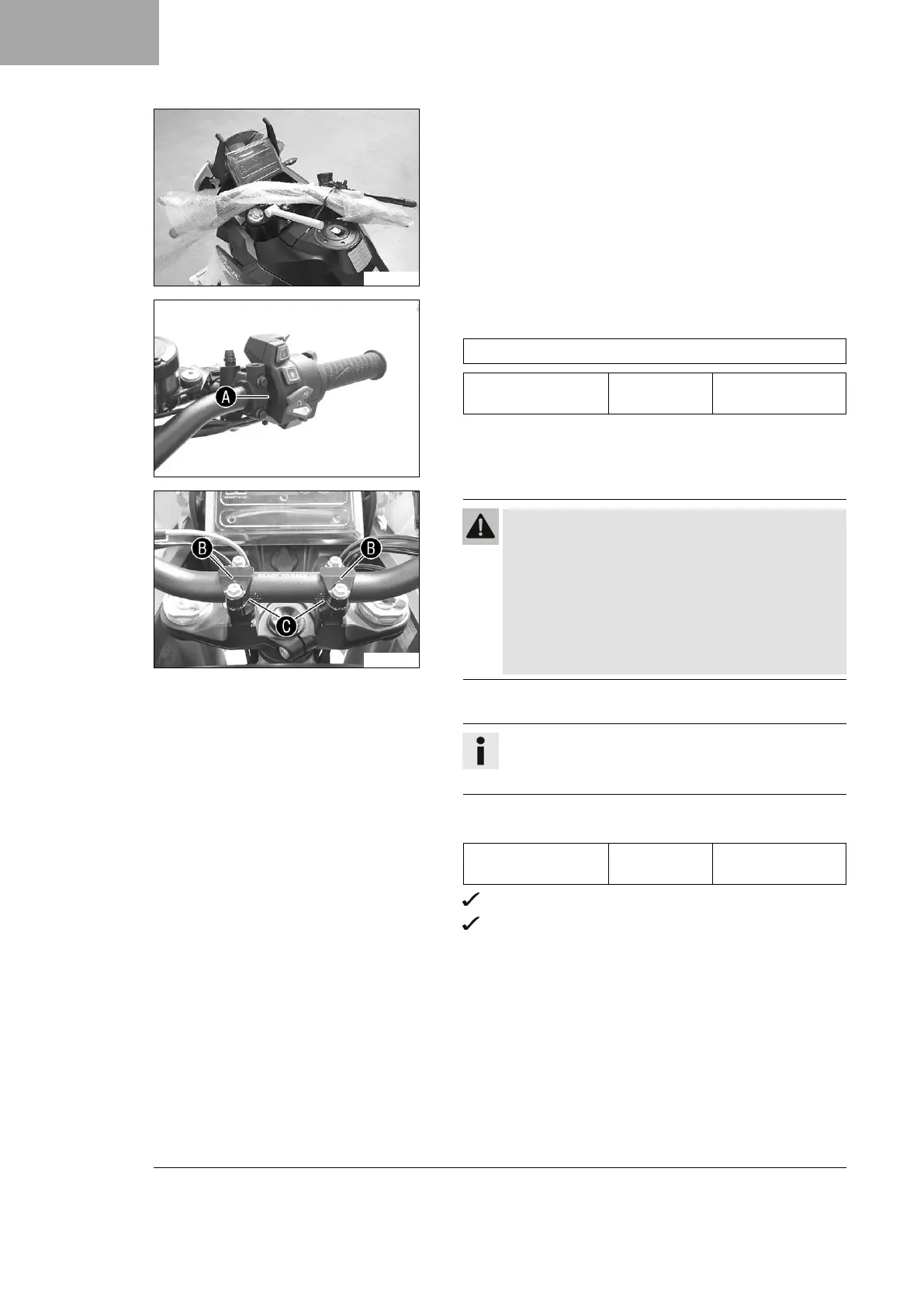

KTM 1290 SUPER ADVENTURE R User Manual

2 SETUP
4
E02441-01
– Remove the handbrake pump from the transport holder.
– Remove the screws and handlebar clamps.
– Remove the transport holder.
E02429-10
–
Position the handbrake pump. Tighten the screws.
Guideline
Anti-rotation lock
A
engages in the right switch unit.
Screw, brake assem-
bly
M6 5 Nm (3.7 lbf ft)
E02442-10
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged
or bent.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
– Position the handlebar clamps. Tighten the screws evenly.
Guideline
Screw, handlebar
clamp
M8x25 20 Nm (14.8 lbf ft)
Markings
B
face backward.
Handlebar scale markings
C
are located centrally
between the handlebar clamps.
– Check the throttle grip for smooth operation.

KTM 1290 SUPER ADVENTURE R Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1301 cc
Transmission	6-speed
Seat Height	880 mm
Weight (Dry)	221 kg
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Tire	90/90-21
Rear Tire	150/70-18
Power	160 hp (118 kW)
Torque	138 Nm
Fuel Tank Capacity	23 liters
Suspension Front	WP XPLOR 48 mm, adjustable
Suspension Rear	WP XPLOR PDS shock absorber
Clutch	PASC slipper clutch, hydraulically actuated
Frame	Chromoly steel trellis frame, powder coated
Front Brake	2 x Brembo 4-piston radial calipers, 320 mm discs
Rear Brake	267 mm disc, 2-piston caliper
Traction Control	MTC (Motorcycle Traction Control)
Wheelbase	1580 mm
ABS	Bosch 9.1 MP (Cornering-ABS and Offroad-ABS)
