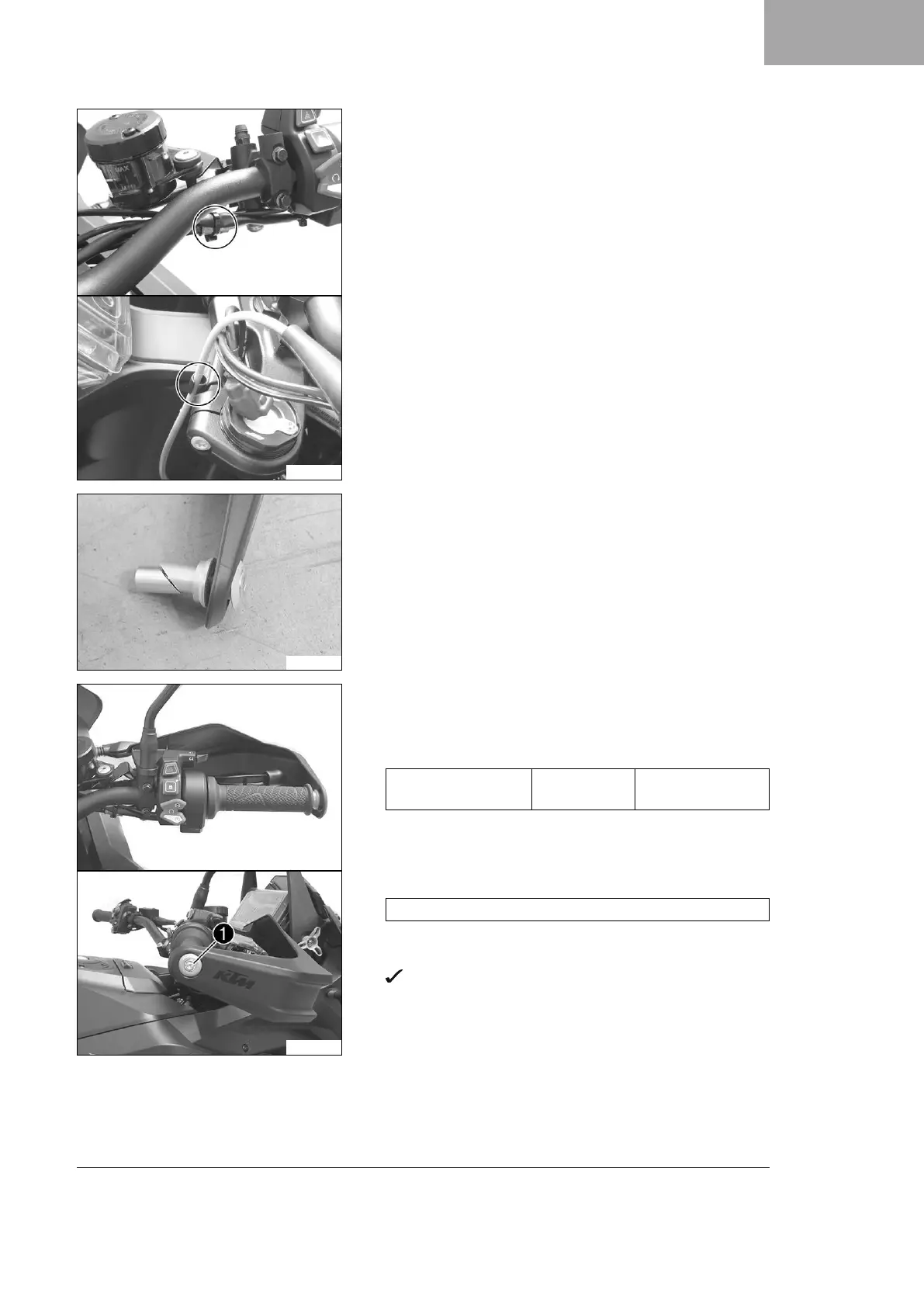

SETUP 2
5
E02431-10
– Position the cables for the right-hand controls and secure with
cable ties.
– Attach the clutch line to the holder.
E02432-01
– Preassemble the hand guards with screws and bushings.
E02433-10
– Position the right hand guard.
– Mount and tighten the rear mirror.
–
Tighten screw
1
.
Guideline
Screw, handle bar
end hand guard
M8x40 25 Nm (18.4 lbf ft)
– Repeat these steps on the opposite side.
– Carefully loosen and remove the tension belt from the rear
wheel spindle.
Guideline
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tension belts around the lower
triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off the pallet.
