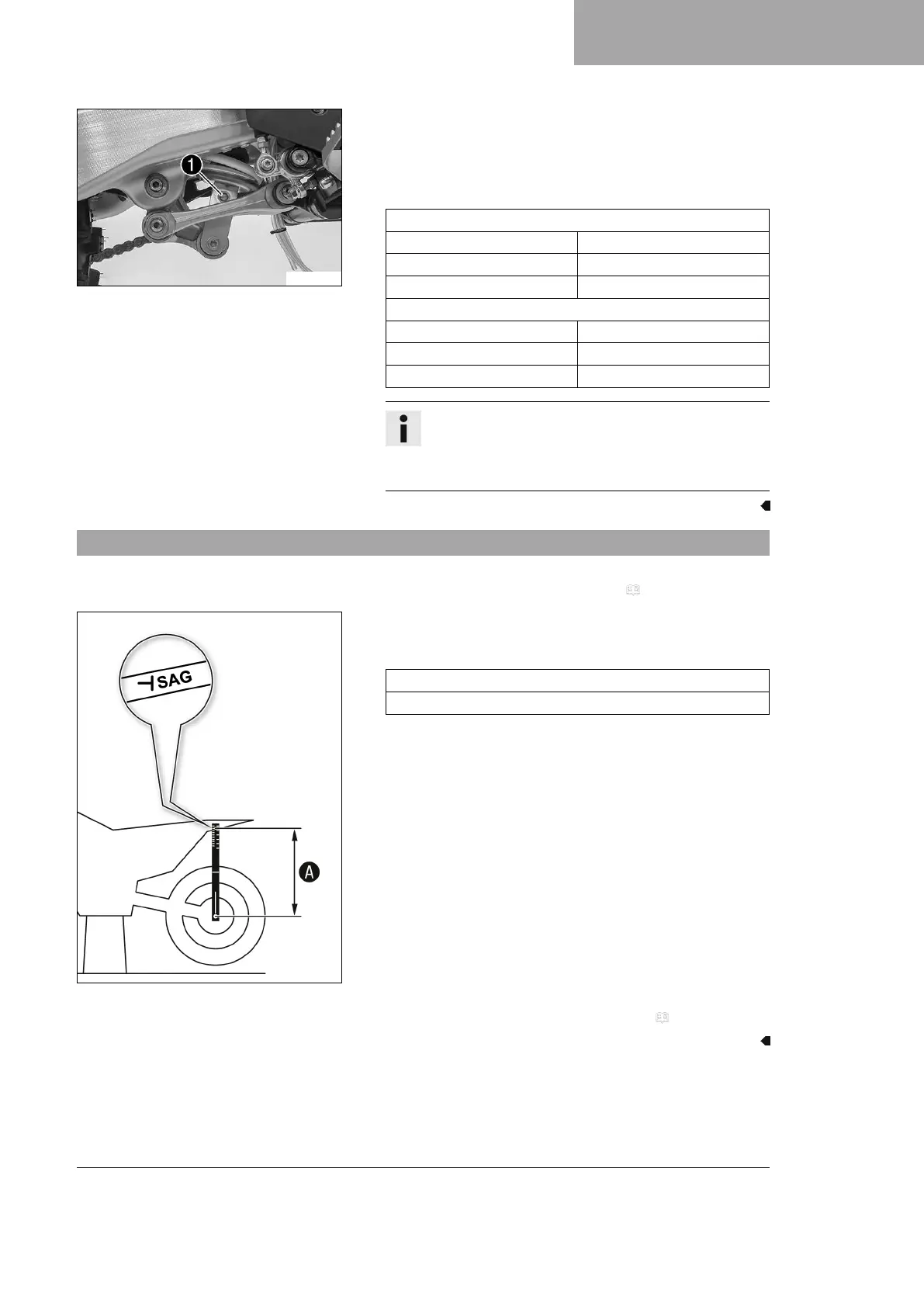

TUNING THE CHASSIS 10
41
K01131-10
–
Turn adjusting screw
1
clockwise up to the last perceptible
click.
– Turn counterclockwise by the number of clicks corresponding
to the shock absorber type.
Guideline
Rebound damping (All SX models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (125 XC US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
10.7 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
402415-10
Main work
– Position the sag gage in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090000)
Sag gage pin (00029990010)
–
Note down the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 49)
