KTM 150 SX 2021 - Removing the Start Number Plate; Installing the Start Number Plate; Removing Front Fender; Installing Front Fender

SERVICE WORK ON THE CHASSIS 11
57

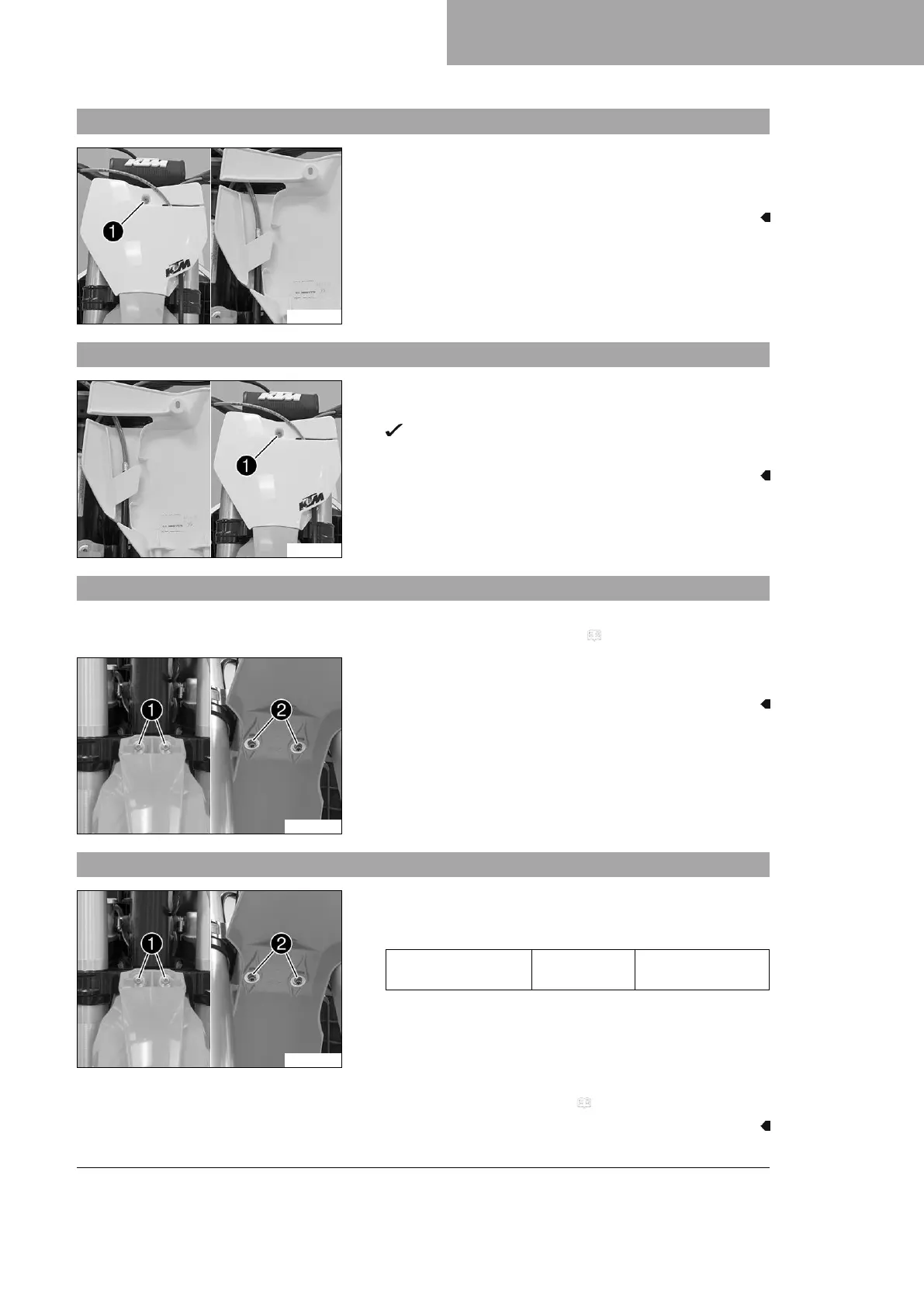

11.14 Removing the start number plate
F00012-10
–
Remove screw
1
.
– Disconnect the brake line at the start number plate. Take off
the start number plate.
11.15 Installing the start number plate
F00013-10
– Connect the brake line at the start number plate.
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw
1
.
11.16 Removing front fender
Preparatory work
– Remove the start number plate. ( p. 57)
M01144-10
Main work
–
Remove screws
1
and
2
. Remove front fender.
11.17 Installing front fender
M01144-10
Main work
–
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 57)
