SERVICE WORK ON THE CHASSIS 11
63

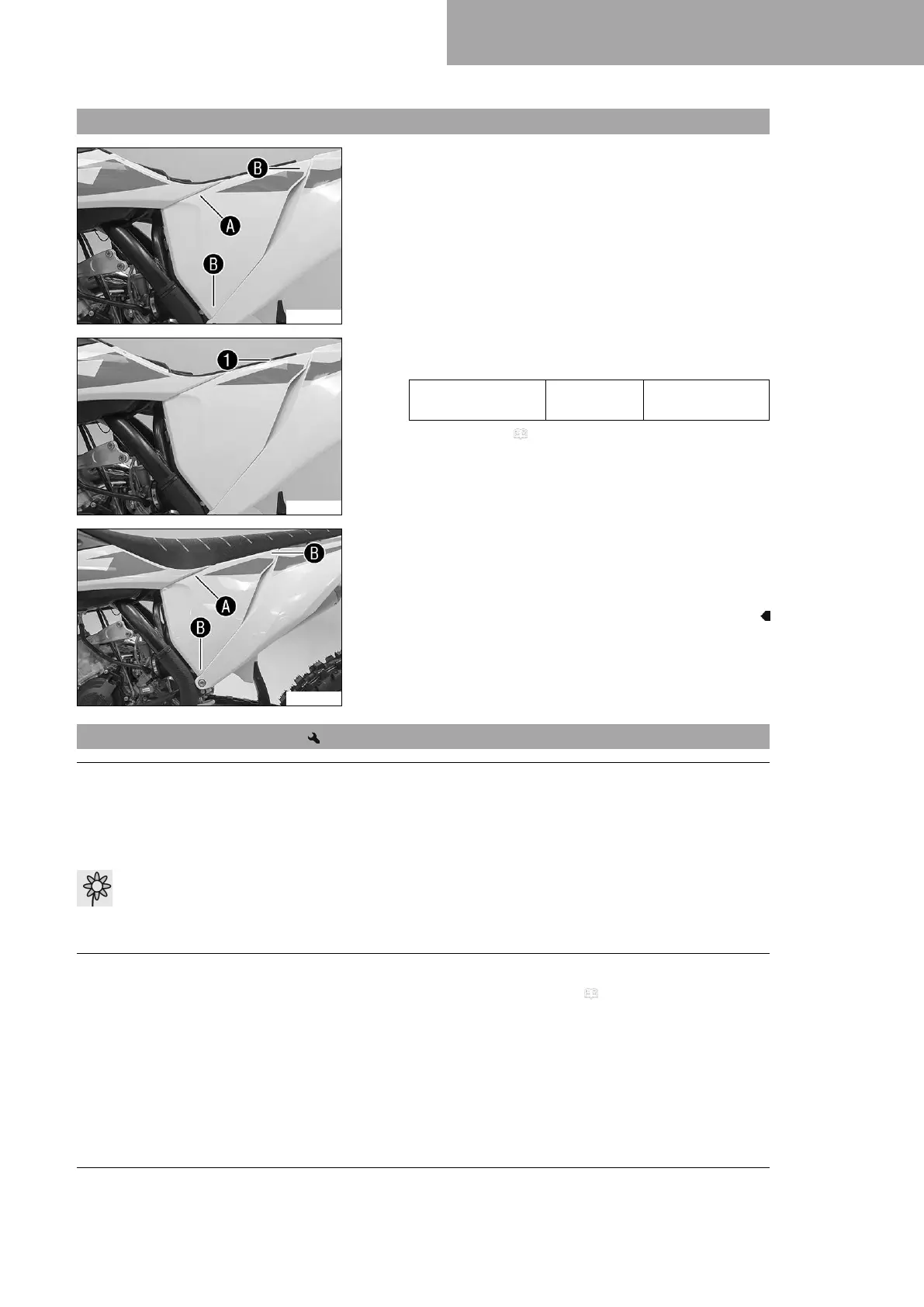

11.23 Installing the air filter box cover
K01154-11
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
K01153-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 61)
K01155-11
Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
11.24 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
– Only operate the vehicle if it is equipped with an air filter.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Remove the air filter box cover. ( p. 62)
