SERVICE WORK ON THE CHASSIS 11
69

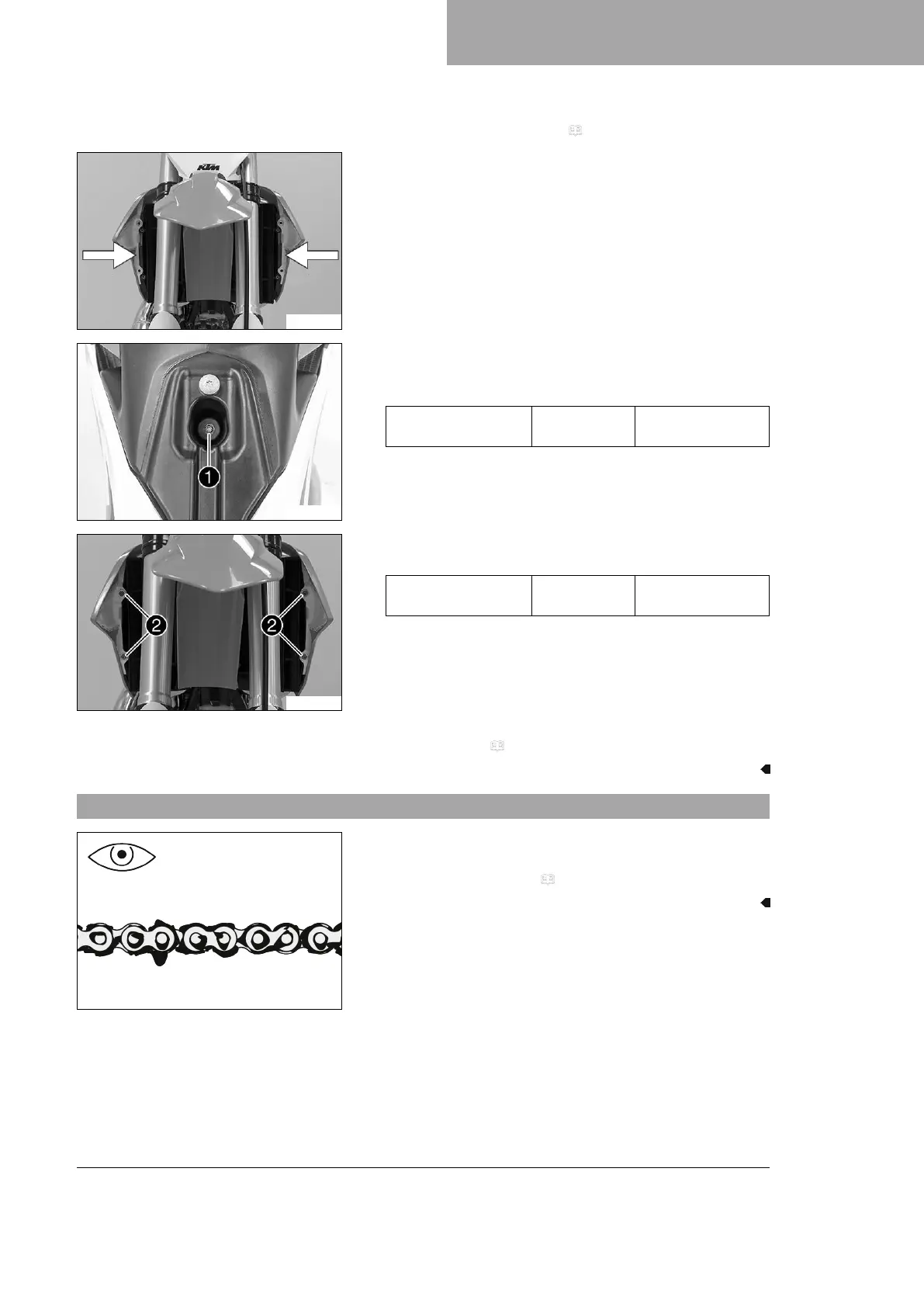

Main work
– Check throttle cable routing. ( p. 75)
K01191-02
– Position the fuel tank and fit the two spoilers laterally to the
radiator.
– Make sure that no cables or throttle cables are trapped or dam-
aged.
K01190-11
– Attach the fuel tank breather hose.
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K01189-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Connect the fuel hose.
Finishing work
– Mount the seat. ( p. 61)
11.33 Checking the chain for dirt
400678-01
– Check the chain for heavy soiling.
» If the chain is very dirty:
– Clean the chain. ( p. 70)
