11 SERVICE WORK ON THE CHASSIS
58

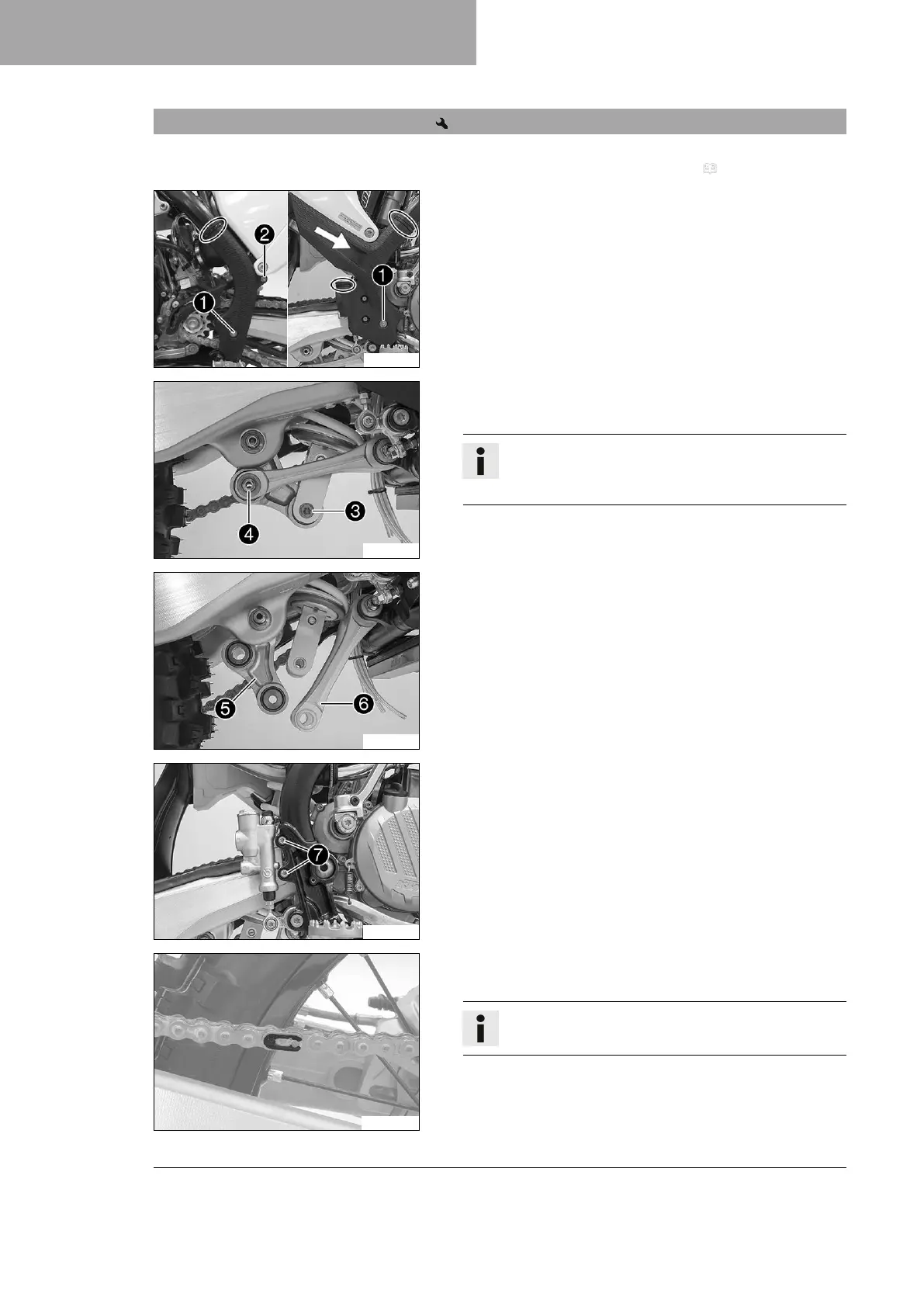

11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
V01525-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Remove screw
2
.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
K01134-10
–
Remove screw
3
.
–
Remove fitting
4
.
Info
Raise the wheel slightly to be able to remove the screws
more easily.
K01136-10
–
Press angle lever
5
toward the rear.
–
Press linkage lever
6
downward.
K01137-10
–
Remove screws
7
and pull foot brake cylinder off the push
rod.
M01149-01
– Remove the connecting link of the chain.
– Take off the chain.
Info
Cover the components to protect them against damage.
