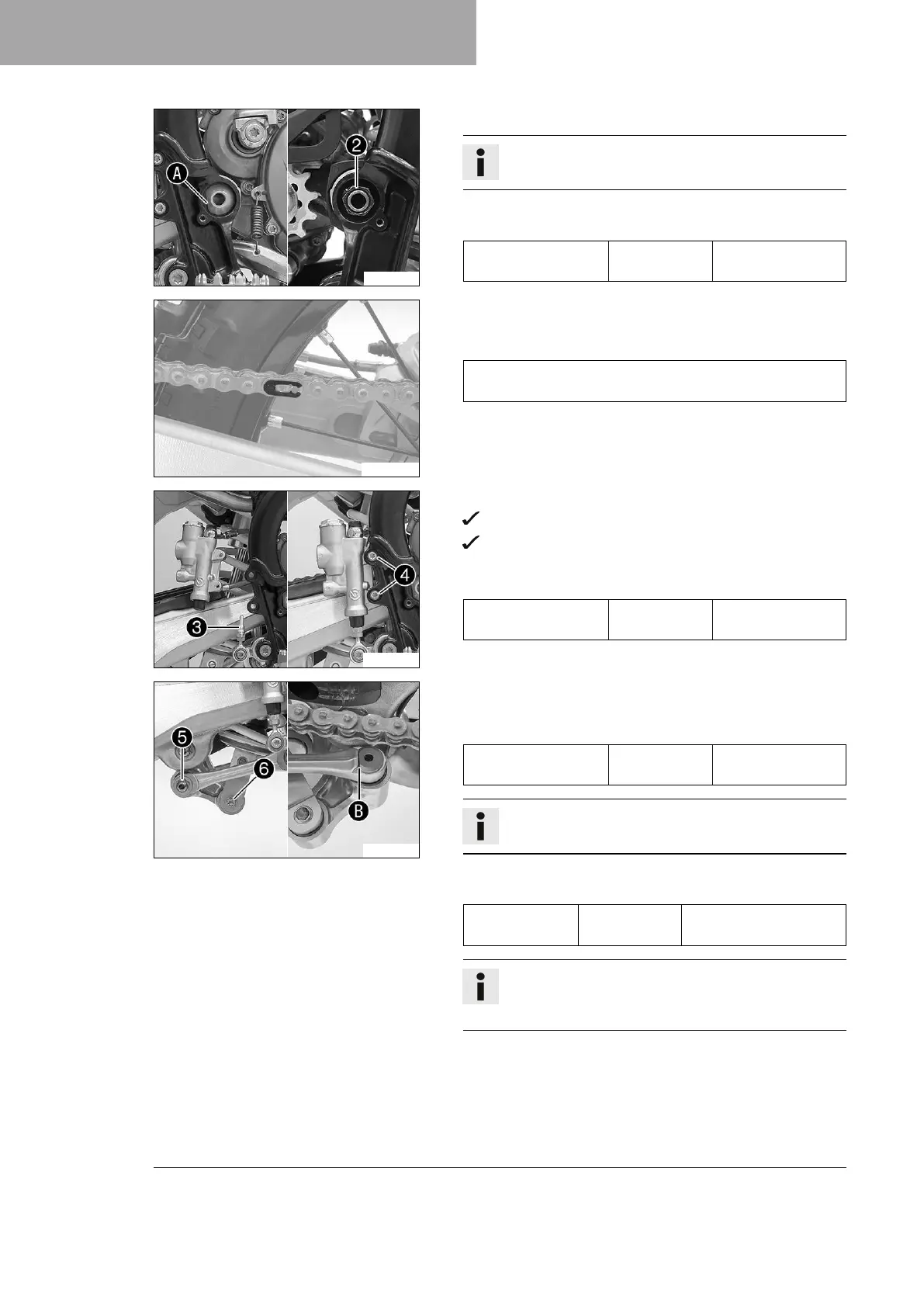

11 SERVICE WORK ON THE CHASSIS
60
V01527-10
– Position link fork and mount fork pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, fork pivot M16x1.5 100 Nm
(73.8 lbf ft)
M01149-01
–
Mount the chain.
– Connect the chain with the connecting link.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
K01148-10
– Position the foot brake cylinder.
Push rod
3
engages in the foot brake cylinder.
The dust boot is correctly positioned.
–
Mount and tighten screws
4
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K00864-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
5
.
Guideline
Nut, linkage lever on
angle lever
M14x1.5 60 Nm (44.3 lbf ft)
Info
Pay attention to flat area
B
.
–
Mount and tighten screw
6
.
Guideline
Screw, bottom
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
Info
Raise the wheel slightly to be able to mount the screw
more easily.
