BRAKE SYSTEM 12
85
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake
pistons.
101737-10
–

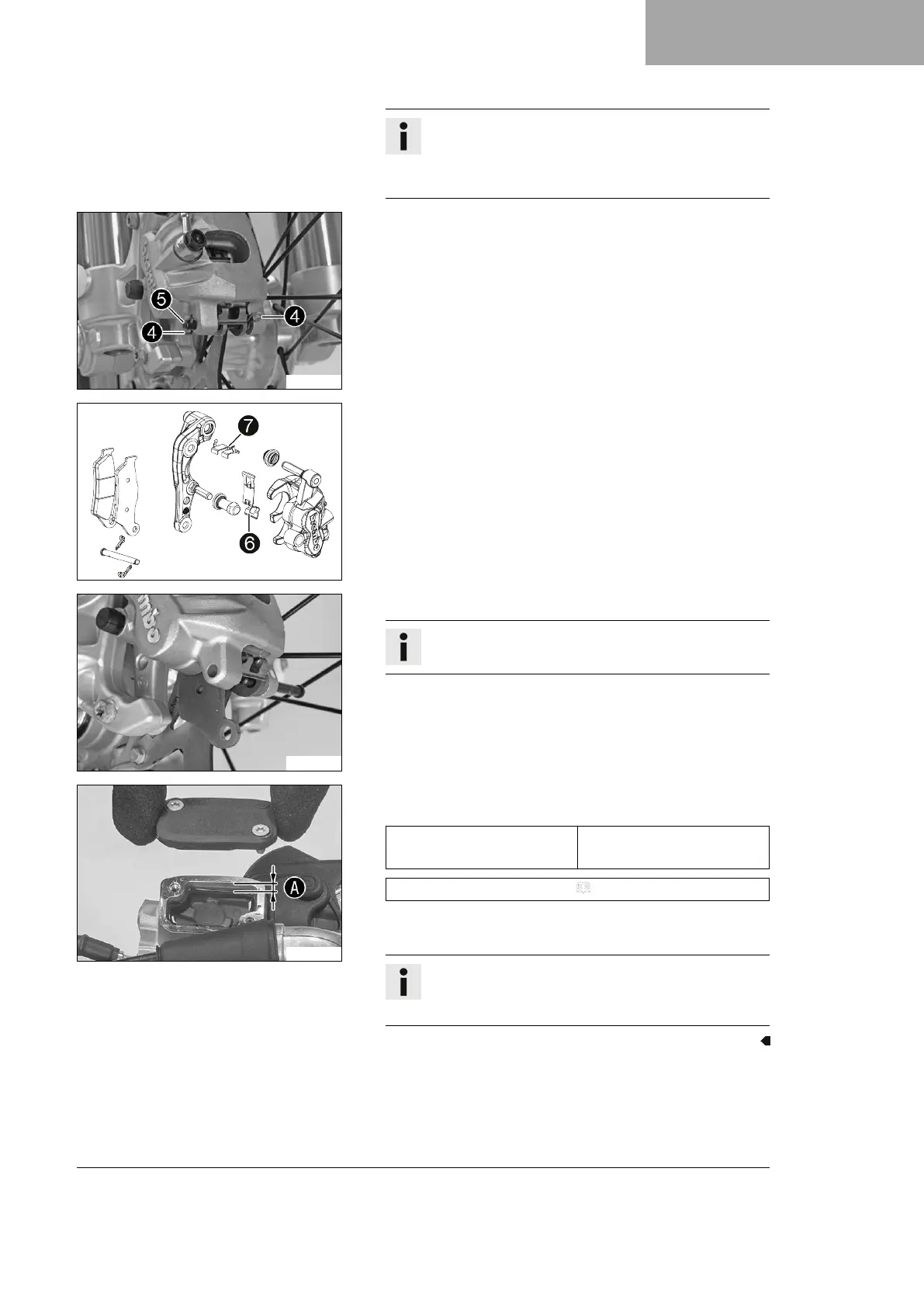

Remove cotter pins
4
, pull out pin
5
, and remove the
brake linings.
– Clean the brake caliper and brake caliper bracket.
100397-01
–
Check that spring plate
6
in the brake caliper and sliding
plate
7
in the brake caliper bracket are seated correctly.
101738-01
– Insert the new brake linings, insert pin, and mount cotter pins.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
K00521-10
–
Correct the brake fluid quantity to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 141)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
