WORK 3
9
S04390-10

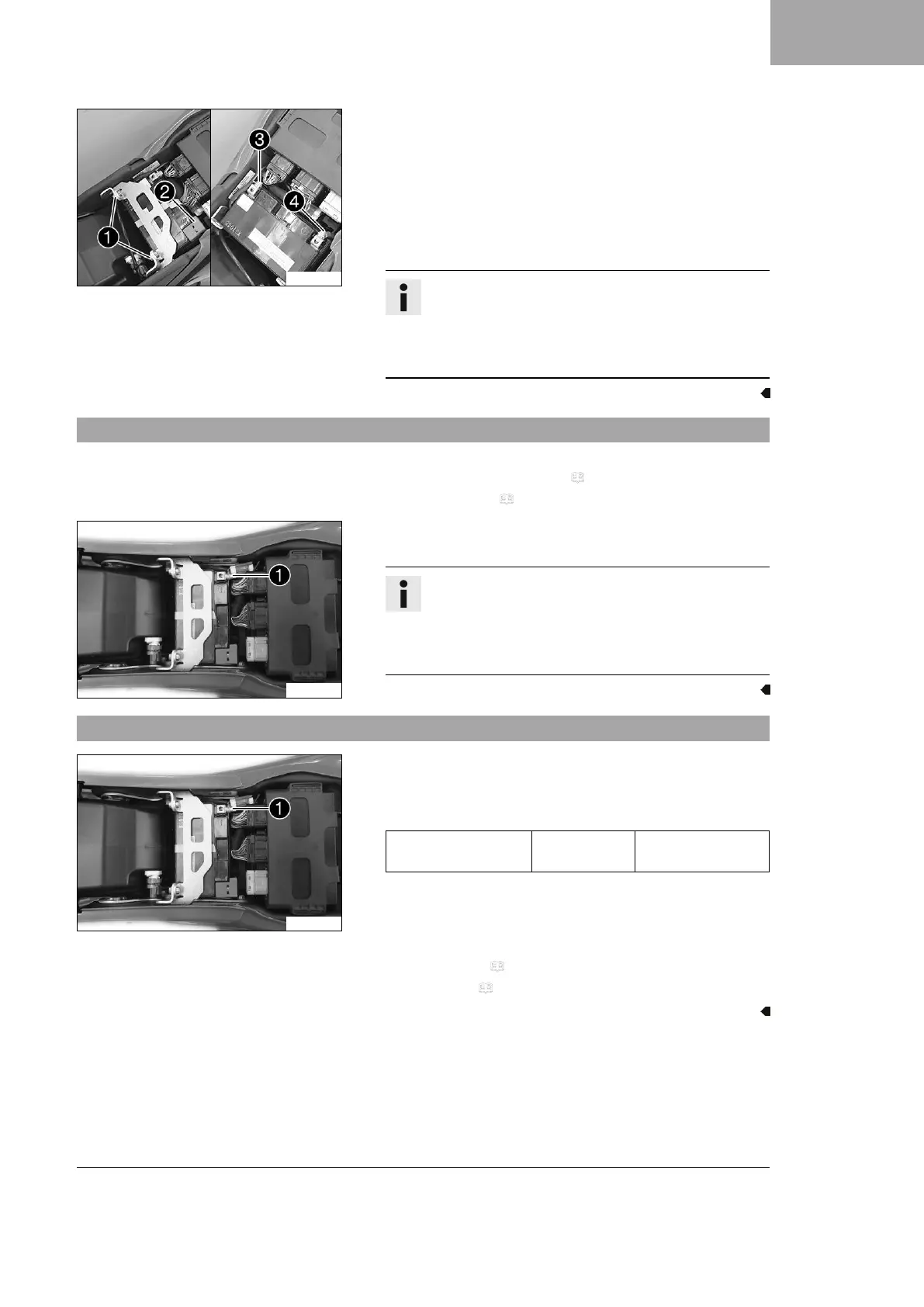

Main work
–
Remove screws
1
.
– Push the retaining bracket toward the rear and remove it.
–
Take off positive terminal cover
2
.
–
Disconnect negative cable
3
from the 12-V battery.
–
Disconnect positive cable
4
from the 12-V battery.
– Lift out the 12-V battery.
Info
Never operate the motorcycle with a discharged 12-V
battery or without a 12-V battery. In both cases, elec-
trical components and safety devices can be damaged.
The vehicle will therefore no longer be roadworthy.
3.4 Disconnecting the 12-V battery
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
– Remove the seat. ( p. 8)
D07481-10
Main work
–
Disconnect negative cable
1
of the 12-V battery.
Info
Never operate the motorcycle with a discharged 12-V
battery or without a 12-V battery. In both cases, elec-
trical components and safety devices can be damaged.
The vehicle will therefore no longer be roadworthy.
3.5 Connecting the 12-V battery
D07481-10
Main work
–
Position washer and negative cable
1
, and mount and
tighten the screw.
Guideline
Screw, battery termi-
nal
M6 4.5 Nm
(3.32 lbf ft)
Finishing work
– Mount the seat. ( p. 8)
– Set the clock. ( p. 19)
