KTM 690 SMC R 2021 User Manual

3 WORK
8

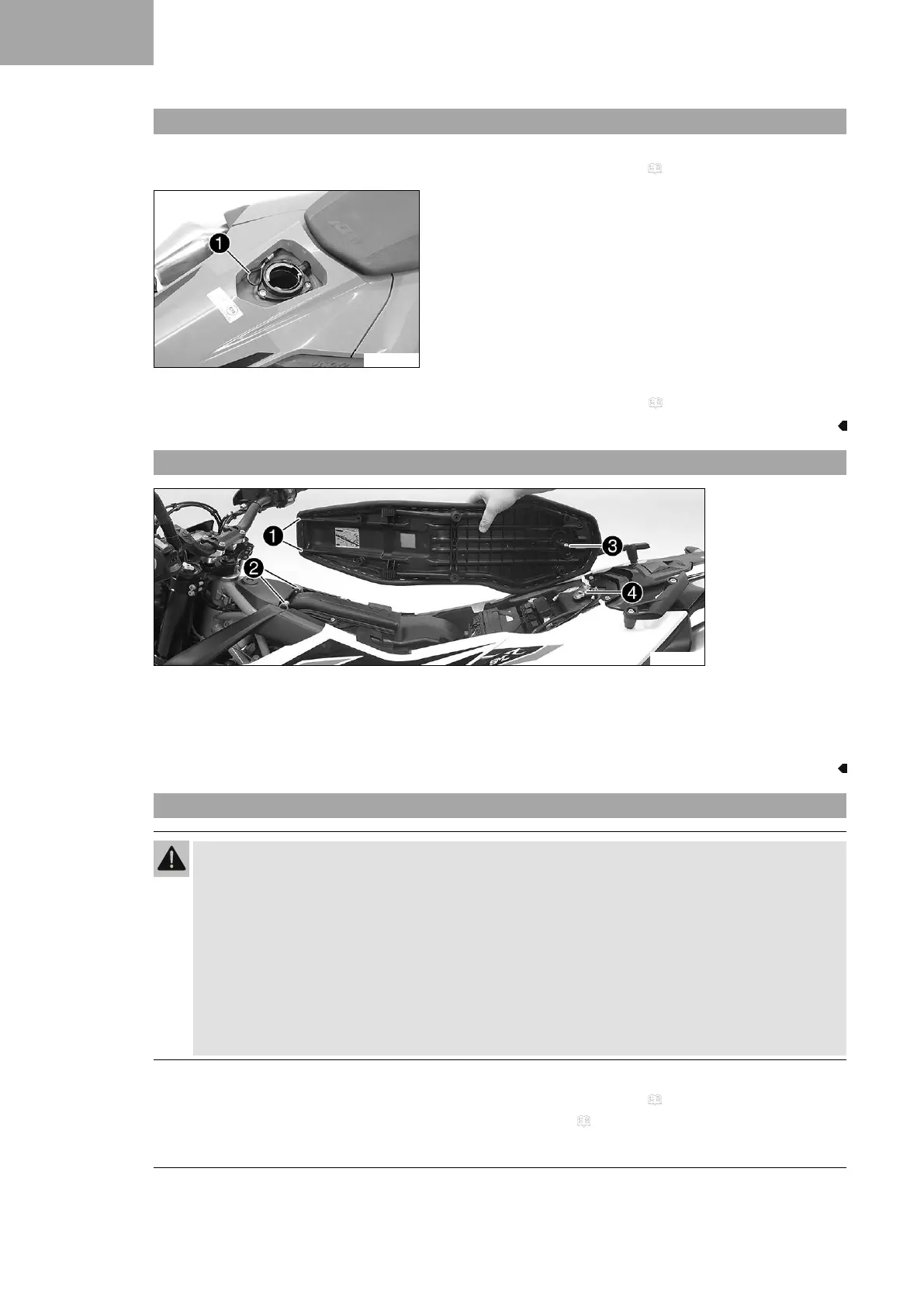

3.1 Removing the seat
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
S04383-10
Main work
–
Pull on loop
1
and raise the rear of the seat.
– Pull the seat back and lift it off.
Finishing work
– Close the fuel tank filler cap. ( p. 12)
3.2 Mounting the seat
S03282-10
–
Hook the seat using holding lugs
1
on to bushings
2
, lower the seat at the rear and push it forward.
–
Push locking pin
3
into lock housing
4
and push the back of the seat down until the locking pin locks in
place with an audible click.
– Check that the seat is correctly mounted.
3.3 Removing the 12-V battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep 12 V batteries out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Avoid contact with battery acid and battery gases.
– Keep sparks or open flames away from the 12 V battery.
– Only charge 12 V batteries in well-ventilated rooms.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
–
Remove the seat. ( p. 8)

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
