KTM 690 SMC R 2021 User Manual

SETUP 2
7
S03408-01
–

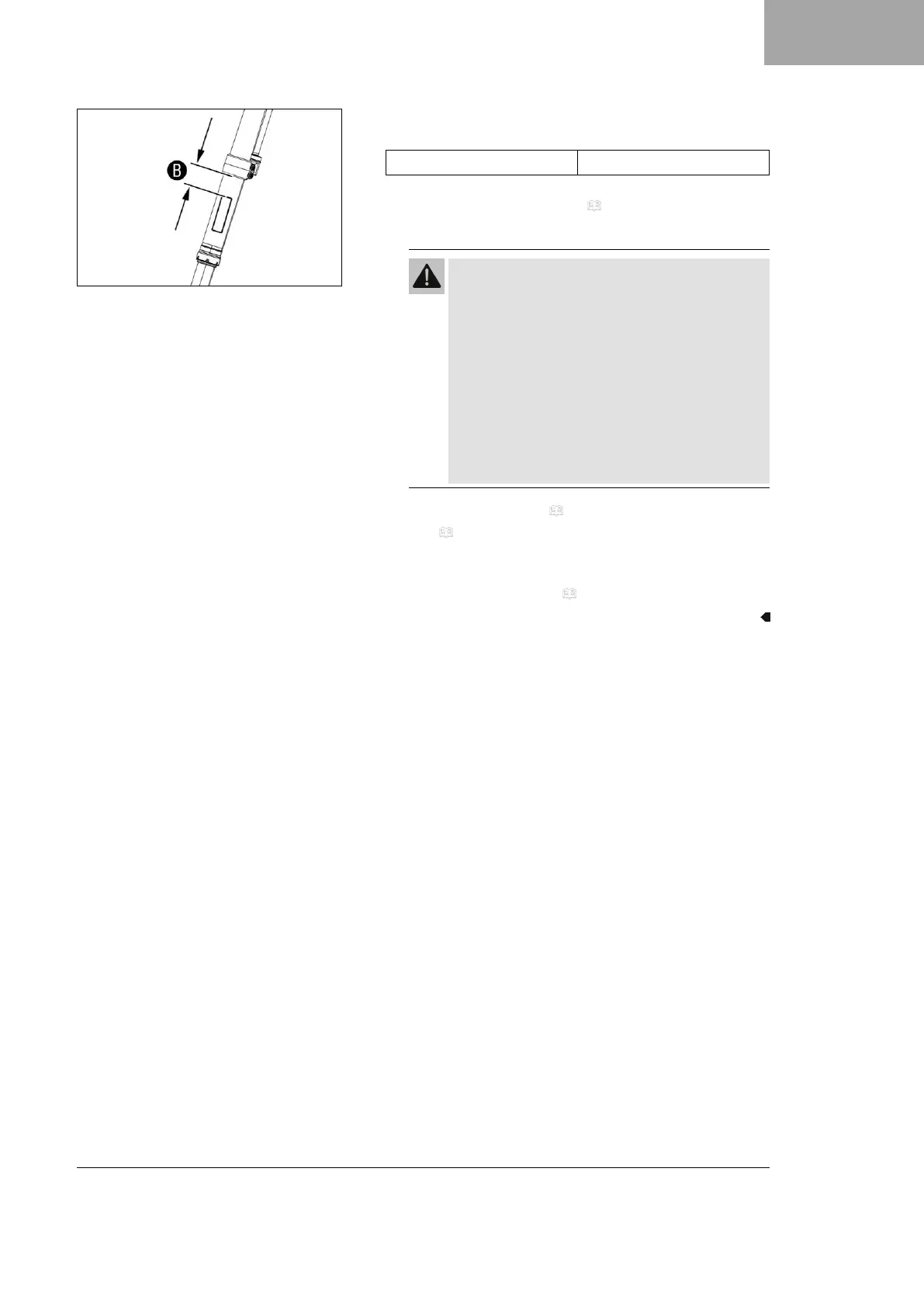

Mount the reflectors with distance
B
on the fork.
Guideline
Distance
B
for reflectors
100 mm (3.94 in)
Operation as a 2-seater
– Mount rear footrest bracket. ( p. 17)
Operation as a 1-seater (only if requested by customer)
Warning
Voiding of the government approval for road use and
the insurance coverage If the heel protector is fit-
ted instead of the footrest bracket, the vehicle no
longer conforms to the homologation.
The vehicle is homologated in the factory as 2-
seater.
– Set up the vehicle as standard as a 2-seater.
– If you set up the vehicle as a 1 seater, ensure
the change is entered in the registration papers
before preparing for use.
– Mount heel protector. ( p. 17)
– Refuel. ( p. 18)
– Prepare the vehicle according to the specifications in
KTM Dealer.net for handover to the customer.
– Set the kilometers or miles. ( p. 20)

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
