KTM 690 SMC R 2021 User Manual

WORK 3
11
Info
Follow the instructions of the charger and the manual.
– Disconnect the battery charger after charging the 12-V battery.
Guideline
The charging current, charging voltage, and charging time
must not be exceeded.
Recharge the 12-V battery
regularly when the motorcy-
cle is not being used
3 months
Finishing work
– Connect the 12-V battery. ( p. 9)
–
Mount the seat. ( p. 8)
– Set the clock. ( p. 19)

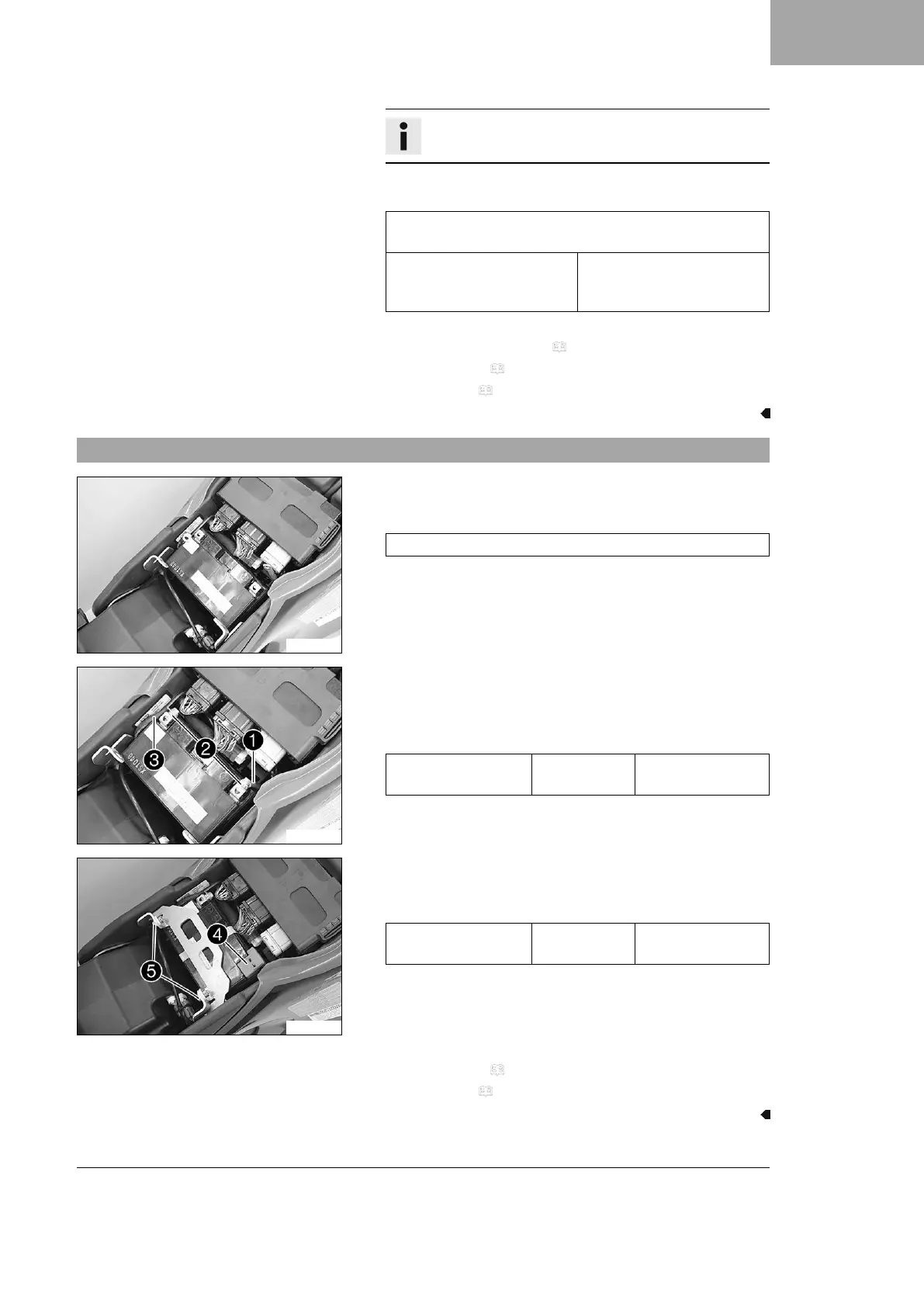

3.7 Installing the 12-V battery
S04391-01
Main work
– Insert the 12-V battery into the battery compartment with the
terminals facing to the rear.
12-V battery (YTZ10S)
S04392-10
–
Position positive cable
1
with washer
2
.
–
Position negative cable
3
with washer
2
.
– Mount and tighten the screw.
Guideline
Screw, battery termi-
nal
M6 4.5 Nm
(3.32 lbf ft)
S04393-10
–
Position positive terminal cover
4
.
–
Position retaining bracket and mount and tighten screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Mount the seat. ( p. 8)
– Set the clock. ( p. 19)

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
