3 WORK
16

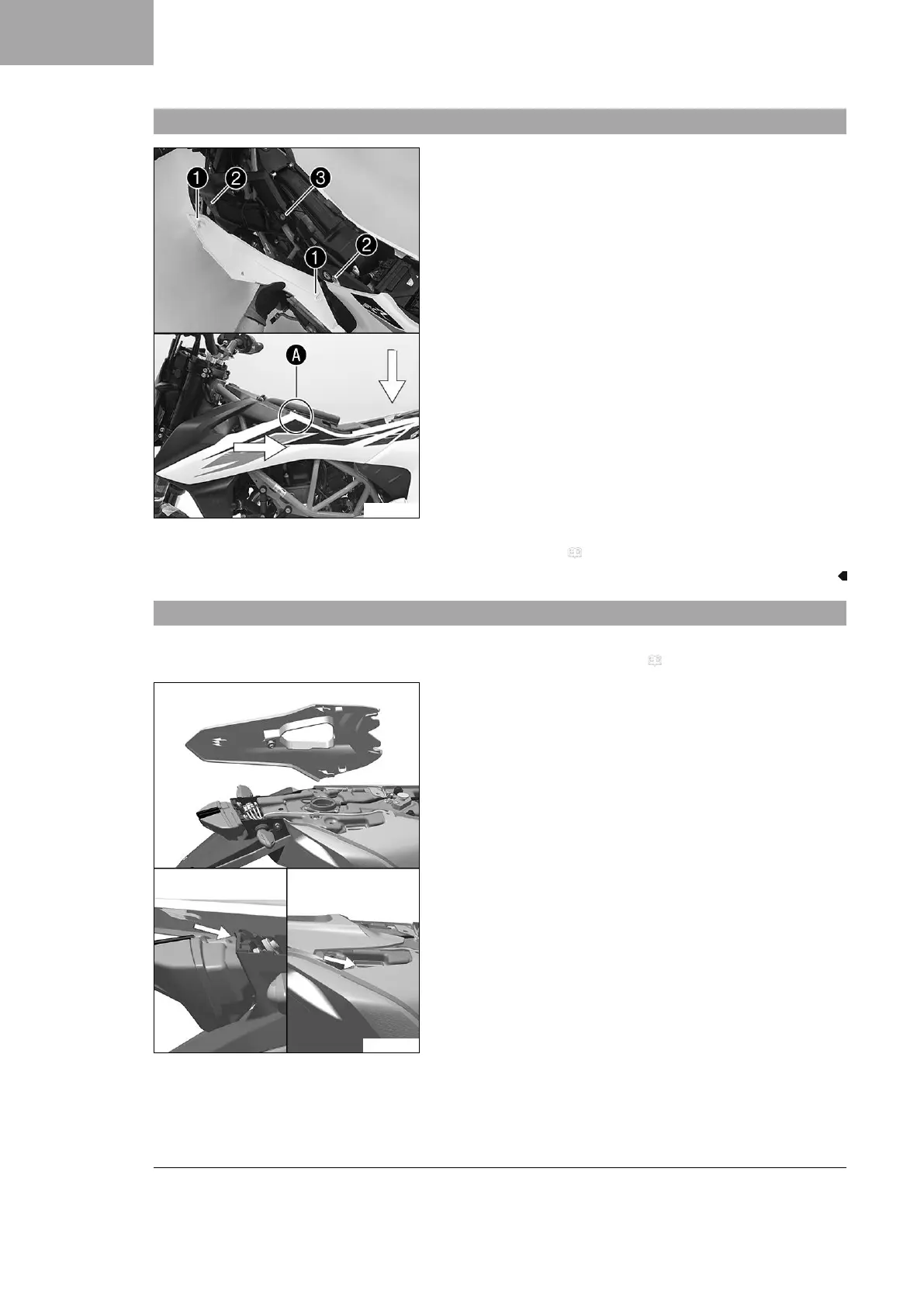

3.16 Mounting side cover
S03288-10
Main work
–
Position the left side cover using holding lugs
1
on bushings
2
and push towards the rear and, in the rear section, down-
ward.
–
Press the left side cover into the rubber bushing
3
in area
A
.
– Repeat these steps on the opposite side.
Finishing work
– Mount the seat. ( p. 8)
3.17 Fitting the rear fairing
Preparatory work
– Open the fuel tank filler cap. ( p. 12)
D07485-10
Main work
– Slip in the rear fairing and position it.

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
