KTM 690 SMC R 2021 User Manual

WORK 3
15

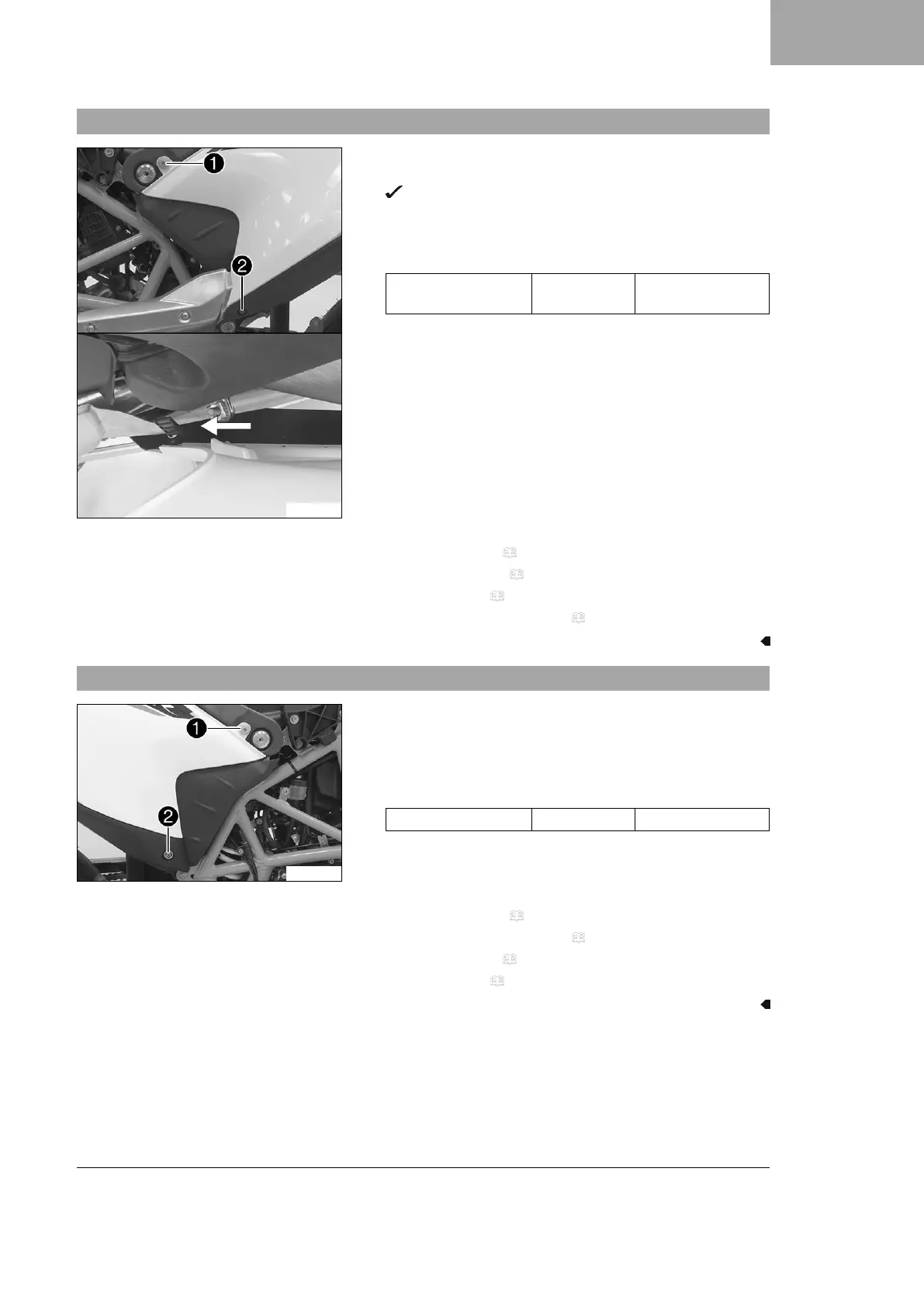

3.14 Installing the rear left side cover
R05345-10
Main work
– Mount the trim.
The trim engages in the bracket.
–
Mount and tighten screw
1
.
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
Finishing work
– Mount side cover. ( p. 16)
– Fit the rear fairing. ( p. 16)
– Mount the seat. ( p. 8)
– Close the fuel tank filler cap. ( p. 12)
3.15 Installing the rear right side cover
R05343-10
Main work
– Mount side cover.
–
Mount and tighten screw
1
.
–
Mount and tighten screw
2
with the bushing.
Guideline
Screw, seat support M6x12 5 Nm (3.7 lbf ft)
Finishing work
– Fit the rear fairing. ( p. 16)
– Close the fuel tank filler cap. ( p. 12)
– Mount side cover. ( p. 16)
– Mount the seat. ( p. 8)

KTM 690 SMC R 2021 Specifications

General

Displacement	692.7 cm³
Bore x Stroke	105 mm x 80 mm
Power	55 kW (74 hp)
Torque	73.5 Nm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Fuel System	Electronic Fuel Injection
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX with Pro-Lever linkage
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Seat Height	890 mm
Ground Clearance	237 mm
Fuel Tank Capacity	13.5 liters
Engine Type	Single cylinder, 4-stroke
Front Brake	Brembo four piston radial caliper, brake disc
Rear Brake	Brembo single-piston floating calliper, brake disc
ABS	Bosch 9.1 MP (incl. Supermoto ABS)
Weight (without fuel)	147 kg
