KTM 890 DUKE R User Manual

ELECTRICAL SYSTEM 16
101

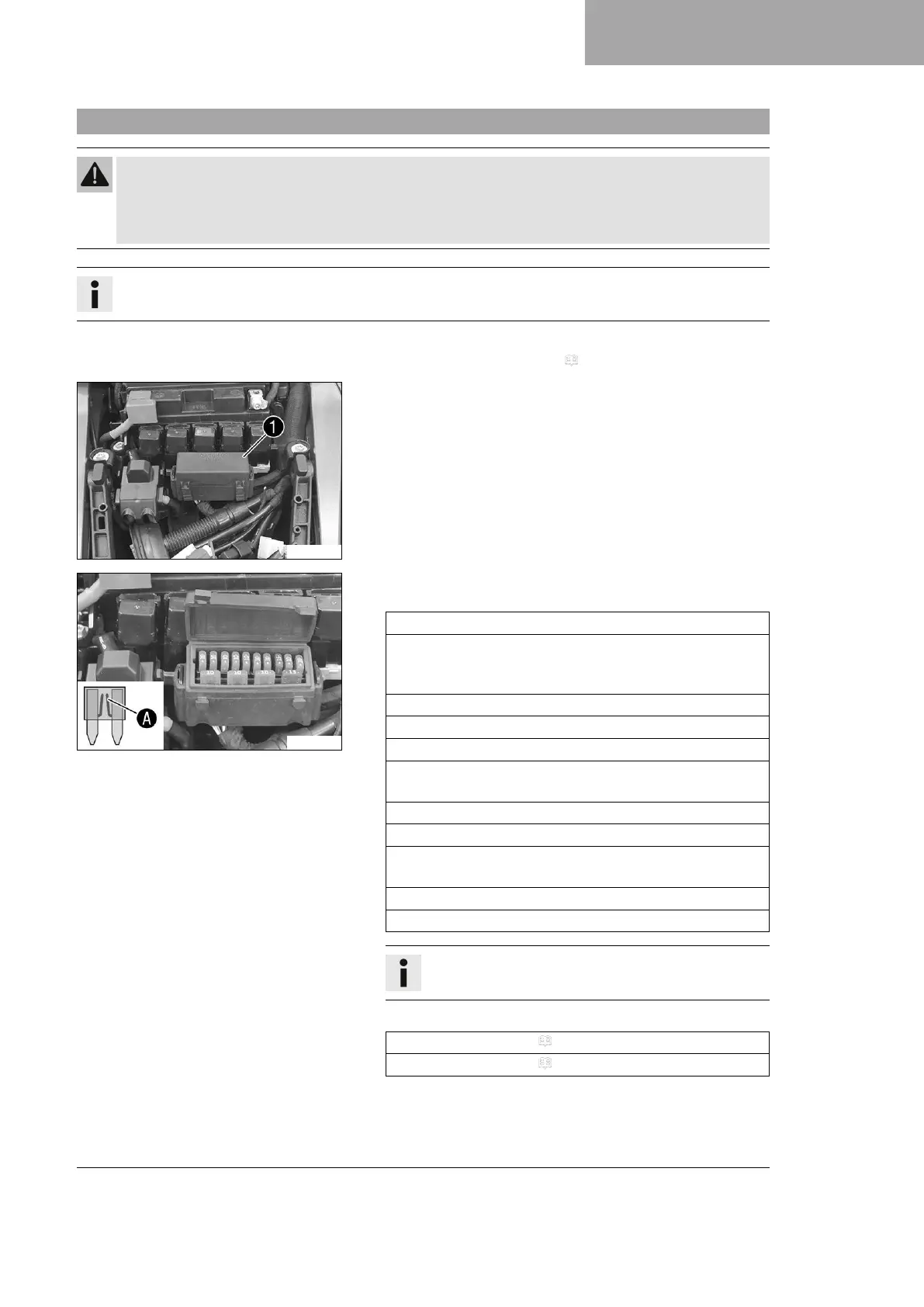

16.7 Changing the fuses of individual electrical power consumers
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the passenger seat. ( p. 71)
F02768-10
Main work
–
Open fuse box cover
1
.
F02769-10
– Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - ignition
Fuse 2 - 10 A - ignition, engine control unit, electronic fuel
injection, fuel vapor retention system, lambda sensor, immo-
bilizer/alarm system
Fuse 3 - 10 A - fuel pump
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - horn, combination instrument, brake light
Fuse 6 - 10 A - high beam, low beam, position light, tail
light, license plate lamp
Fuse 7 - 10 A - ACC1
Fuse 8 - 15 A - ACC2, HCU (optional)
Fuse 9 - 10 A - ABS control unit, diagnostics connector, 5D
sensor, TPMS (function optional)
Fuse 10 - 10 A - light control unit
Fuse SPARE - 10 A/15 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
A
.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 130)
Fuse (75011088015) ( p. 130)

KTM 890 DUKE R Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Seat Height	834 mm
Dry Weight	166 kg
Front Suspension	WP APEX 43
Traction Control	MTC (Motorcycle Traction Control)
Power	121 hp (90 kW) @ 9, 250 rpm
Torque	99 Nm
Fuel Capacity	14 L
Rear Suspension	WP APEX Monoshock
Rear Brake	240 mm disc
ABS	Bosch 9.1 MP (Cornering ABS and Supermoto ABS)
Wheelbase	1, 482 mm
Front Brakes	2 x Brembo Stylema 4-piston radial calipers, 320 mm discs
Frame	Chromium-Molybdenum steel trellis frame
