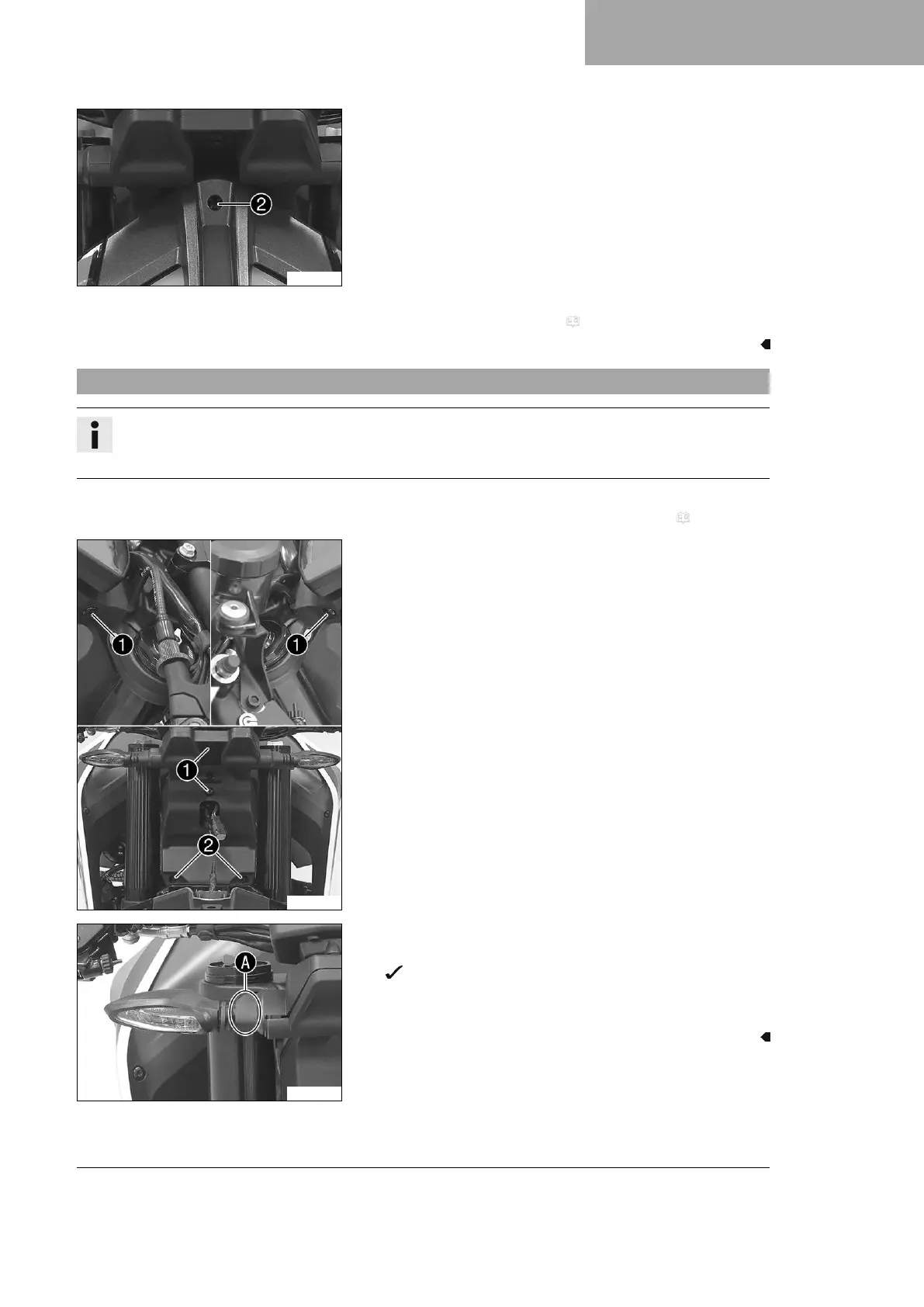

16.10 Removing the cover of the headlight mask rack
Info
The cover of the headlight mask rack must be removed in order to gain access to the ACC1 and ACC2
power supply.
Preparatory work
– Loosen the headlight mask with the headlight. ( p. 102)
F02772-10
Main work
–
Remove screws
1
.
–
Remove screws
2
.
F02773-10
–
Hold turn signal in the area
A
and carefully press against the
direction of travel.
The cover is detached as illustrated.
– Repeat the operation on the opposite side.
– Take off the cover.
