KTM 890 DUKE R User Manual

16 ELECTRICAL SYSTEM
104

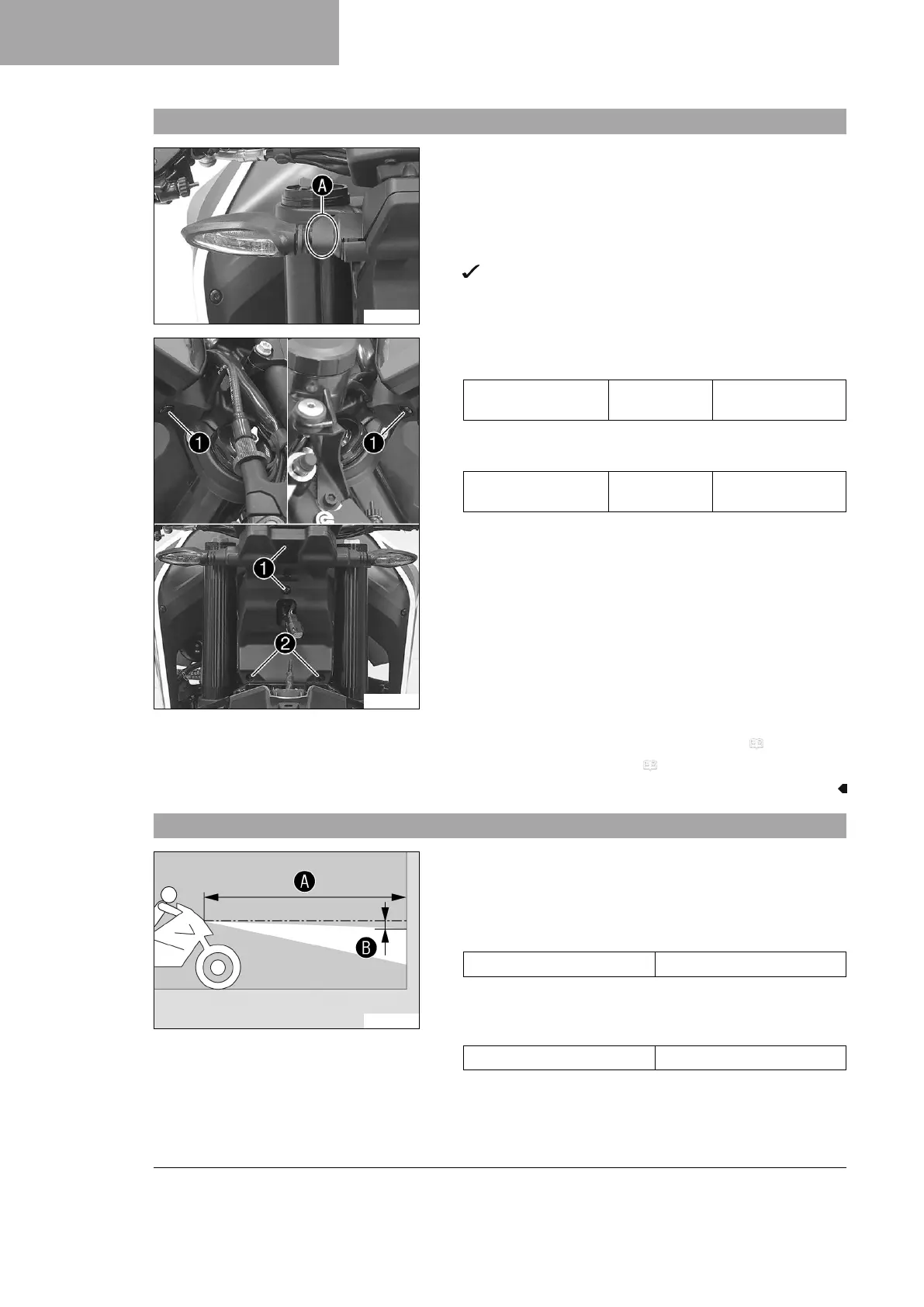

16.11 Installing the cover of the headlight mask rack
F02773-10
Main work
– Position cover by guiding the plug-in connector of the head-
light through the opening.
–
Hold turn signal in the area
A
and carefully press against the
direction of travel, while pressing the cover tight at the same
time.
The cover engages with an audible click.
– Repeat the operation on the opposite side.
F02772-10
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Mount and tighten screws
2
.
Guideline
Screw, headlight EJOTPT
®
K50x14
3 Nm (2.2 lbf ft)
Finishing work
– Mount the headlight mask with the headlight. ( p. 102)
– Check the headlight setting. ( p. 104)
16.12 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of
a light wall and make a marking at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
A
from the wall and switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.

KTM 890 DUKE R Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Seat Height	834 mm
Dry Weight	166 kg
Front Suspension	WP APEX 43
Traction Control	MTC (Motorcycle Traction Control)
Power	121 hp (90 kW) @ 9, 250 rpm
Torque	99 Nm
Fuel Capacity	14 L
Rear Suspension	WP APEX Monoshock
Rear Brake	240 mm disc
ABS	Bosch 9.1 MP (Cornering ABS and Supermoto ABS)
Wheelbase	1, 482 mm
Front Brakes	2 x Brembo Stylema 4-piston radial calipers, 320 mm discs
Frame	Chromium-Molybdenum steel trellis frame
