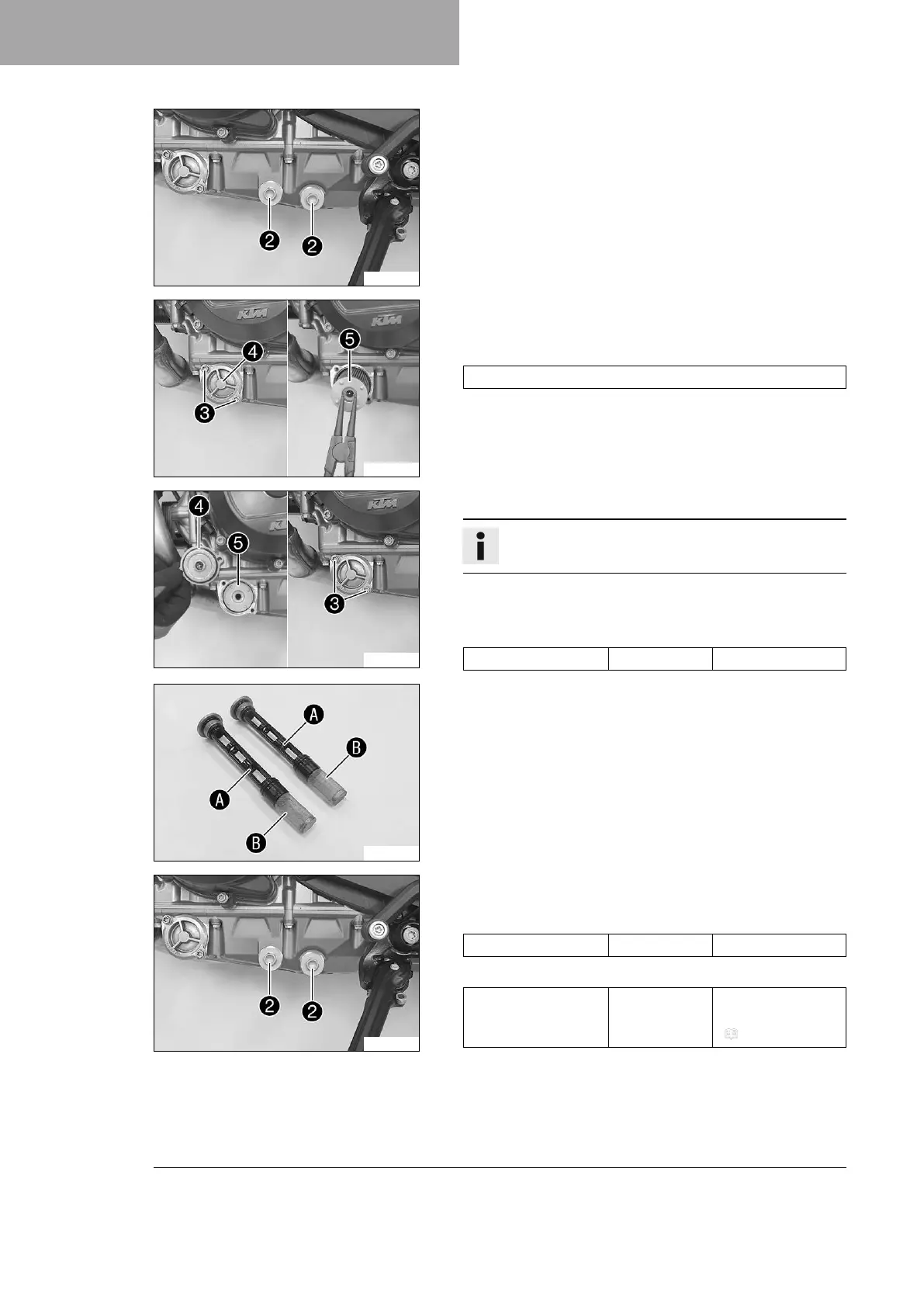

19 SERVICE WORK ON THE ENGINE
116
V01235-10
–
Remove oil drain plugs
2
along with the magnets, the O-
rings, and the oil screens.
V01236-10
–
Remove screws
3
. Take off oil filter cover
4
with the O-
ring.
–
Pull oil filter
5
out of the oil filter housing.
Lock ring plier (51012011000)
– Allow the engine oil to drain completely.
– Thoroughly clean the parts and the sealing surfaces.
V01237-10
–
Insert new oil filter
5
.
Info
Only insert the oil filter by hand.
–
Oil the O-ring of the oil filter cover. Position oil filter cover
4
.
–
Mount and tighten screws
3
.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
V01238-10
–
Thoroughly clean magnets
A
and oil screens
B
of the oil
drain plugs.
V01235-10
–
Mount the oil drain plugs
2
with magnets and new seal rings,
and tighten.
Guideline
Plug, oil screen M20x1.5 20 Nm (14.8 lbf ft)
– Fill up with engine oil at the clutch cover.
Engine oil 2.8 l (3 qt.) Engine oil
(SAE 10W/50)
( p. 137)
