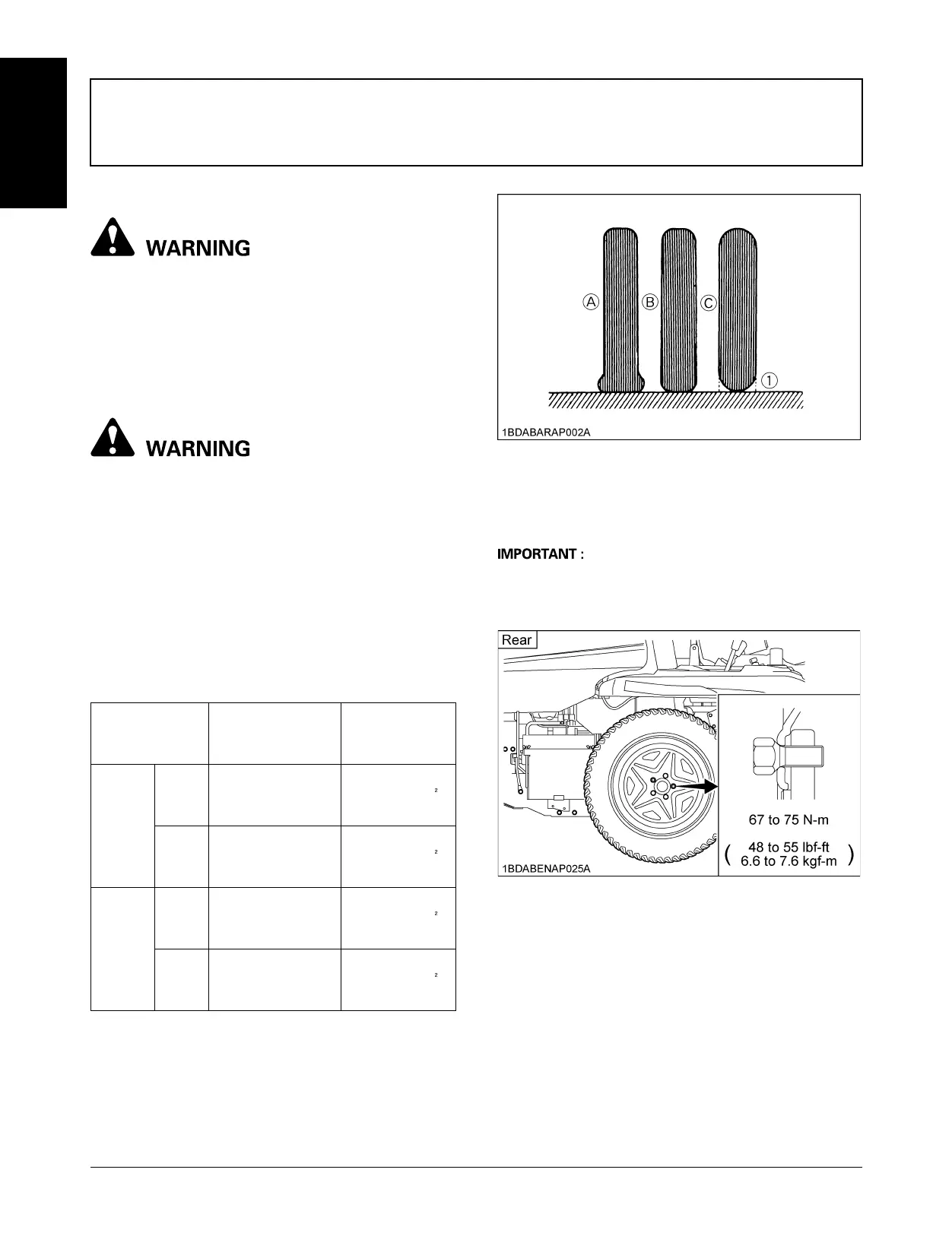

32 TIRES AND WHEELS
ENGLISH
TIRES AND WHEELS
TIRES
To avoid serious injury or death:
A Do not attempt to mount a tire. This must be
done by a qualified person with the proper
equipment.
A Always maintain the correct tire pressure.
Do not inflate tires above the recommended
pressure shown in the Operator's Manual.
A Inflation pressure in front tires rises quickly
when using compressed air.
To avoid serious injury or death:
A Never operate machine with a loose rim, wheel,
or axle.
A Whenever bolts are loosened, retighten to
specified torque.
A Check all bolts frequently and keep them
tightened.
BInflation Pressure
Though the inflation pressure is factory-set to the
prescribed level, it naturally drops slowly in the course of
time. Thus, check it and inflate as necessary.
WHEELS
A When re-fitting a wheel, tighten the wheel bolt to the
following torques then recheck after traveling 200 m
(200 yards) changing directions several times.
Wheels with beveled or tapered holes:
Use the tapered wheel bolt.
Tire sizes
Recommended
Inflation Max.
Pressure
ZD1011
Front
13 x 5.0 - 6
Smooth pneumatic
172 kPa
(1.75 kgf/cm ,
24.9 psi)
Rear
24 x 9.5 - 14
Low profile type
83 kPa
(0.84 kgf/cm ,
12.0 psi)
ZD1021
Front
13 x 6.5 - 6
Smooth pneumatic
172 kPa
(1.75 kgf/cm ,
24.9 psi)
Rear
24 x 12 - 14
Low profile type
83 kPa
(0.84 kgf/cm ,
12.0 psi)
(1) Ground (A) "INSUFFICIENT"
(B) "NORMAL"
(C) "EXCESSIVE"
