MAINTENANCE54
ENGLISH

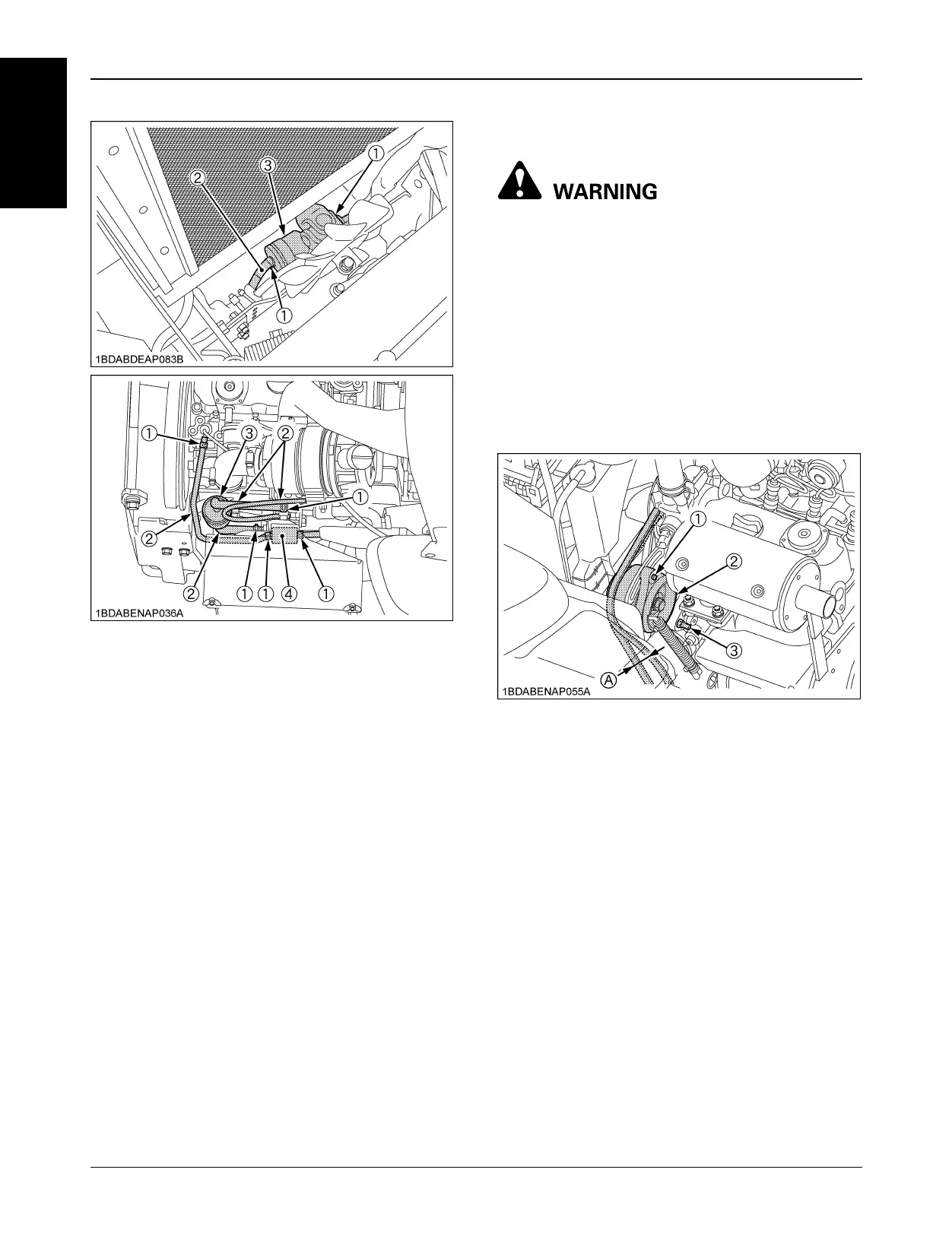

BAdjusting Fan Drive Belt Tension
To avoid serious injury or death:
A Be sure to stop the engine and remove the key
before checking belt tension.
If the fan drive belt becomes loose, the engine may
overheat. To adjust, loosen bolts and move the alternator
outward to tighten the belt. After adjustment, securely
tighten the bolts.
Moderate belt tension:
The belt must deflect approx. 10 mm (0.4 in.) when the
center of the belt is depressed with finger pressure of 98N
(10kgf, 22 lbs.).
(1) Pipe clamps
(2) Fuel line
(3) Fuel filter
(4) Fuel pump
(1) Tension bolt
(2) Alternator
(3) Adjusting bolt
(A) 10 mm (0.4 in.)
