Follow the steps below to mount the antenna to
the vehicle’s roof.
a. Apply appropriate construction adhesive to
the bottom of the antenna’s three mounting
plates across all of the holes.
b. At the mounting location you chose in “Plan
the Installation” on page 4, place the antenna
on the centerline of the roof, so that the arrow
on the antenna’s front mounting plate points
towards the front of the vehicle (see Figure 7).
c. Attach the three antenna mounting plates to
the roof using 15 fasteners appropriate for the
roof’s construction (see Figure 8).
d. Seal all fasteners with silicone sealant or
equivalent (see Figure 9).

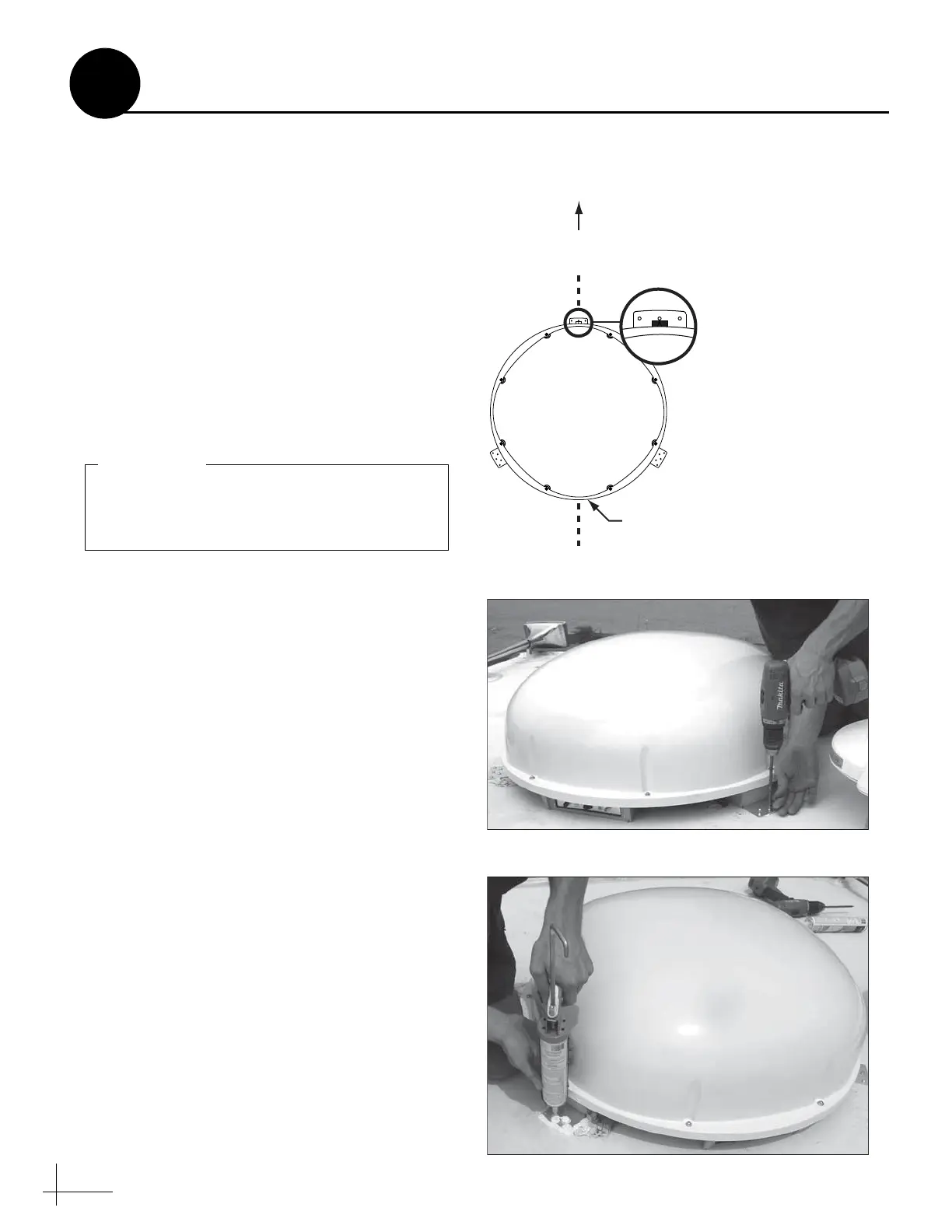

Figure 7: Antenna Orientation
Front of Vehicle
Front Mounting
Plate/Forward
Arrow
Baseplate
Connectors
Antenna,
Top View
Vehicle
Centerline
Figure 8: Attaching the Mounting Plates
Due to the variation in RV roof construction,
consult with the RV manufacturer to
determine the safest fastening method.
IMPORTANT!
Figure 9: Sealing the Fasteners
Mount the Antenna
