KYMCO ZING 150 - Rear Wheel Removal

12. REAR WHEEL/BRAKE/SUSPENSION
12
-
3

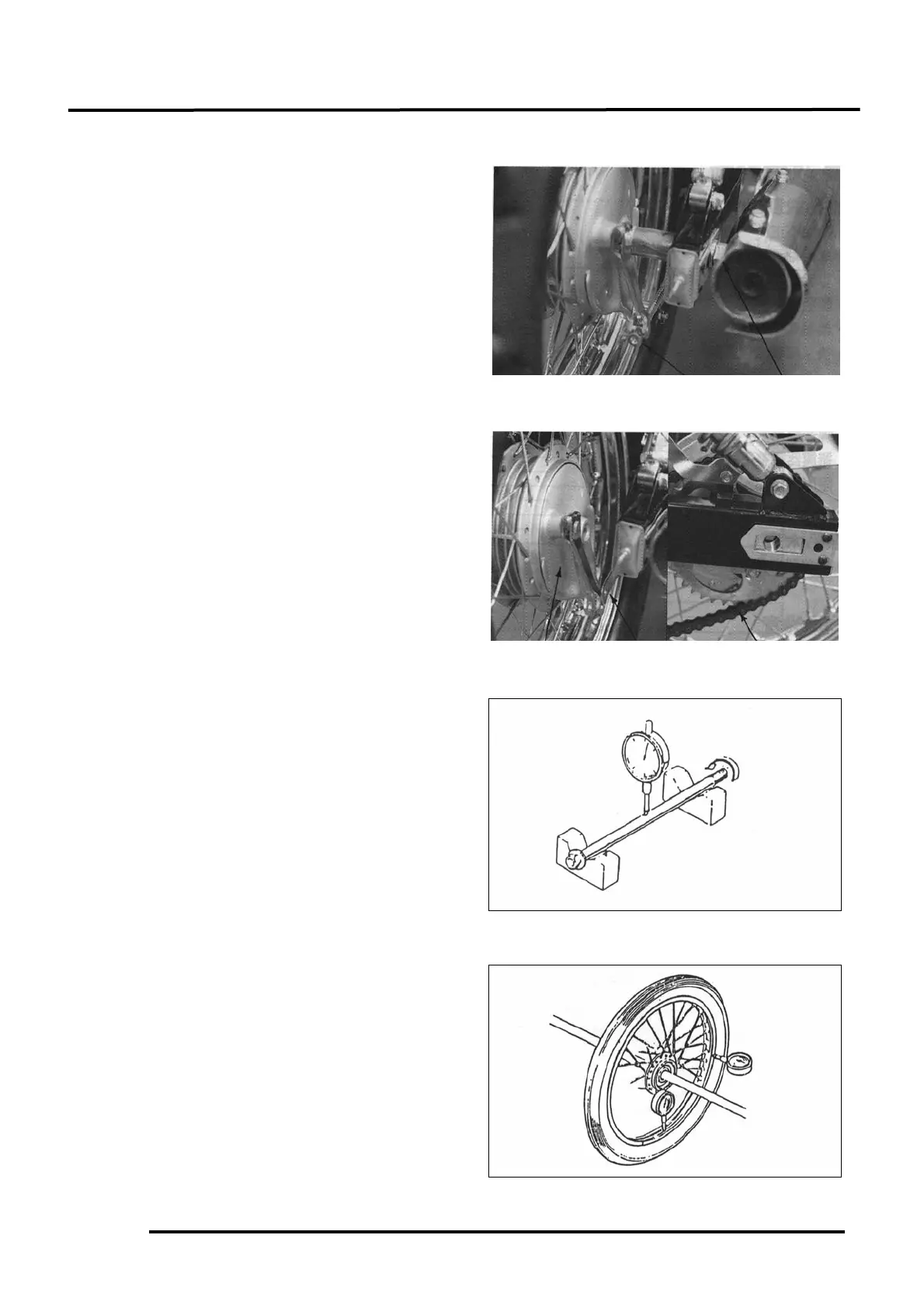

REAR WHEEL
REMOVAL
Remove the rear axle nut.
Remove the rear brake adjusting nut.
Remove the rear brake panel fixing arm bolt.
Remove the bushing.
Remove the rear brake panel.
Remove the drive chain.
Remove the rear wheel.
INSPECTION
Set the rear axle in V blocks and measure the
runout with a dial gauge.
Service Limit: 0.2mm
Place the rear wheel in a turning stand and
measure the rim runout.
Service Limits:
Axial: 2.0mm replace if over
Radial: 2.0mm replace if over
Check the wheel spoke wires for looseness.
Rear Brake Adjusting Nut
Rear Axle Nut
Rear Brake Panel
Fixing Arm
Bolt
Drive Chain
